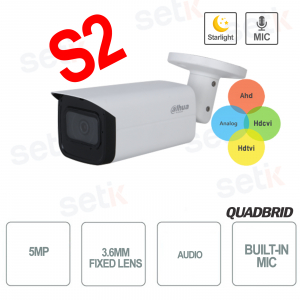

DAHUA 4IN1 5MEGAPIXEL FIXED CAMERA - STARLIGHT IR 80METERS AUDIO WDR - BUILT-IN MICROPHONE - S2 VERSION
Dahua outdoor camera 4in1 S2 VERSION4in1: HDCVI / HDTVI / AHD / ANALOG (Switchable) - 5Megapixel 5MP - 3.6mm Fixed Lens
CMOS sensor Starlight technology - Smart IR 80MT - WDR 120dB
Audio Input + Built-in Microphone - Power supply NOT included - 24 month warranty
Product details
- 4in1 bullet camera - Dahua
- 4 Technologies in 1: HDCVI / HDTVI / AHD / ANALOG (Switchable)
- Switchable technologies through dip switches on coaxial cable
- Resolution: 5Megapixel 5 MP
- 1 / 2.7 "CMOS image sensor with Starlight technology
- Starlight technology: Color night vision
- 3.6mm fixed lens
- Functions: Day / Night (ICR), BLC, HLC, AGC
- WDR 120dB
- OSD Multilingual menu
- 1 Audio input + built-in microphone
- IP67 protection (Rain / Diving)
- Quality Smart IR illuminator with a maximum range of 80 meters.
- IP67 protection (Rain / Diving)
- Quality Smart IR illuminator with a maximum range of 80 meters.
- 1 BNC high definition video output & 1 CVBS video output (dip switch)
- 12V DC power supply not included
- Suitable for outdoor and indoor environments
- Suitable for outdoor and indoor environments
- Dimensions 244.1 mm × 90.4 mm × 90.4 mm (9.61 "× 3.56" × 3.56 ")
- 24 months warranty
Data sheet
| Model |
HAC-HFW2501TU-A |
| Room | |
| Image Sensor | 1 / 2.7 "CMOS |
| Effective Pixels | 2880 (H) × 1620 (V), 5MP |
| Scanning System | Progressive |
| Electronic Shutter Speed |
PAL: 1/3 s – 1 / 100,000 s |
| Min. Illumination |
0.001 Lux / F1.6, 30IRE, 0Lux IR on |
| S / N Ratio | > 65 dB |
| IR Distance | 80 m (262.47 ft) |
| IR On / Off Control | Auto / Manual |
| IR LEDs | 4 |
| Lens | |
| Lens Type | Fixed-focal |
| Mount Type | M12 |
| Focal Length | 3.6 mm |
| Max. Aperture | F1.6 |
| Field of View | 109 ° × 92 ° × 48 ° |
| Iris Type | Fixed iris |
| Close focus distance |
1.6 m |
| Video | |
| Resolution |
5M (2880 × 1620); 4M (2560 × 1440); 1080P (1920 × 1080); 960H (960 × 576/960 × 480) |
| Frame rate | CVI: PAL: 5M @ 25 fps; 4M @ 25 fps; 1080P @ 25 fps NTSC: 5M @ 25 fps; 4M @ 30 fps; 1080P @ 30 fps AHD: PAL: 4M @ 25 fps; NTSC: 4M @ 30fps TVI: PAL: 4M @ 25fps; NTSC: 4M @ 30fps CVBS: PAL: 960H; NTSC: 960H |
| Video Output |
1-channel BNC high definition video output / CVBS video output (DIP switch) |
| Day / Night | Auto switch by ICR |
| OSD Menu | Multi-language |
| BLC Mode | BLC / HLC / WDR / HLC-Pro |
| WDR | 120 dB |
| Gain control | Auto / Manual |
| Noise reduction | 2D / 3D |
| White balance | Auto / Manual |
| Smart IR | Yes |
| Mirror | Off / On |
| Privacy Masking | Off / On (8 areas, rectangle) |
| Certification | |
| Certifications |
CE (EN55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN55024: 2010 + A1: 2015, EN 55035: 2017, EN50130-4: 2011 + A1: 2014, EN 62368- 1: 2014 + A11: 2017) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1 + CAN / CSA C22.2 No.60950-1) |
| Port | |
| Audio Interface | One channel built-in mic |
| Video Output | Video output choices of CVI / TVI / AHD / CVBS by one BNC port (DIP Switch) |
| Power | |
| Power Supply | DC 12V ± 30% |
| Power consumption | Max 9.6W (12V DC, IR on) |
| Environmental | |
| Operating Conditions |
–40 ° C to + 60 ° C (–40 ° F to + 140 ° F); <95% (noncondensation) |
| Strorage Conditions | –40 ° C to + 60 ° C (–40 ° F to + 140 ° F); <95% (noncondensation) |
| Ingress Protection | IP67 |
| Construction | |
| Casing | Metal throughout the whole casing |
| Dimensions | 244.1 mm × 90.4 mm × 90.4 mm (9.61 "× 3.56" × 3.56 ") |
| Net Weight | 0.77 kg (1.70 lb) |
| Gross Weight |
1.04 kg (2.29 lb) |
Further details
 |
HD-CVI is the new technology in the world of video surveillance. By simply replacing the devices (Cameras and DVRs) in the analog infrastructure, the resolution can reach up to 1920X1080 (FULL-HD). In this way the same results can be obtained as in the IP world but with a high cost containment. Warning: Analog and IP cameras are NOT compatible with HD-CVI DVRs, and HD-CVI cameras are not compatible with Analog DVRs. |
 |
This camera is a QUADRIBRID (4 Integrated Technologies) Switch Technologies: The camera can switch from HDCVI to HDTVI, AHD or Analog via dip switch on coaxial cable |
 |
5MP resolution, means 12 times the resolution of a common D1 camera : |
 |
This camera features 3.6mm Fixed lens |
|
|
1 / 2.7 "CMOS sensor with STARLIGHT technology. Low brightness, visibility at 0.0001Lux, color vision even in night mode With this CMOS sensor it is possible to have color shots even in night mode. Normally, when entering night mode, the color vision becomes black / white. With the SENSOR present, night shots will be sharp and in color
|
 |
Infrared illuminator with approximate maximum range of 80Mt |
 |
ULTRA WDR up to 120dB WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light / shadow contrast. Fundamental in the case of shots from the inside out, license plates, shaded spots or all situations where there is no homogeneity of light.  |
|
|
This camera has 1 audio input + built-in microphone |
 |
Allows you to adapt the lens to Night / Day vision
|
 |
The IR CUT FILTER is a mechanical filter that allows a correct display of images in daylight viewing conditions. It filters the typical infrared frequencies thus improving the image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.  |
 |
BLC (Back Light Compensation) is one of the 3 possible steps in the management of images with contrast, typical situations are (entrances or exits from car parks, plates, special lights, entrances with shots from inside to outside, etc. light is one of the most complex operations possible, the BLC function allows a discreet adaptation to these situations |
 |
AGC is an integrated signal amplifier that allows vision even in critical conditions. It is automatic and does not require specific settings. |
 |
Protection level IP67 (Dust / Diving) |
 |
12VDC power supply not included  |
 |
This product is covered by a 24 month warranty. |
