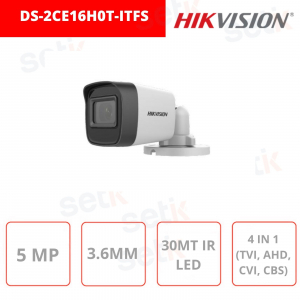

Mini Bullet Camera 3.6mm 5 MP Exir 2.0 4in1 IP67 - DS-2CE16H0T-ITFS - Hikvision

Mini Bullet Camera 3.6mm 5 MP Exir 2.0 4in1 IP67 - DS-2CE16H0T-ITFS - Hikvision
-35%

Hikvision DS-2CE16H0T-ITFS 5MP outdoor mini bullet camera 5Megapixel, 4in1 Video Output (TVI / CVI / AHD / CVBS) 3.6mm lens, 5MP CMOS sensor. Smart IR illuminator up to 30M with EXIR 2.0 technology, DNR, DWDR, Day / Night (ICR), AGC, Audio over coaxial cable, built-in mic, Hikvision-c protocol, IP67 protection.


HIKVISION 4K TURBO HD IN PROMO! DISCOVER NOW!


Reference: DS-2CE16H0T-ITFS(3.6mm)

Brand: Hikvision

EAN: 6954273692537

FIND INSTALLER

€101.50

€156.16 -35%
taxes included
Tax included
  Hurry up! Only a few pieces left in our warehouse!
 Last items in stock
discover the available quantity

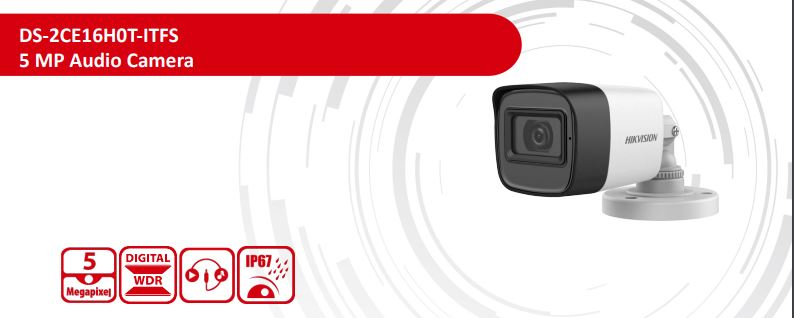

DS-2CE16H0T-ITFS | HIKVISION 5MP CMOS MINI BULLET CAMERA 3.6MM

Made by Hikvision
Hikvision 4in1 Mini Bullet Camera (TVI / CVI / AHD / CVBS)
Resolution: 5 MP 5Megapixel - 3.6mm lens - CMOS sensor
30M Smart IR Illuminator with EXIR 2.0 Technology - Switchable Video Output - Day / Night (ICR) - AGC - BLC - DWDR - IP67 Protection
Power supply NOT included - Audio over coaxial cable, integrated microphone - 24 month warranty
4in1 technology:

Tecnologia Quadribrida

QUADRIBRIDA (4 Integrated Technologies)
These cameras are at the same time Analogue , Ahd , HDCVI and HDVI .

Resolution:
This camera features a resolution of 5MP 5 Megapixel
5 MP CMOS image sensor
Optics:
This camera features 3.6mm lens

IR Infrared Illuminator:
IR Infrared illuminator for better night vision. Range up to 30M

This camera is also equipped with SMART IR technology.
Through this technology , the light emitted by the LEDs is adapted according to the framed object.

Smart IR technology

EXIR 2.0 TECHNOLOGY

This technology remedies the classic disturbances of the traditional IR illuminator.

In detail:

1) NO IR REFLEX OR BLEEDING:
By having the IR LEDs positioned separately from the camera lens, possible internal IR reflections and IR bleeding are completely eliminated, a serious problem on dome cameras due to the presence of the glass dome.

2) BEST IR COVERAGE:
Usually, the IR is integrated into a circular apparatus with various LEDS around the lens.
This very often resulted in an overexposed circular area in the center of the image and underexposed corners due to uneven IR coverage. The rectangular EXIR LEDs provide a much more even coverage across the entire image, eliminating this issue.


3) FEWER PROBLEMS WITH SPIDERS / INSECTS:
Spiders and other insects tend to be attracted to the heat of the hottest IR LEDS in non-EXIR cameras. This problem decreases with EXIR cameras, even more so with EXIR flat-faced cameras, on which the contact surfaces are significantly smaller.

Day / Night:
Allows you to adapt the lens to night / day vision, and the relative automatic management of the IR illuminator, when present.

IR CUT FILTER (ICR):
Mechanical filter that allows correct viewing of images in daytime viewing conditions. It filters the typical infrared frequencies thus improving the image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.
Immagine esempio IR CUT FILTER
BLC (Back Light Compensation):
is one of the 3 possible steps in the management of images with contrast, typical situations are (entrances or exits from car parks, plates, special lights, entrances with shots from inside to outside, etc.) light compensation is one of the most complex possible, the BLC function allows a fair adaptation to these situations


Click to enlarge

AGC (Automatic Gain Control):
integrated signal amplifier that allows viewing even in critical conditions. It is automatic and does not require specific settings.
Built-in audio and microphone:

Questo DVR presenta ingressi / uscite audio

This camera features built-in microphone and audio

D-WDR (Digital Wide Dynamic Range):
Software solution of the more powerful WDR integrated in the DSP, exactly as it happens for the digital zoom compared to the Optical Zoom, it is a software simulation of emulation of the WDR technology, however extremely useful in circumstances of strong contrast.

IP67 protection - outdoor:
This camera has IP67 (dust / diving) protection. Suitable for outdoor environments.

Diet:
A 12 VDC ± 25% power supply is required for the operation of this camera

Data sheet

DS-2CE16H0T-ITFS
Room
Image Sensor 5 MP CMOS image sensor
Signal System PAL / NTSC
Resolution 2560 (H) × 1944 (V)
Min Illumination 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Time PAL: 1/25 s to 1/50,000 s NTSC: 1/30 s to 1/50,000 s
Lens 3.6 mm
Field of view horizontal FOV: 80.1 °, vertical FOV: 63.7 °, diagonal FOV: 105.9 °
Lens Mount M12
Day & Night ICR
Angle Adjustment Pan: 0 to 355 °, Tilt: 0 to 75 °, Rotation 0 to 355 °
Audio Built-in mic
WDR (Wide Dynamic Range) Digital WDR
Frame Rate

TVI: 5MP @ 20fps, 4MP @ 30fps, 4MP @ 25fps, 1080P @ 30fps, 1080P @ 25fps

CVI: 4MP @ 30fps, 4MP @ 25fps

AHD: 5MP @ 20fps, 4MP @ 30fps, 4MP @ 25fps

CVBS: PAL / NTSC

Menu
Image Mode STD / HIGH-SAT
AGC Yes
D / N Mode Auto / Color / BW (Black and White)
White Balance Auto / Manual
AE (Auto Exposure) Mode DWDR / BLC / HLC / Global
Noise Reduction 2D DNR
Language English
Functions Brightness, Sharpness, Mirror, Smart IR
Interface
Video Output

Switchable TVI / AHD / CVI / CVBS

General
Operating Conditions

-40 ° C to 60 ° C (-40 ° F to 140 ° F), humidity 90% or less (non-condensing)

Power Supply 12 VDC ± 25%
Power Consumption Max.3.7 W
Protection level IP67
Material Metal
IR Range Up to 30 m
Communication HIKVISION-C
Weight Approx. 292 g (0.64 lb.)

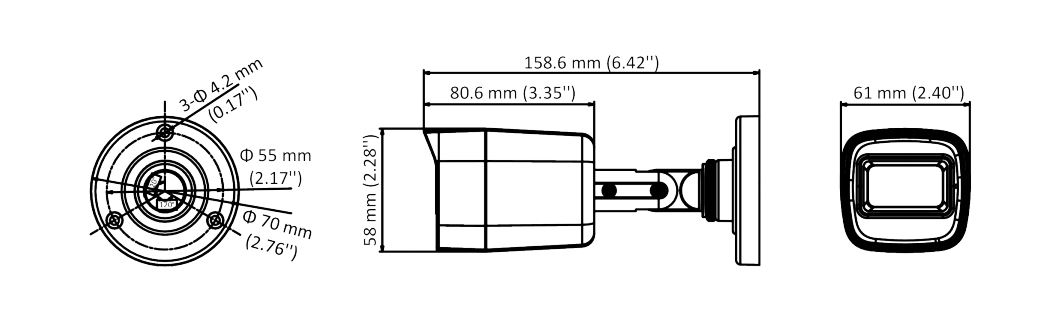

Dimensions 58 mm × 61 mm × 158.6 mm (2.28 "× 2.40" × 6.42 ")

Further details

Download

Download the English brochure
