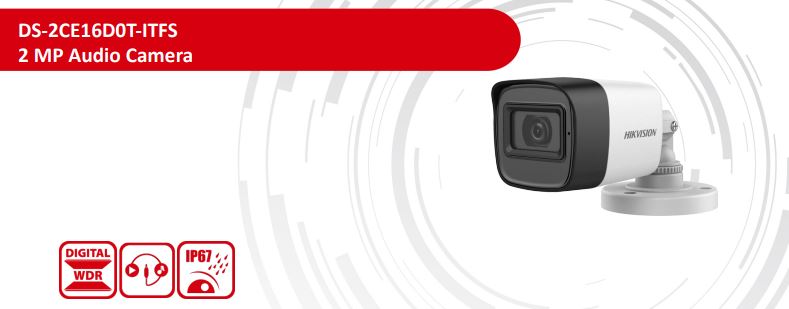

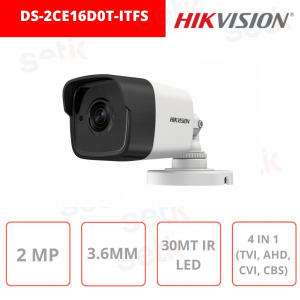

2 MP 4in1 3.6mm IP67 Bullet Camera WDR DS-2CE16D0T-ITFS - Hikvision

2 MP 4in1 3.6mm IP67 Bullet Camera WDR DS-2CE16D0T-ITFS - Hikvision
-35%

Hikvision DS-2CE16D0T-ITFS (3.6mm) 2MP CMOS 4in1 (TVI / AHD / CVI / CVBS) outdoor bullet camera 2Megapixel, 3.6mm lens. Illuminator up to 30M, BLC, Smart IR, DWDR, Audio over coaxial cable, Built-in mic, Hikvision-C. TVI / AHD / CVI / CVBS video output, video output is switchable, 12 VDC ± 25% power supply, ICR. IP67

Reference: DS-2CE16D0T-ITFS(3.6mm)

Brand: Hikvision

EAN: 6954273693794

FIND INSTALLER

€79.30

€122.00 -35%
taxes included
Tax included
  Hurry up! Only a few pieces left in our warehouse!
discover the available quantity



DS-2CE16D0T-ITFS | HIKVISION 2MP BULLET CAMERA HD 4IN1 3.6MM AUDIO OVER COAXIAL CABLE

Made by Hikvision
Hikvision 4IN1 (TVI / AHD / CVI / ANALOG) camera for outdoor use
Resolution: 2 MP 2Megapixel - 3.6mm fixed lens - CMOS sensor
30M Smart IR illuminator - Built-in audio and microphone - Day / Night (ICR) - AGC - BLC - SMART IR - DWDR - IP67 protection
Power supply NOT included - Switchable video output - Audio over coaxial cable - 24 month warranty

4IN1 TECHNOLOGY:

This camera is a QUADRIBRID (4 Integrated Technologies)
These cameras are at the same time Analogue , Ahd , HDCVI and HDVI .

Resolution:
This camera features a resolution of 1920x1080 FULL-HD
2 megapixels high performance CMOS sensor

Optics:
This camera features 3.6mm lens

IR Infrared Illuminator:
IR Infrared illuminator for better night vision. Range up to 30M

This camera is also equipped with SMART IR technology.
Through this technology, the light emitted by the LEDs is adapted according to the framed object.

Smart IR technology

Day / Night:
Allows you to adapt the lens to night / day vision, and the relative automatic management of the IR illuminator, when present.

Questo DVR presenta ingressi / uscite audio

This camera has built-in microphone

IR CUT FILTER (ICR):
Mechanical filter that allows correct viewing of images in daytime viewing conditions. It filters the typical infrared frequencies thus improving the image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.
Immagine esempio IR CUT FILTER
BLC (Back Light Compensation):
is one of the 3 possible steps in the management of images with contrast, typical situations are (entrances or exits from car parks, plates, special lights, entrances with shots from inside to outside, etc.) light compensation is one of the most complex possible, the BLC function allows a fair adaptation to these situations


Click to enlarge

AGC (Automatic Gain Control):
integrated signal amplifier that allows viewing even in critical conditions. It is automatic and does not require specific settings.

D-WDR (Digital Wide Dynamic Range):
Software solution of the more powerful WDR integrated in the DSP, exactly as it happens for the digital zoom compared to the Optical Zoom, it is a software simulation of emulation of the WDR technology, however extremely useful in circumstances of strong contrast.

IP67 protection - outdoor:
This camera has IP67 (dust / diving) protection. Suitable for outdoor environments.

Diet:
A 12V DC power supply is required for the operation of this camera (not included)

Data sheet

DS-2CE16D0T-ITFS
Room
Image Sensor 2 MP CMOS
Signal System PAL / NTSC
Frame Rate

TVI: 1080P @ 30fps, 1080P @ 25fps

AHD: 1080P @ 30fps, 1080P @ 25fps

CVI: 1080P @ 30fps, 1080P @ 25fps

CVBS: PAL / NTSC

Resolution 1920 (H) × 1080 (V)
Min. Illumination 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Time PAL: 1/25 s to 1/50,000 s NTSC: 1/30 s to 1/50,000 s
Lens 3.6 mm
Field of View horizontal FOV: 79.6 °, Vertical FOV: 43.5 °, diagonal FOV: 93.7 °
Lens Mount M12
Day & Night ICR
Angle Adjustment Pan: 0 to 360 °, Tilt: 0 to 180 °, Rotation: 0 to 360 °
Audio Built-In Mic
WDR (Wide Dynamic Range) Digital WDR
Menu
AGC Yes
D / N Mode Auto / Color / BW (Black and White)
Image Mode STD / HIGH-SAT
White Balance Auto / Manual
AE (Auto Exposure) Mode DWDR / BLC / HLC / Global
Noise Reduction 2D DNR
Language English
Functions Brightness, Sharpness, Mirror, Smart IR
Interface
Video Output

Switchable TVI / AHD / CVI / CVBS

General
Operating Conditions

-40 ° C to 60 ° C (-40 ° F to 140 ° F), humidity 90% or less (non-condensing)

Power Supply 12 VDC ± 25%
Power Consumption Max. 3.7 W
Protection level IP67
Material Metal
IR Range Up to 30 m
Communication HIKVISION-C
Weight Approx. 292 g (0.64 lb.)

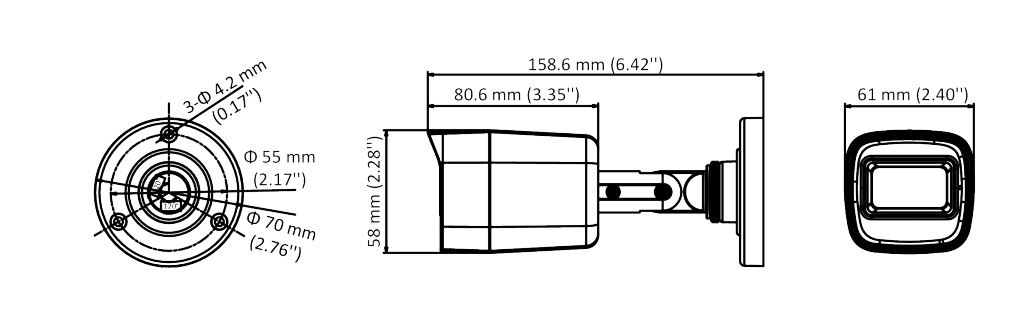

Dimensions 58 mm × 61 mm × 158.6 mm (2.28 "× 2.40" × 6.42 ")

Further details

Download

Download the English brochure
