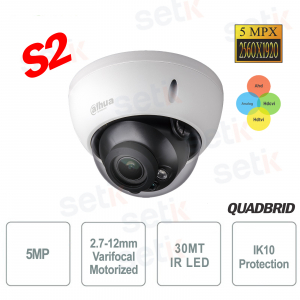

Dahua Dome 4in1 Camera ( CVI / CVBS / AHD / TVI Switchable ) 5MP 5Megapixel , S2 Version , 2.7-12mm varifocal lens with motorized zoom and 1 / 2.7 "CMOS image sensor. Smart IR illuminator (30mt), Day / Night ( ICR), OSD Menu, BLC, HLC, DWDR, AGC, IP67 protection (dust / immersion) and IK10 (vandalism), Aluminum. Lite Series. HAC-HDBW1500R-Z-S2
https://www.setik.biz/en/cameras/6699-dahua-hac-hdbw1500r-z-s2-dahua-4in1-switchable-camera-s2-5mp-ir-motorized-ik10.html
€98.38
€234.24 -58%
taxes included
PRODUCT NOT AVAILABLE, DISCOUNT NOW 3%
LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!
MOTORIZED HDCVI 5 MEGAPIXEL DOME CAMERA 2.7-12MM - 4IN1 - S2 VERSION - IP67 - IK10 - DAHUA
4in1 Outdoor Camera (CVI / CVBS / AHD / TVI Switchable) - S2 Version - Dahua5Megapixel resolution - 2.7-12mm lens with motorized zoom - 1 / 2.7 "CMOS sensor
Smart IR LEDS 30MT Illuminator - Day / Night (ICR) - Multilingual OSD menu
IP67 and IK10 protection (Vandalism) - 12VDC power supply NOT included - 24 month warranty
Smart IR LEDS 30MT Illuminator - Day / Night (ICR) - Multilingual OSD menu
IP67 and IK10 protection (Vandalism) - 12VDC power supply NOT included - 24 month warranty
Product details
- 4in1 Dome Outdoor Camera ( CVI / CVBS / AHD / TVI Switchable ) Dahua
- S2 version
- 5Megapixel resolution
- 1 / 2.7 "CMOS image sensor
- 2.7-12mm Varifocal lens with motorized zoom
- Day / Night (ICR), BLC, HLC, DWDR, AGC
- High Speed, long distance real-time transmissions
- Smart IR LED 30MT illuminator
- CVI / TVI / AHD / CVBS video output choices from a BNC port
- Multilingual OSD menu
- IP67 protection (Dust / Immersion)
- IK10 protection (Vandalism)
- 12VDC power supply NOT included
- Material: Metal
- Dimensions: φ122mm × 88.9mm (φ4.8 "× 3.5")
- 24 months warranty
Data sheet
| Model | HAC-HDBW1500R-Z-S2 |
| Room | |
| Image Sensor | 1 / 2.7 "CMOS |
| Effective Pixel | 2880 (H) × 1620 (V), 5MP |
| Scanning System | Progressive |
| Electronic Shutter speed |
PAL: 1/25 s – 1 / 100,000 s |
| Min. Illumination | 0.005 Lux / F1.6, 30IRE, 0 Lux IR on |
| S / N Ratio | > 65 dB |
| IR Distance | 30 m (98.4 ft) |
| IR On / Off Control | Car; manual |
| IR LEDs | 2 |
| Pan / Tilt / Rotation Range | Pan: 0 ° -355 ° Tilt: 0 ° –75 ° Rotation: 0 ° –355 |
| Lens | |
| Lens Type | Motorized vari-focal |
| Mount Type | φ14 |
| Focal Length | 2.7 mm – 12 mm |
| Max. Aperture | F1.6 |
| Field of View | Diagonal: 39 ° –130 ° Horizontal: 34 ° –107 ° Vertical: 19 ° –55 ° |
| Iris Type | Fixed iris |
| Close Focus Distance | 0.5 m (1.64 ft) |
| Video | |
| Frame Rate | CVI: PAL: 5M @ 25 fps; 4M @ 25 fps; 1080P @ 25 fps NTSC: 5M @ 25 fps; 4M @ 30 fps; 1080P @ 30 fps AHD: PAL: 4M @ 25 fps; NTSC: 4M @ 30fps TVI: PAL: 4M @ 25fps; NTSC: 4M @ 30fps CVBS: PAL: 960H; NTSC: 960H |
| Resolution | 5M (2880 × 1620); 4M (2560 × 1440); 1080p (1920 × 1080); 960H (960 × 576/960 × 480) |
| Day / Night | Auto switch by ICR |
| BLC | BLC / HLC / DWDR |
| WDR | DWDR |
| White Balance | Car; manual |
| Gain Control | Car; manual |
| Noise Reduction | 2D NR |
| Smart IR | Yes |
| Mirror | Off / On |
| Privacy Masking | Off / On (8 areas, rectangle) |
| Port | |
| Video Output | Video output choices of CVI / TVI / AHD / CVBS by one BNC port |
| General | |
| Power Supply | DC 12V ± 30% |
| Power Consumption | Max 5.5W (12V DC, IR on) |
| Operating Conditions |
–30 ° C to + 60 ° C (–22 ° F to + 140 ° F); <95% (noncondensation) |
| Storage Conditions | –30 ° C to + 60 ° C (–22 ° F to + 140 ° F); <95% (noncondensation) |
| Ingress Protection | IP67, IK10 |
| Casing | Metal throughout the whole casing |
| Dimensions | φ122mm × 88.9mm (φ4.8 "× 3.5") |
| Net Weight | 0.47 kg (1.04 lb) |
| Gross Weight | 0.62 kg (1.34 lb) |
Further details
 |
This camera is a QUADRIBRID (4 Integrated Technologies) These cameras are at the same time Analogue , Ahd , Hdcvi and Hdtvi .    Switch Technologies: The camera can switch from HDCVI to HDTVI, AHD or Analog via PFM820 |
 |
5MP resolution, means 12 times the resolution of a common D1 camera : 1 / 2.7 "CMOS image sensor |
 |
This camera features 2.7-12mm varifocal lens with Motorized Zoom Optics Demonstration Video: |
 |
Infrared illuminator with approximate maximum range of 30Mt |
 |
Day / Night: allows you to adapt the lens to night / day vision, and the relative automatic management of the IR illuminator, when present.  |
 |
The IR CUT FILTER is a mechanical filter that allows a correct display of images in daylight viewing conditions. It filters the typical infrared frequencies thus improving the image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.  |
 |
AGC is an integrated signal amplifier that allows vision even in critical conditions. It is automatic and does not require specific settings. |
 |
BLC (Back Light Compensation): it is one of the 3 possible steps in the management of images with contrast, typical situations are: entrances or exits from parking lots, license plates, special lights, entrances with shots from inside to outside, etc. Light compensation is one of the most complex operations possible, the BLC function allows a discreet adaptation to these situations  |
 |
Protection level IP67 (Dust / Diving) |
 |
IK 10 is the highest level of protection from direct damage. This allows the camera to be used even if there is a risk of vandalism
|
 |
12V DC power supply NOT included in the package  |
 |
This camera was made of metal. |
 |
This product is covered by a 24 month warranty. |
Download
Download the English brochure
