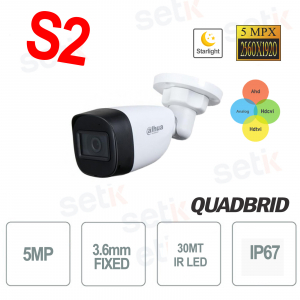

Dahua HAC-HFW1500C-S2 S2 Version 5MP 5 Megapixel Outdoor Camera with 4 Technologies in 1: HDCVI / HDTVI / AHD / Switchable Analogue , 3.6mm fixed lens and 1/2.7" CMOS sensor, With Starlight technology . 30MT Smart IR LED illuminator, Day/Night (ICR), BLC, HLC, DWDR, IP67 protection, Multilingual OSD menu, Dahua Technology. S2 version
https://www.setik.biz/en/cameras/6610-dahua-hac-hfw1500c-s2-dahua-outdoor-camera-5mp-4in1-36mm-ir-30-mt-starlight-version-s2.html
€44.58
€106.14 -58%
taxes included
discover the available quantity
LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!
DAHUA OUTDOOR CAMERA 4IN1 5MEGAPIXEL 3.6MM - STARLIGHT - BUILT-IN MICROPHONE - S2 VERSION - DAHUA
Dahua Bullet 4in1 Outdoor S2 Version Camera
4 Technologies in 1: HDCVI / HDTVI / AHD / ANALOG Switchable
5Megapixel Resolution - 3.6mm Fixed Lens - 1/2.7" CMOS Sensor - Starlight Technology
Smart IR 3 LEDs 30MT - Day/Night (ICR), IP67
4 Technologies in 1: HDCVI / HDTVI / AHD / ANALOG Switchable
5Megapixel Resolution - 3.6mm Fixed Lens - 1/2.7" CMOS Sensor - Starlight Technology
Smart IR 3 LEDs 30MT - Day/Night (ICR), IP67
Product details
- - 4in1 Bullet Outdoor Camera - Dahua
- - S2 Version
- - 4 Technologies in 1: HDCVI / HDTVI / AHD / ANALOG
- - Resolution: 5 Megapixels
- - 1/2.7" CMOS image sensor
- - Starlight Technology
- - 3.6mm fixed optics
- - Functions: Day/Night(ICR), BLC, HLC, DWDR, AGC
- - OSD Multilingual Menu
- - Smart IR illuminator 3 LEDs 30MT
- - 1 High Definition BNC Video Output
- - 12V DC power supply not included
- - Suitable for outdoor and indoor environments
- - IP67 protection (dust / immersion)
- - Dimensions 161.3mm×69.7mm×70.0mm
- - 24 month warranty
Technical data sheet
| Model | HAC-HFW1500C-S2 |
| Room | |
| Image Sensor | 1/2.7 inch CMOS |
| Effective Pixels | 2880 (H) × 1620 (V) |
| Pixel | 5 MP |
| Scanning System | Progressive |
| Electronic Shutter Speed | PAL: 1/25s–1/100000s |
| Min. Illumination | 0.01 Lux/F1.6, 30IRE, 0 Lux IR on |
| Y/N Ratio | >65dB |
| IR Distance | 30 m (98.4 ft) |
| IR On/Off Control | Auto/Manual |
| IR LEDs | 3 |
| Lens | |
| Lens Type | Fixed focal |
| Mount Type | M12 |
| Focal Length | 3.6mm |
| Max. Openings | F1.6 |
| Field of View | 109° × 92° × 48° (diagonal × horizontal × vertical) |
| Close focus distance | 0.9 m (3.0 ft) |
| Video | |
| Resolution |
5M (2880 × 1620); 4M (2560 × 1440); 1080P (1920×1080); 960H (960 × 576/960 × 480) |
| Frame rate | CVI: PAL: 5M@25fps; 4M@25fps; 1080P@25fps; NTSC: 5M@25fps; 4M@30fps; 1080P@30fps AHD: PAL: 4M@25fps; NTSC: 4M@30fps TVI: PAL: 4M@25fps; NTSC: 4M@30fps CVBS: PAL: 960H; NTSC: 960H |
| Day/Night | Auto switch by ICR |
| OSD-Menu | Multi language |
| BLC Mode | BLC/HLC/DWDR |
| WDR | DWDR |
| White Balance | Car; manual |
| Gain Control | Car; manual |
| Noise reduction | 2D NR |
| Smart IR | Yes |
| Mirror | On/Off |
| Privacy Masking | Off/On (8 areas, rectangle) |
| Certification | |
| Certifications | CE (EN 55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 55024:2010+A1:2015, EN 55035:2017, EN 50130-4:2011+A1:2014, EN 62368-1:2014+A11:2017) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
| Port | |
| Video Output | Video output choices of CVI/TVI/AHD/CVBS by one BNC port |
| Power | |
| Power Supply | 12V ±30% DC |
| Power consumption | Max 3.7W (12V DC, IR on) |
| Environmental | |
| Operating Conditions | -40°C to +60°C (-40°F to 140°F); <95% (noncondensation) |
| Storage Conditions | -40°C to +60°C (-40°F to 140°F); <95% (noncondensation) |
| Ingress Protection | IP67 |
| Construction | |
| Casing | Plastic |
| Dimensions | 161.3mm×69.7mm×70.0mm(6.35"×2.75"×2.75") |
| Net Weight | 0.19 kg (0.55 lb) |
| Gross Weight | 0.29 kg (0.64 lb) |
Further details
 | This camera is a QUADRIBRID (4 integrated technologies) These cameras are at the same time, Analog , AHD , Hdcvi and Hdtvi .    |
 | 5MP resolution, means 12 times the resolution of a common D1 camera : 1/2.7" CMOS image sensor |
 | 3.6mm fixed optics |
| OSD (ON SCREEN DISPLAY) allows you to define masked areas, image correction, ATR, Day/Night sensitivity, Shutter speed, White balance, light compensation and much more... The OSD menu is multi-lingual Multi-Technology: The camera features 4 technologies in 1 (HDCVI, HDTVI, AHD, Analog) |
| 1/2.7" CMOS sensor with STARLIGHT technology. Low brightness, color vision even in night mode Normally, when entering night mode, the color vision changes to black/white. With the SENSOR present, night shots will be clear and in color |
 | Allows you to adapt the lens to Night/Day vision
|
 | The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions. It filters the typical infrared frequencies, thus improving image quality. In nighttime conditions, the filter is removed as it is necessary to capture the typical IR frequencies.  |
 | BLC (Back Light Compensation) is one of the 3 possible steps in the management of images with Contrast, typical situations are (Entrances or exits from parking lots, License plates, Special lights, Entrances with shots from the inside towards the outside, etc.) the light compensation is one of the most complex operations possible, the BLC function allows a fair adaptation to these situations |
 | The AGC is an integrated signal amplifier that allows vision even in critical conditions. It is automatic and does not require specific settings. |
 | Protection level IP67 (Dust / Immersion) |
 | 12VDC power supply not included  |
 | This product is covered by a 24 month warranty. |
