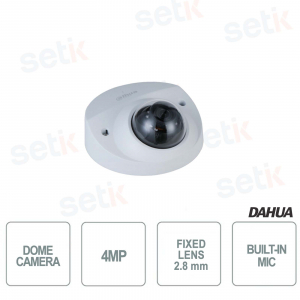

Dahua IPC-HDBW2431F-AS-S2 Dome Camera with Starlight technology. Resolution 2688x1520, 4 Megapixel 1/3 "CMOS sensor. 8 Led IR illuminator up to 30 meters. Rotation mode. Onvif, ROI, WDR 120 dB, 3D NR, HLC, BLC, Day / Night (ICR). Digital watermarking . Video analysis, IVS. Anomaly detection. MicroSD slot up to 256 GB. 1 alarm in / 1 out, 1 audio in / 1 out, built-in microphone. H.265 video compression. Supports PoE. IP67 protection, IK 10. Dahua Technology
FIND INSTALLER
€139.89
€333.06 -58%
discover the available quantity
LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!
DOME CAMERA - 4 MEGAPIXEL - STARLIGHT - IVS - ALARM
Dome Camera - Dahua4Megapixel Resolution - 1/3 " STARLIGHT CMOS Sensor - 2.8mm Fixed Lens - 30M IR Led
1 alarm input / 1 output - WDR 120dB - Day / Night (ICR) - 3D NR - ROI - BLC - HLC - Video Analysis
MicroSD slot - 12V DC power supply (not included) - 24 month warranty
Product details
- Dome camera with Starlight technology - Dahua
- Resolution: 2688x1520
- 4 Megapixel 1/3 "CMOS image sensor
- Starlight technology: color night vision
- Fixed lens 2.8mm
- Video Compression H.265
- Onvif, ROI, WDR 120 dB, 3D NR, HLC, BLC, Day / Night (ICR). Digital watermarking
- 8 LED IR illuminator up to 30 meters
- Rotation mode
- Anomaly detection
- IVS
- IP67 protection (Dust / Immersion), IK10
- 12V DC Power Supply (Not Included)
- Support PoE
- MicroSD slot (Max 256GB not included)
- Dimensions: 55 mm × Φ108.9 mm (2.2 "× Φ4.3")
- Metal
- 24 Months Warranty
Data sheet
| Model | IPC-HDBW2431F-AS-S2 |
| Room | |
| Image Sensor | 1/3 ”4Megapixel progressive CMOS |
| Effective Pixel | 2688 (H) × 1520 (V) |
| ROM | 128 MB |
| RAM | 128 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto / Manual 1/3 s – 1 / 100,000 s |
| Min. Illumination | 0.008 Lux @ F1.6 |
| S / N Ratio | > 56 dB |
| Illumination Distance | 30 m (98.4 ft) |
| Illuminator On / Off Control | Auto / Manual |
| Illuminator Number | 8 (IR LED) |
| Pan / Tilt / Rotation Range | Pan: –30 ° –30 ° Tilt: 0 ° –80 ° Rotation: 0 ° –360 ° |
| Lens | |
| Lens Type | Fixed-focal |
| Mount Type | M12 |
| Focal Length | 2.8 mm |
| Max. Aperture | F1.6 |
| Field of View | Horizontal 102 ° × Vertical 55 ° × Diagonal 121 ° |
| Iris Type | Fixed |
| Close Focus Distance | 0.9 m (3.0 ft) |
| Smart Event | |
| IVS | Tripwire, Intrusion |
| Video | |
| Video Compression | H.265; H.264; H.264B; MJPEG (only supported by sub stream) |
| Smart Codec | Smart H.265 + / Smart H.264 + |
| Video Frame Rate | Main stream: 2688 × 1520 (1 fps-20 fps) 2560 × 1440 (1 fps-25/30 fps) Sub stream: 704 × 576 (1 fps-25 fps) 704 × 480 (1 fps-30 fps) |
| Stream Capability | 2 streams |
| Resolution | 2688 × 1520 (2688 × 1520); 2560 × 1440 (2560 × 1440); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Bit Rate Control | CBR / VBR |
| Video Bit Rate | H.264: 32 kbps – 6144 kbps H.265: 12 kbps – 6144 kbps |
| Day / Night | Auto (ICR) / Color / B / W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB |
| White Balance | Auto / natural / street lamp / outdoor / manual / regional custom |
| Gain Control | Auto / Manual |
| Noise Reduction | 3D NR |
| Motion Detection | OFF / ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Smart Illuminator | Yes |
| Image Rotation | 0 ° / 90 ° / 180 ° / 270 ° (Support 90 ° / 270 ° with 2688 × 1520 resolution and lower.) |
| Mirror | Yes |
| Privacy Masking | 4 areas |
| Audio | |
| Built-in MIC | Yes |
| Audio Compression | G.711a; G.711Mu; G.726 |
| Alarm | |
| Alarm Event | No SD card; Full SD card; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; security exception; local alarm |
| Network | |
| Network | RJ-45 (10/100 Base-T) |
| SDK and API | Yes |
| Cyber Security | Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP / MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade |
| Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Bonjour |
| Interoperability | ONVIF® (Profile S / Profile G / Profile T); CGI; P2P; Milestone; Genetec |
| User / Host | 20 |
| Storage | FTP; SFTP; Micro SD Card (support max. 256 GB); NAS |
| Browser | IE Chrome Firefox |
| Management Software | Smart PSS, DSS, DMSS |
| Mobile Phone | IOS; Android |
| Certification | |
| Certifications | CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30 / EU FCC: 47 CFR FCC Part 15, Subpart B UL / CUL: UL60950-1 CAN / CSA C22.2 No.60950-1-07 |
| Port | |
| Audio Input | 1 channel (RCA port) |
| Audio Output | 1 channel (RCA port) |
| Alarm Input | 1 channel in: 5mA 3V – 5V DC |
| Alarm Output | 1 channel out: 300mA 12V DC |
| Power | |
| Power Supply | 12V DC / PoE |
| Power Consumption | <5.4W |
| Environment | |
| Operating Conditions | –40 ° C to + 60 ° C (–40 ° F to + 140 ° F) / less than ≤ 95% RH |
| Storage Temperature | –40 ° C to + 60 ° C (–40 ° F to + 140 ° F) |
| Protection Grade | IP67, IK10 |
| Structure | |
| Casing | Metal |
| Dimensions | 55 mm × Φ108.9 mm (2.2 "× Φ4.3") |
| Net Weight | 0.38 kg (0.8 lb) |
| Gross Weight | 0.52 kg (1.1 lb) |
Further details
 | All Onvif , the absolute standard for IP cameras, being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera for its own sake that can never be used together with recording systems This camera supports Onvif version |
 | The advantage of a PoE camera is obvious, it allows it to be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power supply system, a PoE camera guarantees constant voltages and simple installation. |
| 1/3 "CMOS sensor with STARLIGHT technology. Low brightness, color vision even in night mode Normally, when entering night mode, the color vision becomes black / white. With the SENSOR present, night shots will be sharp and in color |
 | This camera features a 4 Megapixel resolution! |
 | 2.8mm fixed lens |
| This camera supports video compression in H.264 and also in the new H.265 standard |
 | This camera provides VIDEO ANALYSIS (IVS):
|
 |
Infrared illuminator with 8 LEDs and approximate maximum range of 30Mt |
 | ULTRA WDR up to 120dB WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light / shadow contrast. Fundamental in the case of shots from the inside out, license plates, shaded spots or all situations where there is no homogeneity of light.  |
 | It allows to adapt the lens to the Night / Day vision and the consequent management of the IR illuminator automatically. |
 | The IR CUT FILTER is a mechanical filter that allows a correct display of images in daylight viewing conditions. It filters the typical infrared frequencies thus improving the image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.  |
 | BLC (BACK LIGHT COMPENSATION) is one of the 3 solutions for managing images with contrast. The BLC function allows a discreet adaptation to all those situations where shooting is difficult (entrances or exits of parking lots, registration of license plates, presence of special lights etc ...). |
 | This camera is equipped with the ROI function. The images deriving from IP cameras are “compressed”, consequently the quality is set during the recording phase. Especially on cameras with a very high resolution, it is often necessary to reduce the quality in order to guarantee a reduced bandwidth occupation and record a greater number of days or cameras. The ROI allows you to define areas where you can set a higher quality (for example a door, the area where the plate usually passes, an exit, etc.). In that area I can set a higher quality thus guaranteeing a greater definition of the image.  |
 | Possibility to insert Micro SD up to a maximum of 256Gb (Not Included) |
 | Protection level IP67 (Dust / Diving) |
 | IK 10 is the highest level of protection from direct damage. This allows the camera to be used even if there is a risk of vandalism
|
 |
12V DC power supply NOT included!
|
 | This product is covered by a 24 month warranty. |
