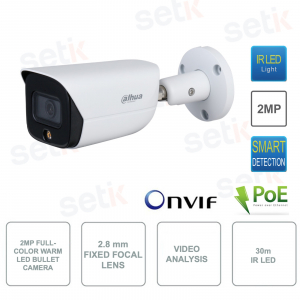

IPC-HFW3249E-AS-LED - Dahua - IP PoE Camera ONVIF® - Full Color - 2MP - 2.8mm lens - 1 / 2.8 '' CMOS sensor
IPC-HFW3249E-AS-LED - Dahua - IP PoE Bullet Camera ONVIF Full Color Warm LED - 2 Megapixel 2MP - 1 / 2.8 "CMOS sensor - Triple Stream - 2.8mm optics - 1x Warm LED with illumination up to 30m - Smart Codec H .265+ - Day / Night (ICR) - WDR 120dB - Intelligent Functions: Perimeter Protection , Line Crossing, Intrusion, Intelligent Search, People and Vehicle Detection - Audio - Alarm - Microphone - Micro SD slot up to 256GB - IP67 outdoor protection.
FIND INSTALLER
PRODUCT NOT AVAILABLE, DISCOUNT NOW 3%
LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!
CHRISTMAS WEEK 2024 ×
FREE SHIPPING
ON THE ENTIRE CATALOGUE!
1. Reach at least €249
2. Select FEDEX
3. Confirm code NATALE-FREE-E
4. Complete your order.
Shipping will be free of charge!
Until 10 a.m. on 27/12/2024
Code NOT combinable with other actives
EXTERNAL IP ONVIF® CAMERA - 2MEGAPIXEL - 2.8MM LENS - VIDEO ANALYSIS - DAHUA - FULL COLOR WARM LED BULLET WIZSENSE - NETWORK - IPC-HFW3249E-AS-LED
ONVIF® PoE IP Camera - Full Color Warm LED WizSense Network - IPC-HFW3249E-AS-LED-0280B
2Megapixel resolution - 1x Warm LED, with range up to 30m - 2.8mm optics - CMOS 1 / 2.8 "- H.265 + video compression - Day / Night (ICR) - WDR 120dB - MicroSD slot up to 256GB - Video Analysis: crossing line, intrusion, people and vehicle detection - IP67 outdoor protection - SMD Plus - Alarm 1in / 1out - Audio 1in (RCA) / 1out (RCA) - Integrated microphone - RJ45 - Anomaly detection - Power supply 12V DC / PoE - Dimensions: 192.7 mm × 70.5 mm × 66.4 mm
Product details
- ONVIF® PoE IP camera, ideal for outdoor use - Dahua - IPC-HFW3249E-AS-LED-0280B
- 2Megapixel FULL HD 1080P resolution
- 2.8mm fixed lens
- 1 / 2.8 " CMOS sensor
- Video compression with Smart Codec up to H.265 +
- Triple Stream Video
- Rotation mode, 3D DNR, HLC, BLC, digital watermarking
- WDR 120dB
- Day / Night (ICR)
- 1x Warm LED illuminator up to 30m
: Thanks to the high quality of the sensor and the wide viewing angle of the lens, this camera guarantees clearer color images, even in low light environments Video Analysis: line crossing detection, intrusion detection, people detection and vehicles- SMD: Dahua Smart Motion Detection, motion detection by intelligent algorithm.
- RJ-45 10/100 Base-T network interface
- Anomaly detection
- Perimeter Protection and Intelligent Search
- Audio: 1in (RCA) / 1out (RCA)
- Alarm: 1in / 1out
- Event alarm
- IP67 protection
- Up to 20 users supported
- Micro SD memory slot (Up to 256GB - not included)
- IP67 protection (indoor / outdoor)
- Material: Metal (shell)
- Dimensions: 192.7mm × 70.5mm × 66.4mm
- Weight: 590 g
- Operating temperature: -40 ° C to + 60 ° C
- Power supply NOT included
- 24 months warranty
Data sheet
| IPC-HFW3249E-AS-LED-0280B | |||||
|
Technical Specification |
|||||
|
Room |
|||||
|
Image Sensor |
1 / 2.8 ”2Megapixel progressive CMOS |
||||
|
Max. Resolution |
1920 (H) × 1080 (V) |
||||
|
ROM |
128 MB |
||||
|
RAM |
512 MB |
||||
|
Scanning System |
Progressive |
||||
|
Electronic Shutter Speed |
Auto / Manual 1/3 s – 1 / 100,000 s |
||||
|
Min. Illumination |
0.0015 Lux @ F1.0 |
||||
Protocol
IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; SNMP
Interoperability
ONVIF® (Profile S / Profile G); CGI; P2P; Milestone; Genetec
Scene self-adaptation
Yes
User / Host
20 (Total bandwidth: 64M.)
Storage
FTP; SFTP; Micro SD Card (support max. 256 G); Dahua Cloud; NAS
Browser
IE: IE8; IE9; IE11 Chrome Firefox
Management Software
Smart PSS; DSS; DMSS
Mobile Phone
IOS; Android
Certification
Certifications
CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30 / EU FCC: 47 CFR FCC Part 15, Subpart B UL / CUL: UL60950-1 CAN / CSA C22.2 No.60950-1-07
Port
Audio Input
1 channel (RCA port)
Audio Output 1 channel (RCA port) Alarm Input 1 channel (RCA port) Alarm Output 1 channel out: 300mA 12V DC Power Power Supply 12V DC / PoE Power Consumption <8.1W Environment Operating Conditions -40 ° C to + 60 ° C (-40 ° F to + 140 ° F) / less than≤95% Storage Conditions -40 ° C to + 60 ° C (-40 ° F to + 140 ° F) Protection Grade IP67 Structure Casing Metal Dimensions 192.7 mm × 70.5 mm × 66.4 mm Net Weight 590 g Gross Weight 780 gFurther details
 |
All Onvif , the absolute standard for IP cameras, being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera for its own sake that can never be used together with recording systems This camera is ONVIF® compatible |
|
 |
The advantage of a PoE camera is obvious, it allows it to be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power supply system, a PoE camera guarantees constant voltages and simple installation. | |
|
|
Smart H.265 + Smart H.265 + is the optimized implementation of the H.265 codec which uses a scene adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference frame and intelligent noise reduction useful for delivering high quality video without straining the network. Smart H.265 + greatly reduces bit rate and storage requirements compared to standard H.265 compression
|
|
 |
This camera features a resolution of 2Megapixel 1080P FULL HD | |
 |
This camera features 2.8mm fixed lens. | |
 |
Triple Stream:
|
|
 |
Remote visibility on mobile using the Dahua DMSS application. |
|
 |
Infrared Illuminator with 1 Warm LED, with a maximum range of 30m. | |
 |
This camera features VIDEO ANALYSIS (SMART DETECTION) functions: |
|
 |
ULTRA WDR up to 120dB WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light / shadow contrast. Fundamental in the case of shots from the inside out, license plates, shaded spots or all situations where there is no homogeneity of light.  |
|
 |
Day / Night: allows you to adapt the lens to night / day vision, and the relative automatic management of the IR illuminator, when present.  |
|
 |
The IR CUT FILTER is a mechanical filter that allows a correct visualization of the images in daytime viewing conditions, filtering the typical infrared frequencies, thus improving the image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies. |
|
 |
This camera is equipped with the ROI function. The images deriving from IP cameras are “compressed”, consequently the quality is set during the recording phase. Especially on cameras with a very high resolution, it is often necessary to reduce the quality in order to guarantee a reduced bandwidth occupation and record a greater number of days or cameras. The ROI allows you to define areas where you can set a higher quality (for example a door, the area where the plate usually passes, an exit, etc.). In that area I can set a higher quality thus guaranteeing a greater definition of the image.  |
|
 |
|
|
 |
This camera has 1 RCA audio input and 1 RCA audio output. | |
 |
This camera has 1 alarm input and 1 alarm output. | |
 |
Metal casing. | |
 |
Possibility to insert Micro SD up to a maximum of 256Gb - not included |
|
 |
Protection level IP67 (Dust / Diving) | |
 |
Power supply NOT included  |
|
 |
This product is covered by a 24 month warranty. |
