ONVIF IP PoE Camera Dahua IPC-EB5541-M12-SA - 5MP 5 Megapixel Mobile Camera - 1 / 2.7 "CMOS Sensor - 1.4mm Fisheye Panoramic Lens - Video Compression up to H.265 + , Triple Stream, WDR 120dB , 3D DNR, HLC, BLC - Video Analysis: Counting of people in the area and intelligent search, Motion Detection - Anti-Videotampering - Change of scenery , Heat map , Integrated microphone - Slot for MicroSD - IK10 and IP67 protection.
FIND INSTALLER
PRODUCT NOT AVAILABLE, DISCOUNT NOW 3%
LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!
IP POE CAMERA ONVIF® MOBILE FISHEYE - 5 MEGAPIXEL - MICROPHONE - VIDEO ANALYSIS - ANOMALIES DETECTION - DAHUA - MOBILE CAMERA
PoE ONVIF® outdoor IP camera - Dahua - IPC-EB5541-M12-SA
5 Megapixel Resolution - Mobile Camera - 1.4mm Fisheye Optics - 5MP 1 / 2.7 "CMOS Sensor - Triple Stream - Video Analysis: People Counting - Intelligent Search, Intrusion Detection, Line Crossing - Heat Map - WDR 120dB - 3D DNR, HLC , BLC, ROI, Privacy Masking (x4), Day / Night - Video compression H.265 + - MicroSD slot up to 256GB - Microphone - IP67 protection, IK 10, protection against voltage surges in input - Dimensions: 62.0 mm × Φ110.0 mm - Metal case - Weight: 405g.
Product details
- ONVIF® POE Camera - Dahua - IPC-EB5541-M12-SA
- 5MP 5 Megapixel resolution
- Fixed Lens 1.4mm Fisheye (180 ° viewing angle)
- Mobile Camera : Ideal for installation on moving vehicles
- 1 / 2.7 ”5Megapixel progressive scan CMOS image sensor
- Video Compression up to H.265 +
- Day / Night, 3DNR, HLC, AGC, BLC
- WDR 120dB
- Video Analysis ( Line Crossing, Intrusion, Heat Map )
- Micro SD slot (Max 256GB)
- Integrated microphone
- IP67 protection (Dust / Immersion)
- Aviation connector
- IK10 protection (Vandalism)
- 12V DC power supply (Not included), PoE
- Dimensions: 62.0 mm × Φ110.0 mm
- Weight: 405g
- 24 months warranty
Data sheet
| IPC-EB5541-M12-SA | ||||
Technical Specification | ||||
Room | ||||
Image Sensor | 1 / 2.7 ”5Megapixel progressive CMOS | |||
Max. Resolution | 2592 (H) × 1944 (V) | |||
ROM | 128 MB | |||
RAM | 512 MB | |||
Scanning System | Progressive | |||
Electronic Shutter Speed | Auto / Manual 1/3 s – 1 / 100,000 s | |||
Min. Illumination | 0.006 Lux@F2.0 (Color, 30IRE) | |||
S / N Ratio | > 56 dB | |||
Pan / Tilt / Rotation Range | Pan: 0 ° –355 ° Tilt: 0 ° –55 ° Rotation: 0 ° –360 ° | |||
Lens | ||||
Lens Type | Fixed-focal | |||
20 (Total bandwidth: 64M)
Storage
FTP; SFTP; Micro SD card (support max. 256 G); NAS
Browser
IE: IE8, IE9 and IE11 Chrome Firefox
Management Software
Smart PSS; DSS; DMSS
Mobile Phone
IOS; Android
Certification
Certification | CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30 / EU FCC: 47 CFR FCC Part 15, Subpart B UL / CUL: UL60950-1 CAN / CSA C22.2 No.60950-1-07 EN50155 EN45545-2 E-MARK: ECE Regulation 10.05 |
Power | |
Power Supply | PoE (802.3af) |
Power Consumption | Basic power consumption: 4.7W (PoE) Max. Power consumption (H.265 + intelligent function + WDR): 6W (PoE) |
Environment | |
Operating Conditions | –30 ° C to + 55 ° C (–22 ° F to + 131 ° F) / Less than 95% RH |
Strorage Conditions | –40 ° C to + 60 ° C (–40 ° F to + 140 ° F) |
Protection Grade | IP67; IK10 |
Structure | |
Casing | Metal |
Dimensions | 62.0 mm × Φ110.0 mm (2.44 "× Φ4.3") |
Net Weight | 405 g (0.9 lb) |
Gross Weight | 520 g (1.1 lb) |
Further details
 | Onvif, the absolute standard for IP cameras. Being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera for its own sake that can never be used together with recording systems |
 | The advantage of a PoE camera is obvious, it allows it to be powered with the same cable with which it communicates without bringing additional power cables and without having to install a separate power supply system, a PoE camera guarantees constant voltages and simple installation. |
| SHOCKPROOF - EN50155 Vibration is unavoidable in mobile installations. In order to avoid image or connection errors, the hardware structure of the mobile camera is shock resistant with the certification of EN50155 . In addition, the mobile camera adopts M12 aviation connector for stable connection with MCVR.  |
| Smart H.265 + Smart H.265 + is the optimized implementation of the H.265 codec which uses a scene adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference frame and intelligent noise reduction useful for delivering high quality video without straining the network. Smart H.265 + greatly reduces bit rate and storage requirements compared to standard H.265 compression
|
 | 5MP resolution, means 12 times the resolution of a common D1 camera : |
 | 1.4mm lens with FishEye effect. |
 | Remote visibility on mobile using the Dahua DMSS application. |
 | This camera features SMART DETECTION: - Line crossing
|
 | This camera features advanced smart features, including:

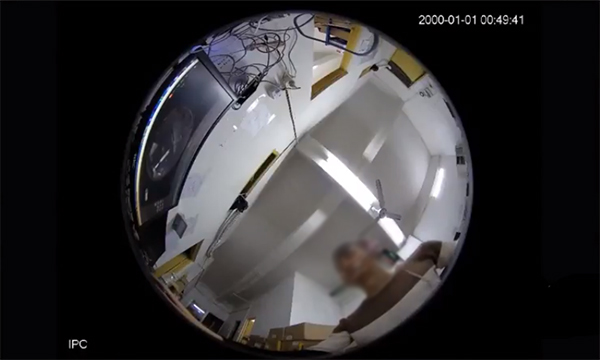

Example image:
|
 | This camera integrates a microphone. |
 | ULTRA WDR up to 120dB WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light / shadow contrast. Fundamental in the case of shots from the inside out, license plates, shaded spots or all situations where there is no homogeneity of light.  |
 | Day / Night: allows you to adapt the lens to night / day vision, and the relative automatic management of the IR illuminator, when present.  |
 | Triple Stream:
|
 | Automatic Gain Control, with the possibility of independently adjusting the sensitivity in particular conditions of use  |
 | BLC (Back Light Compensation): it is one of the 3 possible steps in the management of images with contrast, typical situations are: entrances or exits from parking lots, license plates, special lights, entrances with shots from inside to outside, etc. Light compensation is one of the most complex operations possible, the BLC function allows a discreet adaptation to these situations  |
 | Possibility to insert Micro SD up to a maximum of 256Gb (not included). |
 | Protection level IP67 (Dust / Diving) |
 | IK10 protection (vandalism) IK 10 is the highest level of protection from direct damage. This allows the camera to be used even if there is a risk of vandalism  |
 | A 12V DC power supply is required for the operation of this camera (not included)  |
 | This product is covered by a 24 month warranty. |
