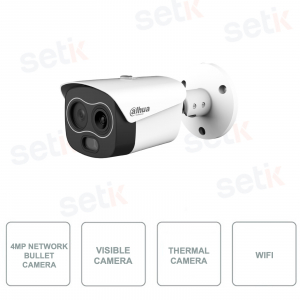

Network IP Bullet Camera - Thermal + Visible - 4MP - Visible 12mm - Thermal 10mm - Wi-Fi - IP67 - PoE

Network IP Bullet Camera - Thermal + Visible - 4MP - Visible 12mm - Thermal 10mm - Wi-Fi - IP67 - PoE
UNDERSELLING -69%

TPC-BF1241P-D10F12-WIFI Thermal Camera + Visible Dahua professional Hybrid, with Dual-Lens. Double optics: thermal (10mm) and visible (12mm), 1 / 2.8 "CMOS sensor with 4MP resolution (for visible optics), Wi-Fi , Dual Stream for thermal and visible cameras, H.265 video compression, Motion detection, ROI, 2D / 3D DNR Digital Noise Reduction - DWDR - Smart IR Illuminator up to 30m, Color Palette and White Light , Smoke Detection, Fire Detection, Person and Vehicle Classification, Alarm, Audio, MicroSD Slot up to 256GB, RS485 , IP67 level protection, for outdoor use - ONVIF - PoE.

Reference: TPC-BF1241-D10F12-WIFI

Brand: Dahua

EAN: 6939554923289

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

The Asian Company, born in 2001, is famous because of the excellent quality of its product in terms of performances and potential.

The range of products made by Dahua includes not only classic CCTV systems but also more complex and articulate systems: not only video surveillance, indeed, but also access control, video intercoms, thermal cameras and much more.

The reliability, the cutting-edge technologies and the competitive prices offered by Dahua are only some of the reasons why Setik has always chosen to distribute this brand. Dahua has been for years a reference point in the international CCTV market, due to the huge investments dedicated every year to Research and Development. Numbers are clear: since 2016, Dahua has registered more than 800 patents with its own brand.

The Dahua-branded products sold by Setik Srl could eventually be delivered as OEM: this means that the items are absolutely original and made by Dahua, but characterized by a different aesthetic look reserved for the online market (generally as far as the logo and the package are regarded).

This has no effects on the warranty and on the technical specifications nor even on the possible updates and functionalities, because the products are authentic Dahua’s ones.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. is one of the leading solution providers in video surveillance industry, with more than 13,000 employees and 35 active branches all over the world.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-03-19 12:15:55 [link_rewrite] => dahua [meta_title] => Best Dahua Products: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua, dahuatech, dahua distribution, dahua national supplier [meta_description] => Dahua, TVCC manufacturer, IP, Analogue and SDI,HD-CVI [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


DAHUA: LOSS LEADER×


 INCREDIBLE DISCOUNTS
on a selection of DAHUA products
 Check out the promo now >>

DAHUA 8X8×


  DAHUA 8MEGAPIXEL
8MEGAPIXEL CAMERAS WITH

 QUANTITY DISCOUNT   AND  FREE SHIPPING!
 DISCOVER THEM NOW >>

CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

KIT-THERMAL-DAHUA

HAVE YOU ALREADY TAKEN A LOOK AT THE DAHUA THERMAL KIT?

Everything you need for 360 ° security!

Description Product Details Data Sheet Further Details Download

IP THERMAL BULLET CAMERA + VISIBLE DAHUA PROFESSIONAL - DOUBLE OPTICAL - DOUBLE SENSOR - WIFI - IP67 - POE

Made by Setik
DAHUA - TPC-BF1241P-D10F12-WIFI - H.265 ONVIF® PoE IP Thermal Camera + Professional Dahua - ONVIF® - Dual-Lens (10mm thermal / 12mm visible) - Resolution 4MP (visible optics) - 1x CMOS 1 / 2.8 "for the visible camera - IR illuminator 1 LED 30m - Motion Detection - ROI - Audio 1in / 1out - Alarm 1in / 1out - DWDR - RS485 - HLC - 2D / 3D DNR Digital Noise Reduction - AGC Automatic and manual - Day / night with manual filter removable (auto / manual, color and black and white) - MicroSD slot up to 256GB - WIFI 2.4Ghz - PoE - IP67 protection ideal for outdoor use - 6kV protection against lightning and 8kV anti-electrostatic - Deterrence : White light - RJ45 Ethernet 10 / 100M

Product details

  • ONVIF® PoE IP thermal + visible Dahua bullet camera professional
  • ON BOARD: Deterrence : White Light
  • Dual-Lens technology, dual optics (Thermal 10mm / Visible 12mm)
  • Dual-Sensor technology , dual sensor (Uncooled VOx Microbolometer - thermal / 1 / 2.8 "2M CMOS - visible)
  • Resolution 256x192 @ 25Fps (thermal optics) / Up to 1080P 2MP @ 25fps (visible optics)
  • Visual spectrum from 8 μm – 14 μm
  • Sensitivity <50mK
  • ROI, Motion Detection
  • Remote viewing with Smart PSS, DSS
  • Smart IR illuminator 30m
  • Alarm: 1 input and 1 output209 m

Further details

Standard ONVIF® Onvif, the absolute standard for IP cameras. Being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera for its own sake that can never be used together with recording systems
PoE power supply

The advantage of a PoE camera is obvious, it allows it to be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power supply system, a PoE camera guarantees constant voltages and simple installation.


This camera is a THERMAL CAMERA, with Sensitivity 40mK and visual spectrum from 8 to 14µm.


This camera has advanced intelligent functions:
- Fire detection and alarm


Dual-Lens Technology!
This camera is equipped with 2 optics , one 10mm thermal and one 12mm visible




Dual-Sensor Technology!
This camera is equipped with 2 image sensors:
Uncooled VOx sensor technology, for thermal optics.
1 / 2.8 "4MP CMOS, for visible optics.


4MP resolution

This camera features a 4 Megapixel resolution!

3D-DNR function

3D-NR is the most advanced version of Noise Reduction management, it allows still images in the presence of low light and in movement, The currently most powerful solution to obtain the maximum results in the presence of low light.

Esempio funzione 3D-DNR
Deterrenza attiva

Camera with active deterrence:

Report intruders with built-in white light !

Illuminatore IR fino a 30mt

Infrared IR illuminator with a range of up to 30m.


This camera is also equipped with SMART IR technology.
Through this technology, the light emitted by the LEDs is adapted according to the framed object. SmartIR.jpg

AGC Automatic Gain Control function AGC is an integrated signal amplifier that allows viewing even in critical conditions. It is automatic and does not require specific settings.

D-WDR (Digital Wide Dynamic Range) is the Software solution of the most powerful WDR integrated in the DSP, exactly as it happens for the digital zoom compared to the Optical Zoom, it is a software simulation of emulation of the WDR technology, however extremely useful in circumstances of strong contrast.

ROI function This camera is equipped with the ROI function.

The images deriving from IP cameras are “compressed”, consequently the quality is set during the recording phase. Especially on cameras with a very high resolution, it is often necessary to reduce the quality in order to guarantee a reduced bandwidth occupation and record a greater number of days or cameras.
The ROI allows you to define areas where you can set a higher quality (for example a door, the area where the plate usually passes, an exit, etc.). In that area I can set a higher quality thus guaranteeing a greater definition of the image.
Ultra Smart Funzione ROI
This DVR features 2 RJ-45 ports (10/100 / 1000Mbps)
Network interface 1x LAN 10 / 100Mb RJ45 (PoE)
WIFI SUPPORT

This device is equipped with WIFI connection technology:

Standard No.:802.11
Frequency: 2.4GHz
Transmission rate: 150Mbps
Transmission distance: 150m (without interference or barriers)

Full HD It is extremely useful to have Inputs / Outputs in a CCTV system in order to control relays or activate a recording following an event.
This camera has 1 input and 1 output.
Ingresso Audio This camera has 1 inputs + 1 audio output
Video Compression H.265

This camera features Video compression in H.264 and H.265 format, the new Standard for video compression!

Day / Night Function Icon Day / Night: allows you to adapt the lens to night / day vision, and the relative automatic management of the IR illuminator, when present.
Example Day / Night function
Funzione IR Cut Filter

The IR CUT FILTER is a mechanical filter that allows a correct visualization of the images in daytime viewing conditions, filtering the typical infrared frequencies, thus improving the image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.

Esempio Funzione IR Cut Filter

Funzione ROI This camera is equipped with the ROI function.

The images deriving from IP cameras are “compressed”, consequently the quality is set during the recording phase. Especially on cameras with a very high resolution, it is often necessary to reduce the quality in order to guarantee a reduced bandwidth occupation and record a greater number of days or cameras.
The ROI allows you to define areas where you can set a higher quality (for example a door, the area where the plate usually passes, an exit, etc.). In that area I can set a higher quality thus guaranteeing a greater definition of the image.
Ultra Smart Funzione ROI
Funzione Motion Detection This camera features the Motion function by connecting it to a recording device having alarm inputs.


RS485 supported for device control.

MicroSD Recording

Possibility to insert Micro SD up to a maximum of 256GB - not included

Protezione IP67 contro polveri e immersioni Protection level IP67 (Dust / Diving)

Dual Encoding This product is covered by a 24 month warranty.

Download

Download the English brochure
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
