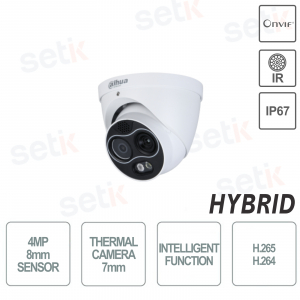

Thermal camera outdoor dome Dahua TPC-DF1241-D3F4, Dual-Lens, optical therm al 7mm + 8mm, CMOS sensor visible optics from 4MP, IR Illuminator 30mt, 1x + 1x Audio output, input 1x + 1x Out Alarm, BLC, HLC, 2D / 3D-DNR, DWDR, AGC, day / night, RS-485, 1 microSD card slot, ROI, intelligent functions, A LARM fire, recognition of vehicles and people, intrusion detection. Onvif and PoE, IP67
FIND INSTALLER
€1,023.14
€2,325.32 -56%LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!
HYBRID THERMAL DOME CAMERA WITH DOUBLE OPTICS, VIDEO ANALYSIS AND FIRE ALARM
Dahua TPC-DF1241-D3F4 outdoor thermal dome camera
1x input + 1x Audio output, 1x input + 1x Alarm output, RS-485, 1 microSD-Card slot up to 256Gb (not included), ROI, BLC, HLC, 2D / 3D-DNR, DWDR, AGC, day / night
Smart functions , fire detection function , vehicle and person recognition, intrusion detection - Onvif and PoE, IP67e - 24 month warranty
| THERMAL DETECTION |
|---|
  |
Product details
- Hybrid Thermal Motorized Speed Dome Camera - Dahua
- Dual-Lens technology, dual thermal 7mm / visible 8mm optics
- 4MP CMOS sensor
- Resolution 256 x 192 (thermal optics) / 2336 × 1752 ( visible optics )
- Visual spectrum from 8 to 14? M
- Integrated Video Analysis (Line Crossing, Intrusion, Object Detection (People / Vehicles), Fire Detection & Smoke Detection Alarm, etc.)
- People detection up to 292m
- Mobile vehicle detection up to 778m
- Sensitivity 50mK
- ROI, Motion Detection, BLC, HLC, 2D / 3D-DNR, DWDR, AGC, day / night
- IR illuminator up to 30 meters
- 1 inputs and 1 alarm output
- 1 audio input and 1 audio output
- 1 microSD-Card slot up to 256GB
- PoE protocol
- Power supply NOT included

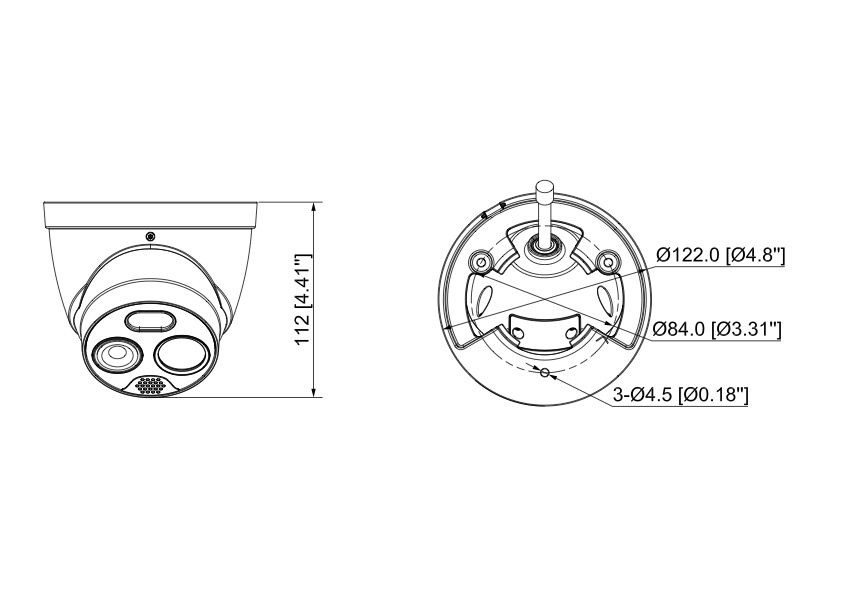

- Dimensions 122 mm × 122 mm × 112 mm (4.8 "× 4.8" × 4.41 ")
- Material: Metal
- 24 months warranty
Data sheet
| Model | TPC-DF1241-D3F4 |
| Thermal Camera | |
| Sensor Type | Vanadium Oxide Uncooled FPA |
| Effective Pixels | 256 (H) x 192 (V) |
| Pixel Size | 12um |
| Thermal Sensitivity | <50mK (@ f / 1.0, 25Hz, 300K) |
| Spectral Range | 8 ~ 14um |
| Focus Length | 7mm |
|
Effective Distance |
Man (1.8m * 0.5m): Detection: 292m Vehicle (4.0m * 1.4m): Detection: 778m |
|
Field Of View |
H: 24 °, V: 18 ° |
| Close focus distance | 1.0 m (3.28 ft) |
| Openings | F1.0 |
| Digital Detail Enhancement (DDE) |
Yes |
| Digital Zoom | 16 × |
| AGC | Car; Manual |
| Noise Reduction | 2D NR; 3D NR |
| Image Flip | 90 °; 180 °; 270 ° |
| Color Palettes | 18 (Whitehot / Blackhot / Ironrow / Icefire / Fusion / Rainbow / Globow / Iconbow1 / Iconbow2, etc.) |
| Fusion Mode | 3 (Warm color; cool color; Ironred) |
| Visible Camera | |
| Image Sensor | 1 / 2.7 '' 4MP CMOS |
| Effective Pixels | 2336 × 1752 |
| Electronic Shutter Speed | 1/30000 s – 1 s |
|
Minimum Illumination |
Color: 0.05 Lux Black & white: 0.005 Lux 0 Lux (IR on) |
|
IR Distance |
≥30 m (98.43 ft) |
|
IR On / Off Control |
Auto / Manual |
| Focus Length | 8mm |
|
Max Aperture |
F2 |
|
Field Of View |
H: 33.4 ° V: 25 ° D: 41.9 ° |
|
Focus control |
Fixed |
| Close Focus Distance | 2.5 m (8.2 ft) |
| Day / Night | Auto (ICR); Color and B / W |
| BLC | Yes |
| WDR | DWDR |
| HLC | Yes |
| White Balance | Auto / Manual / Indoor / Outdoor / Tracking / Street lamp / Natural |
| AGC | Car; Manual |
| Noise Reduction | 2D NR; 3D NR |
| S / N Ratio | ≥ 55 dB |
| Region of Interest (RoI) | Yes |
| Image Flip | 90 °; 180 °; 270 ° |
| Exposure Compensation | Yes |
| Intelligence | |
| General Intelligence | Tripwire, Intrusion |
| Advanced Intelligence | Fire Detection & Alarm Cold & Hot Spot Trace Human & Vehicle Classification Smoking Detection Call Detection |
| Video and Audio | |
| Video Compression | H.265 / H.264M / H.264H / H.264B / MJEPG |
| Resolution | hermal: Main Stream: 1280 × 960 (1.3M) / XVGA (1024 × 768) / VGA (640 × 480) / 256 × 192, 1280 × 960 by default Sub Stream: VGA (640 × 480) / 256 × 192, 256 × 192 by default Visual: Main Stream: 2336 × 1752 / 1080P (1920 × 1080) / 720P (1280 × 720) / D1 (704 × 576), 2336 × 1752 by default Sub Stream: 720P (1280 × 720) / D1 (704 × 576) / CIF (352 × 288), 352 × 288 by default |
| Frame Rate |
Thermal |
| Audio Compression | G.711a; G.711mu; PCM |
| Network | |
| Protocol | HTTPS; HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4 / v6; SNMP; QoS; UPnP; NTP |
| Edge Storage | Micro SD card (256G) |
| Interoperability | ONVIF®; CGI |
| Browser | IE: IE8 and the later, and explorer with IE core Google: 42 and the earlier Firefox: 42 and the earlier |
| User / Host | 10 |
| Security | Authorized username and password; attached MAC address; encrypted HTTPS; IEEE 802.1x; controlled network access |
| Certification | |
| Certifications | CE: EN55032: 2015; EN61000-3-2: 2014 FCC: CFR 47 FCC Part15 subpart B; ANSI C63.4-2014 |
| Port | |
| Network | 1 10M / 100M Ethernet port (RJ-45) |
| Audio Input | 1 |
| Audio Output | 1 |
| Alarm Input | 1 |
| Alarm Output | 1 |
| RS-485 | 1 |
| Power | |
| Power Supply | 12V ± 20% DC / PoE |
| Power Consumption | Basic: <6.5W (LED off) Max: <13W (LED on, heater on) |
|
Environment |
|
| Operating Temperature | –30 ° C to + 60 ° C (–22 ° F to + 140 ° F) |
| Storage Temperature | –30 ° C to + 70 ° C (–22 ° F to? 158 ° F) |
| Operating Humidity | ≤ 95% |
| Protection | IP67, anti-surge 6kV, anti-elctrostatic 6kV (touched by objects), anti-elctrostatic 8KV (air) |
| Structure | |
| Product Dimensions | 122 mm × 122 mm × 112 mm (4.8 "× 4.8" × 4.41 ") |
| Packaging Dimensions | 155 mm × 155 mm × 135 mm (6.10 "× 6.10" × 5.31 ") |
| Net Weight | ≤ 0.85 kg (1.87 lb) |
| Gross Weight | ≤ 1 kg (2.20 lb) |
Further details
 |
Thermal Camera ... what is it? and how to choose it? |
 |
Onvif, the absolute standard for IP cameras. Being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera for its own sake that can never be used together with recording systems |
  |
This camera is a THERMAL CAMERA .
Visual spectrum from 8 to 14µm
|
  |
Dual-Lens Technology! - People detection up to 292m - Detection of mobile vehicles up to 778m  |
 |
The advantage of a PoE camera is obvious, it allows it to be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power supply system, a PoE camera guarantees constant voltages and simple installation. |
|
|
This camera features SMART DETECTION - Intrusion - Person / Vehicle Classification - Smoke Detection - Detection of hot and cold areas - Fire & alarm detection
|
  |
This camera can detect the presence of fire
|
  |
This camera has 1 BNC Video Output |
 |
This camera with 1 inputs and 1 alarm output |
 |
This camera has 1 inputs + 1 audio output |
 |
IP67: Guarantees protection from dust and water jets (rain) |
 |
Day / Night: allows you to adapt the lens to night / day vision, and the relative automatic management of the IR illuminator, when present.  |
 |
D-WDR (Digital Wide Dynamic Range) D-WDR (Digital Wide Dynamic Range) is the Software solution of the most powerful WDR integrated in the DSP, exactly as it happens for the digital zoom compared to the Optical Zoom, it is a software simulation of emulation of the WDR technology, however extremely useful in circumstances of strong contrast.  |
 |
The IR CUT FILTER is a mechanical filter that allows a correct visualization of the images in daytime viewing conditions, filtering the typical infrared frequencies, thus improving the image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies. |
 |
BLC (Back Light Compensation): it is one of the 3 possible steps in the management of images with contrast, typical situations are: entrances or exits from parking lots, license plates, special lights, entrances with shots from inside to outside, etc. Light compensation is one of the most complex operations possible, the BLC function allows a discreet adaptation to these situations  |
 |
This camera is equipped with the ROI function. The images deriving from IP cameras are “compressed”, consequently the quality is set during the recording phase. Especially on cameras with a very high resolution, it is often necessary to reduce the quality in order to guarantee a reduced bandwidth occupation and record a greater number of days or cameras. The ROI allows you to define areas where you can set a higher quality (for example a door, the area where the plate usually passes, an exit, etc.). In that area I can set a higher quality thus guaranteeing a greater definition of the image.  |
 |
This camera features the Motion function by connecting it to a recording device having alarm inputs. |
 |
Possibility to insert Micro SD up to a maximum of 256Gb |
 |
This camera was made of metal |
 |
This product is covered by a 24 month warranty. |
