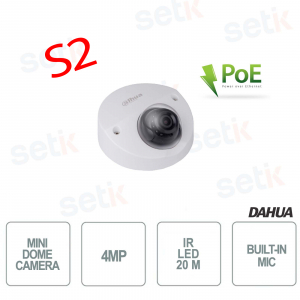

Mini Dome Camera 4MP-Onvif PoE-Face Detection-IR 20M - Version S2 - Dahua

Mini Dome Camera 4MP-Onvif PoE-Face Detection-IR 20M - Version S2 - Dahua
-56%

IPC-HDBW4431F-M12 Dahua Outdoor 4 MP ONVIF PoE Mini Dome Camera. Resolution 2688x1520, 4 Megapixel 1/3 "CMOS, 2.8 mm fixed lens. Video compression up to H.265 +, Intelligent Detection (IVS): Intrusion, Line crossing. Facial recognition . Abandoned / missing object. WDR 120 dB , Day / night (ICR), 3DNR, AWB, AGC, BLC. Illuminator 10 Led 20 meters. MicroSD slot up to 128 GB, Built-in microphone. Protection IP67, IK10. Supports PoE. S2 version Dahua Technology



Reference: IPC-HDBW4431F-M12-S2

Brand: Dahua

FIND INSTALLER

€227.07

€516.06 -56%
taxes included
Tax included
 Available in 5 days
 starting

LO HAI TROVATO A MENO?

Scrivici dove e ti sconteremo la differenza fino a fine mese!

meno


OUTDOOR MINI DOME CAMERA - 4 MEGAPIXELS - INTELLIGENT DETECTION - S2 VERSION - DAHUA

Dahua Outdoor Mini Dome Camera - Dahua | S2 version
4 Megapixel resolution - 2.8mm optics - 1/3 "CMOS - Compression up to H.265 + - Intelligent detection (IVS): Intrusion, Line crossing - Face recognition
IR Illuminator 10 LED 20M - Day / Night (ICR) - WDR 120dB - BLC - Built-in microphone - microSD slot - Supports PoE
Intelligent detection - IP67 and IK10 protection - Power supply NOT included

Product details

Mini Dome camera 4mp Dahua
  • Outdoor Mini Dome Camera - Dahua
  • 4 Megapixel 4MP resolution
  • S2 version
  • 2.8mm fixed lens
  • 1/3 ” CMOS sensor
  • Dual-stream H.265 and H.264 encoding
  • Video compression up to H.265 +
  • Triple Stream
  • WDR 120 dB, Day / night (ICR), 3DNR, AWB, AGC, BLC, ONVIF®
  • Smart IR 10 LED 20MT illuminator
  • Supported Intelligent Detection (IVS)
  • Multiple Network Monitoring: Web Viewer, CMS (DSS / PSS) and DMSS
  • MicroSD slot up to 128 GB
  • IP67 / IK10 protection
  • Support PoE
  • Power supply NOT included
  • 24 months warranty

Data sheet

Model IPC-HDBW4431F-M12-S2
Room
Image Sensor 1/3 ”4Megapixel progressive scan CMOS
Effective Pixel 2688 (H) x1520 (V)
RAM / ROM 512MB / 32MB
Scanning System Progressive
Electronic Shutter speed Electronic Shutter Speed
Min. Illumination

0.08Lux / F2.0 (Color, 1 / 3s, 30IRE)

0.3Lux / 2.0 (Color, 1 / 30s, 30IRE)

0Lux / F2.0 (IR on)

S / N Ratio More than 50dB
IR Distance Distance up to 20m (66ft)
IR On / Off Control Auto / Manual
IR LEDs 10
Lens
Lens Type Fixed
Mount Type Board-in
Focal Length 2.8 mm (3.6mm, 6mm optional)
Max. Aperture F2.0 (F2.0, F2.0)
Angle of View H: 104 ° (87 °, 55 °), V: 57 ° (48 °, 31 °)
Optical Zoom N / A
Focus Control Fixed
Close Focus Distance N / A
Pan / Titlt / Rotation Range
Pan / Tilt / Rotation Range Video Interface N / A
Audio Interface Built-in Mic
RS485 N / A
Alarm

N / A

Eletrical
Power Supply DC12V, PoE (802.3af) (Class 0)
Power Consumption <4.5W
Enviromental
Operating Conditions -30 ° C ~ + 60 ° C (-22 ° F ~ + 140 ° F) / Less than 95% RH
Strorage Conditions -30 ° C ~ + 60 ° C (-22 ° F ~ + 140 ° F) / Less than 95% RH
Ingress Protection IP67
Vandal Resistance IK10
Construction
Casing Metal
Dimensions Φ106mm × 50.3mm (4.17 "× 1.98")
Net Weight 0.4kg (0.88lb)
Gross Weight 0.44kg (0.97lb)

Further details

Questo prodotto rispetta lo standard Onvif

All Onvif , the absolute standard for IP cameras, being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera as an end in itself that can never be used together with recording systems

This camera is ONVIF® compatible

Resistenza alle vibrazioni

certifica en50155

Connettore aviation

SHOCKPROOF - EN50155

Vibration is unavoidable in mobile installations.

In order to avoid image or connection errors, the hardware structure of the mobile camera is impact resistant with the certification of EN50155 . In addition, the mobile camera adopts M12 aviation connector for stable connection with MCVR.

Dettaglio Connettore aviation
PoE power supply The advantage of a PoE camera is obvious, it allows it to be powered with the same cable with which it communicates without bringing additional power cables and without having to install a separate power supply system, a PoE camera guarantees constant voltages and simple installation.

Codifica video Smart H.265+

Smart H.265 +

Smart H.265 + is the optimized implementation of the H.265 codec which uses a scene adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference frame and intelligent noise reduction useful for delivering high quality video without straining the network.

Smart H.265 + greatly reduces bit rate and storage requirements compared to standard H.265 compression

Video compressione Smart H.265+

Risoluzione 4MP

This camera features a resolution of 4Megapixel 4 MP!

1/3 "CMOS sensor

Ottica fissa

This camera features a 2.8mm fixed lens

Main Stream: 4M (1 ~ 25 / 30fps)

Sub Stream: D1 (1 ~ 25 / 30fps)

Third Stream: 720P (1 ~ 25 / 30fps)

Illuminatore IR fino a 20mt

Infrared illuminator with approximate maximum range of 20Mt

This camera is also equipped with SMART IR technology.
Through this technology , the light emitted by the LEDs is adapted according to the framed object.

Full HD

Remote visibility on mobile using the Dahua DMSS application.

This camera provides VIDEO ANALYSIS (IVS):

- Line crossing recognition
- Intrusion recognition

Attraversamento linea

This camera features INTELLIGENT FUNCTION:

- Facial detection

ULTRA WDR up to 120dB
WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light / shadow contrast. Fundamental in the case of shots from the inside out, license plates, shaded spots or all situations where there is no homogeneity of light.
Day / Night Function Icon Day / Night: allows you to adapt the lens to night / day vision, and the relative automatic management of the IR illuminator, when present.
Example Day / Night function
Funzione IR Cut Filter

The IR CUT FILTER is a mechanical filter that allows a correct display of images in daylight viewing conditions, filtering the typical infrared frequencies, thus improving the image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.

Esempio Funzione IR Cut Filter

Funzione Backlight compensation

BLC (BACK LIGHT COMPENSATION) is one of the 3 solutions for managing images with contrast. The BLC function allows a discreet adaptation to all those situations where shooting is difficult (entrances or exits of parking lots, registration of license plates, presence of special lights etc ...).
immagine esempio funzione Backlight compensation

Funzione AGC Automatic Gain Control

AGC is an integrated signal amplifier that allows vision even in critical conditions. It is automatic and does not require specific settings.
Esempio Funzione Automatic Gain Control

Funzione 3D-DNR

3D-NR is the most advanced version of Noise Reduction management, it allows still images in the presence of low light and in movement, The currently most powerful solution to obtain the maximum results in the presence of low light.

Esempio funzione 3D-DNR
Slot MicroSD Card

Possibility to insert Micro SD up to a maximum of 128Gb

Protezione IP67 contro polveri e immersioni Protection level IP67 (Dust / Diving)

IK 10 is the highest level of protection from direct damage. This allows the camera to be used even if there is a risk of vandalism

12V 3A power supply Power supply NOT included
12V DC power supply
Italian Guarantee Icon This product is covered by a 24 month warranty.

Download

Download the English brochure
Dimensioni Mini Camera Dome Dahua
