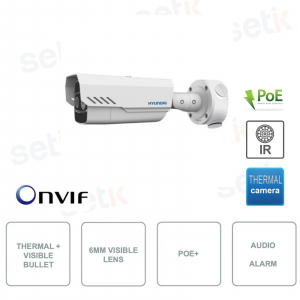

HYU-555 - Thermal Bullet Camera + PoE Visible - 6mm Visible Lens - IR 30m - Audio - Alarm - Outdoor

HYU-555 - IP PoE ONVIF Bullet camera for Hyundai thermal video surveillance, for outdoor use, with 7mm thermal focal distance - 6mm visible camera lens - 30m IR illumination - 1 / 2.8 2MP CMOS, 2in / 2out alarm, 1in / 1out audio , Video Analysis: detection of people and vehicles, intrusion, line crossing, region entry and exit - microSD slot up to 128GB (not included), WDR digital, 3D-DNR, PoE + support, Litghtning-proof 6kV, IP67 splash protection water and dust - Includes wall support and tube base - Hyundai Nextgen

Reference: HYU-555

Brand: Hyundai Security

FIND INSTALLER

https://www.setik.biz/en/cameras/6508-hyundai-security-hyu-555-hyu-555-thermal-bullet-camera-poe-visible-6mm-visible-lens-ir-30m-audio-alarm-outdoor.html

€2,589.63

taxes included

ARE YOU A PROFESSIONAL OF THE SECTOR?
REGISTER TO ACCESS YOUR LIST

Quantity

Available in 5 days

Hyundai Security

Description Product Details Data Sheet Further Details Download

THERMAL + VISIBLE BULLET CAMERA - POE ONVIF® - 2 MEGAPIXEL - AUDIO - ALARM - HYUNDAI - IR 30m

HYU-555 - Hyundai - Thermal Bullet Camera + Hyundai Outdoor Visible - ONVIF® PoE -
IR up to 30m - Thermal camera lens 7mm - Visible camera lens 6mm - CMOS 1 / 2.8 "2MP - Audio 1in / 1out - Alarm 2in / 2out - MicroSD slot up to 128GB (not included) - Lightning-proof 6kV - Day / night (ICR) - Video compression up to H.264 - Up to 32 users on 3 levels of administration - Video Analysis: detection of people and vehicles, intrusion, line crossing, region entry and exit - Reset Button - BNC outputs - PoE + - Dual Stream for thermal and visible camera - 1x RJ45 10/100 self-adaptive - Wall mount and tube base included - Hyundai 3-year extended warranty! - IP67 protection - Ideal for outdoor use - HYUNDAI - HYU-555

Product details

HYUNDAI CATALOG: Are you looking for a HYUNDAI product but couldn't find it on our site? Don't worry, we can supply you with ALL Hyundai products: consult the CATALOG or contact us by email.
THERMAL DETECTION

HYUNDAI CATALOG:

Are you looking for a HYUNDAI product but couldn't find it on our site?

Don't worry, we can supply you with ALL Hyundai products: consult the CATALOG or contact us by email.

THERMAL DETECTION

	All Onvif , the absolute standard for IP cameras, being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera for its own sake that can never be used together with recording systems This camera is ONVIF® compatible
	The advantage of a PoE camera is obvious, it allows it to be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power supply system, a PoE camera guarantees constant voltages and simple installation.
	This camera is equipped with 6mm fixed lens, for the visible camera , and 7mm lens for the thermal camera. People detection : 182 meters, recognition: 46 meters, identification: 23 meters Vehicle detection : 559 meters, recognition: 140 meters, identification: 70 meters
	This camera is a THERMAL CAMERA . Sensitivity <50mK
	This camera features a resolution of 1920x1080 FULL-HD 1 / 2.8 "2 megapixels CMOS sensor
	IR illuminator with maximum range up to 30 meters.
	More advanced version of the NOISE REDUCTION management. It allows still images in both low light and movement. Currently the most powerful solution for obtaining maximum results in low light conditions.
	D-WDR (Digital Wide Dynamic Range) is the Software solution of the most powerful WDR integrated in the DSP, exactly as it happens for the digital zoom compared to the Optical Zoom, it is a software simulation of emulation of the WDR technology, however extremely useful in circumstances of strong contrast.
	The advantage of a PoE camera is obvious, it allows it to be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power supply system, a PoE camera guarantees constant voltages and simple installation.
	This camera has advanced smart features: - People and vehicle detection: Detection (140m), recognition (35m), identification (18m) for people Survey (429m), recognition (107m), identification (54m) for vehicles Video Analysis: - intrusion; - line crossing; - entry and exit from the reference region. Maximum number of selectable rules: 8.
	This camera has 2 alarm inputs and 2 alarm outputs.
	This camera has 1 input + 1 audio output
	Possibility to insert Micro SD memory cards up to 128GB (not included in the package).
	IP67: This standard guarantees protection against dust and against splashes of water and dust.
	This camera features a metal manufactured housing.
	This product is covered by a 3 Year Warranty!

Data sheet

Model

HYU-555

Thermal chamber

Uncooled FPA (focal plane arrays) sensor with vanadium oxide
Thermal resolution equal to 160x120
Pixel range: 25μm
Thermal sensitivity (NETD): <50mk (@ 25 ° C, f / 1.0)
Spectrum range: 8μm ~ 14μm
Focal distance (thermal): 7 mm
Viewing angle (thermal): 33.9 ° x 25 °
Minimum focusing distance of 0.8 meters
Effective distance in people: Detection (140m), recognition (35m), identification (18m)
Effective Distance in Vehicles: Detection (429m), Recognition (107m), Identification (54m)
15 adjustable color palettes, 3D-DNR
Improvement of the dynamics of details
Supports VCA rules (intrusion, line crossing, region entry and region exit), maximum 8 rules
Temperature range of -20 ° C ~ + 150 ° C
Temperature accuracy: ± 8 ° C
Supports 3 types of temperature measurement rules, 21 rules (10 points, 10 reasons and 1 line)
Support 10 fire detection points

Visible room

Image sensor (visible camera) CMOS 1 / 2.8 Progressive Scan of 2 megapixels
Effective Pixels: 1920 x 1080
Infrared illumination of 30 meters
Minimum Illumination: 0.002 lux F1.5 (color) / 0.0002 lux F1.5 (B / W) / 0 lux IR On
Focal distance (visual optics): 6 mm
Viewing angle (visible optics): 52.8 ° x 30 °
Removable mechanical filter
Digital WDR
It supports bi-spectrum image merging, image previewing and image switching

IP communication and integration

Compression formats: H.264 / MJPEG / H.264 + (baseline / main / high profile)
Dual stream thermal camera:
Stream 1 thermal chamber: 160x120 (50 ips)
Stream 2 thermal chamber: 160x120 (50 ips)
Dual stream visible camera:
1 visible camera stream: 1080P / 1.3MP / 720P (25 ips)
Stream 2 visible camera: D1 / CIF / QCIF (25 ips)
Audio signal compression: G.711u / G.711a / G.722.1 / MP2L2 / G.726 / PCM
1 RJ45 10 / 100M port, self-adaptive
Supported communication protocols: IPv4 / IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
Up to 20 simultaneous views
Up to 32 users, 3 levels: administrator, operator, users
Compatibility API, ONVIF®, PSIA, ISAPI, and third party management gateway
Compatible with IE7 +, Chrome18 +, Firefox5.0 +, Safari5.02 + navigators
2 alarm inputs / 2 outputs
1 audio input / 1 output
Reset button
MicroSD / SDHC / SDXC card slot (up to 128GB), with support for manual or alarm recording
BNC outputs 1.0V [pp] / 75Ω (PAL / NTSC)

Electric and environmental

Power supply: 24V AC, 12V DC, PoE +
Operating temperature of -40 ° C ~ + 60 ° C
Relative humidity: ≤90% (non-condensing)
Degree of protection IP67
Lightning-proof of 6KV

Physical characteristics

Metal casing
Dimensions: 314 x 104 x 292.7 mm
Weight: 1.55 kg
Includes wall support and tube base
Note:
The actual distance values shown are approximate values and should be used as an estimate. Consult your sales representative for the recommended detection distances with our Vaelsys perimeter system.
