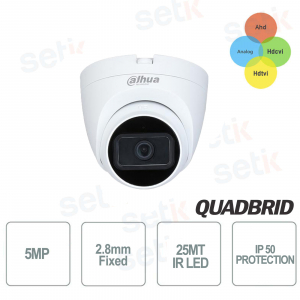

Dahua 5 MP Hybrid 4in1 Video Surveillance Camera 2 IR LEDs 2.8 MM

BEST SELLER -58%

Dahua surveillance camera HAC-HDW1500TRQ-S2 S2 version with 4 technologies in 1: HDCVI / HDTVI / AHD / ANALOG Dome 5Megapixel 5 MP , 2.8mm fixed lens and 1 / 2.7 "CMOS sensor. IR illuminator 2 LED 25M, Day / Night (ICR), OSD Menu, BLC, HLC, DWDR, IP50 protection, plastic

Reference: HAC-HDW1500TRQ-S2

Brand: Dahua

EAN: 6939554951893

FIND INSTALLER

https://www.setik.biz/en/cameras/6497-dahua-hac-hdw1500trq-s2-dahua-5-mp-hybrid-4in1-video-surveillance-camera-2-ir-leds-28-mm.html

€39.97

€95.16 -58%

taxes included

ARE YOU A PROFESSIONAL OF THE SECTOR?
REGISTER TO ACCESS YOUR LIST

Quantity

Hurry up! Only a few pieces left in our warehouse!

discover the available quantity

LO HAI TROVATO A MENO?

Scrivici dove e ti sconteremo la differenza fino a fine mese!

CHRISTMAS WEEK 2024 ×

FREE SHIPPING
ON THE ENTIRE CATALOGUE!

1. Reach at least €249
2. Select FEDEX
3. Confirm code NATALE-FREE-E
4. Complete your order.
Shipping will be free of charge!

Until 10 a.m. on 27/12/2024
Code NOT combinable with other actives

Description Product Details Data Sheet Further Details Download

VIDEO SURVEILLANCE CAMERA 5 MEGAPIXEL 2.8MM 4 IN 1- DAHUA TECHNOLOGY

HD camera - Dahua
4in1: HDCVI / HDTVI / AHD / ANALOG - 5Megapixel 5 MP - 2.8mm lens - CMOS
2 LED 25M IR Illuminator - Day / Night (ICR) - OSD Menu - BLC / HLC / DWDR
IP50 protection (dust) - Power supply NOT included - 24 month warranty

Product details

Telecamera Dome con risoluzione 5MP e ottica fissa 2.8mm

- Dahua dome video surveillance camera

- 4 Technologies in 1: HDCVI / HDTVI / AHD / ANALOG

- NOT automatic technology change. It is necessary to switch via the OSD Menu of the XVR
- 5Megapixel 5 MP resolution
- 2.8mm fixed lens
- 1 / 2.7 " CMOS image sensor

- Smart IR SMD 2 LED 25M illuminator

- Day / Night (ICR), BLC / HLC / DWDR / AGC

- Video Output: 1 Channel BNC High Definition / CVBS video output (interchangeable)

- IP50 protection (dust)

- Material: Plastic

- Dimensions Φ97.1 mm × 93.0 mm (Φ3.82 "× 3.66")
- 12V DC power supply not included
- Suitable for indoor environments
- 24 months warranty

Data sheet

Model	HAC-HDW1500TRQ-S2
Room
Image Sensor	1 / 2.7 inch CMOS
Effective Pixels	2880 (H) × 1620 (V)
Pixel	5MP
Scanning System	Progressive
Electronic Shutter Speed	PAL: 1/25 s – 1 / 100,000 s NTSC: 1/30 s – 1 / 100,000 s
Min. Illumination	0.005 Lux / F1.6 30IRE, 0 Lux IR on
S / N Ratio	> 65 dB
IR Distance	25 m （82.0 ft）
IR On / Off Control	Car; manual
IR Leds	2
Lens
Lens Type	Fixed-focal
Mount Type	M12
Focal Length	2.8 mm
Max openings	F1.6
Angle of view	132 ° × 111 ° × 58 ° (diagonal × horizontal × vertical)
Close Focus Distance	0.9 m (3.0 ft)
PAN / TILT / ROTATION
Pan / Tilt / Rotation	Pan: 0 ° ~ 360 ° Tilt: 0 ° ~ 90 ° Rotation: 0 ° ~ 360 °
Video
Frame Rate	CVI: PAL: 5M @ 25 fps; 4M @ 25 fps; 1080P @ 25 fps; NTSC: 5M @ 25 fps; 4M @ 30 fps; 1080P @ 30 fps AHD: PAL: 4M @ 25 fps; NTSC: 4M @ 30fps TVI: PAL: 4M @ 25fps; NTSC: 4M @ 30fps CVBS: PAL: 960H; NTSC: 960H
Resolution	5M (2880 × 1620); 4M (2560 × 1440); 1080P (1920 × 1080); 960 H (960 × 576/960 × 480)
Day / Night	Auto switch by ICR
BLC	BLC / HLC / DWDR
WDR	DWDR
White Balance	Car; manual
Gain Control	Car; manual
Noise Reduction	2D NR
Smart IR	Yes
Mirror	Off / On
Privacy Masking	Off / On (8 areas, rectangle)
Certifications
Certifications	CE (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3- 3: 2013, EN 55024: 2010 + A1: 2015, EN 55035: 2017, EN 50130-4: 2011 + A1: 2014, EN 62368-1: 2014 + A11: 2017) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1 + CAN / CSA C22.2 No. 60950-1)
Interface
Video Output	Video output choices of CVI / TVI / AHD / CVBS by one BNC port
Electrical
Power Supply	12V ± 30% DC
Power Consumption	Max 3.0W (12V DC, IR on)
Environmental
Operating Conditions	–40 ° C to + 50 ° C (–40 ° F to 122 ° F); <95% (noncondensation)
Storage Conditions	–40 ° C to + 50 ° C (–40 ° F to 122 ° F); <95% (noncondensation)
Ingress Protection & Vandal Resistance	IP50
Construction
Casing	Plastic
Dimensions	Φ97.1 mm × 93.0 mm (Φ3.82 "× 3.66")
Net Weight	0.17kg (0.37lb)
Gross Weight	0.23kg (0.51lb)

Further details

	This camera is a QUADRIBRID (4 Integrated Technologies) These cameras are at the same time Analogue , Ahd , Hdcvi and Hdtvi .
	5MP resolution, means 12 times the resolution of a common D1 camera : It guarantees adequate resolutions for any need. 1 / 2.7 "CMOS image sensor
	This camera features a 2.8mm fixed lens
	IR illuminator with 2 LEDs and approximate range of 25 meters ADVANTAGES: - High brightness - Reduced energy consumption - Small size - Long duration
	OSD (ON SCREEN DISPLAY) allows you to define masked areas, image correction, ATR, Day / Night sensitivity, Shutter speed, White balance, light compensation and much more ... The OSD menu is multi-language Multi-Technology: The camera features 4 technologies in 1 (HDCVI, HDTVI, AHD, Analog) The technology switch is NOT automatic. It is necessary to enter the XVR OSD menu and select the technology to be used.
	Allows you to adapt the lens to Night / Day vision
	The IR CUT FILTER is a mechanical filter that allows a correct display of images in daylight viewing conditions. It filters the typical infrared frequencies thus improving the image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.
	BLC (Back Light Compensation) is one of the 3 possible steps in the management of images with contrast, typical situations are (entrances or exits from car parks, plates, special lights, entrances with shots from inside to outside, etc.) light is one of the most complex operations possible, the BLC function allows a discreet adaptation to these situations Click to enlarge
	AGC is an integrated signal amplifier that allows vision even in critical conditions. It is automatic and does not require specific settings.
	D-WDR (Digital Wide Dynamic Range) is the Software solution of the most powerful WDR integrated in the DSP, exactly as it happens for the digital zoom compared to the Optical Zoom, it is a software simulation of emulation of the WDR technology, however extremely useful in circumstances of strong contrast.
	Protection level IP50 (Dust)
	DC12V power supply NOT included in the package.
	This camera was made of plastic
	This product is covered by a 24 month warranty.
