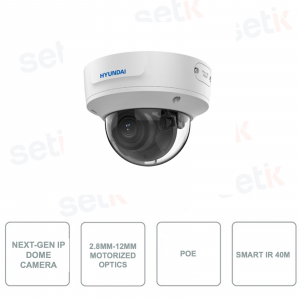

HYU-917 - IP PoE ONVIF® Dome Camera - Smart IR 40m - 4MP - 2.8-12mm motorized varifocal lens - Video Analysis
HYU-917 - Equivalent SF-IPD825ZWA-4P-HV - Hyundai - Outdoor PoE ONVIF video surveillance camera - Hyundai Dome - 1/3 CMOS sensor, with 4MP resolution and 2.8 ~ 12mm motorized varifocal lens - Smart IR illuminator 40m - Video Analysis - Line crossing - Intrusion detection - Facial recognition - WDR 120dB, 3D-DNR, Two-way audio, Alarm, RJ45 10/100M self-adaptive network interface, PoE+ - ONVIF compatible, DDNS, IP67 protection, ideal for setting up video surveillance systems .
FIND INSTALLER
HYUNDAI DOME 4 MEGAPIXEL 2.8 ~ 12MM MOTORIZED OUTDOOR CAMERA - POE+ - IP67 - SMART IR 40M - VIDEO ANALYSIS
PoE ONVIF® Dome outdoor camera - Hyundai - HYU-917
Resolution 4 MP 4Megapixel - Motorized varifocal lens 2.8 ~ 12mm - 4MP 1/3 CMOS sensor
SmartIR Illuminator 40m - Video Analysis: Line crossing, Intrusion detection, Facial recognition - WDR 120dB, 3D-DNR, Two-way audio, 1in/1out alarm, Aluminum body, Operating temperature -30 up to +60°C - Intelligent functions: Line crossing detection, intrusion and facial recognition - SD memory card slot up to 256GB - 12V DC power supply - Synchronous playback up to 6 simultaneous views - IP67 level protection.
Extended 3 Year Hyundai Warranty! - HYUNDAI SECURITY HYU-917
Product details
HYUNDAI CATALOG: Are you looking for a HYUNDAI product but couldn't find it on our website? Don't worry, we can supply you with ALL Hyundai products: consult the CATALOG or contact us by email. |
 | All Onvif , the absolute standard for IP cameras, being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera for its own sake that can never be used together with recording systems This camera supports Onvif version |
 | The advantage of a PoE+ camera is evident, it allows it to be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power supply system, a PoE camera guarantees constant voltages and simple installation |
 | This camera features a resolution of 4Megapixel 4 MP! 1/3" CMOS sensor, with 4 Megapixel resolution |
| Smart IR illuminator maximum range 40 meters. |
 | This camera features 2.8-12mm varifocal lens with Motorized Zoom |
 | This camera features SMART DETECTION:
|
 | Smart H.265+ Smart H.265+ is the optimized implementation of H.265 codec that uses scene-adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without straining the network. Smart H.265+ greatly reduces bit rate and storage requirements compared to standard H.265 compression
|
 | ULTRA WDR up to 120dB WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light/shadow contrast. Fundamental in case of shooting from inside to outside, plates, shadowed points or all situations where there is no homogeneity of light.  |
 | Day/Night: allows you to adapt the lens to night/day vision, and the relative automatic management of the IR Illuminator, when present.  |
 | The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions, filtering the typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies. |
 | Protection level IP67 ( Dust / Immersion ) |
 | This camera features two-way audio. |
 | This camera has 1 alarm input and 1 alarm output. |
 | This camera is made of ALUMINUM. |
 | Possibility to insert Micro SD up to a maximum of 256Gb (not included). |
 | A 12VDC power supply is required for the operation of this camera (not included)  |
 | This product is covered by a 3 Year Warranty! |
Data sheet
| model | HYU-917 |
| Image sensor |
1/3" CMOS sensor, with 4MP 4 megapixel resolution |
| Resolution | 4MP (2688x1520), 1080P (1920x1080), 720P (1280x720), VGA (640x480) |
| Video compression | H.265+, H.265, H.264+, H.264 and MJPEG |
| Video Streams | Triple Streams:
|
| Day/Night | Yes, with removable mechanical filter (ICR) |
| Opening | 0.005 lux F1.6 (color), 0 lux IR on |
| Smart IR | Up to 60m |
| Objective | Motorized from 2.8~12mm |
| Viewing angle | 95.8° ~ 29.2° (W), 50.6° ~ 16.4° (V), 114.6° ~ 33.4° (D) |
| imaging mode | BLC, HLC, WDR 120dB, 3D-DNR |
| Image settings | Rotation, Mirror Mode, Privacy Mask, Saturation, Brightness, Contrast, Sharpness, Gain and White Balance adjustable via client software or web browser |
| Advance | It supports video sensor, 1 region of interest (ROI) for streaming and privacy masking |
| Smart functions | Line crossing detection and intrusion detection |
| Face detection | Supported |
| Storage | MicroSD slot for cards up to 256GB (card not included) |
| Two-way audio | Supported |
| Alarm | 1 alarm input / 1 alarm output |
| Net | RJ45 (10/100M) self-adaptive interface |
| Network communication protocols | TCP / IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL / TLS, PPPoE |
| Remote viewing | With browser (IE10 / 11, Chrome 57.0+, Firefox 52.0+) and IOS and Android smartphones |
| Compliance | ONVIF® (Profile S/G), ISAPI and SDK Compliant with DDNS |
| Users | Up to 32 |
| Simultaneous views | Up to 6 |
| Diet | 12V DC (± 25%) |
| Consumption | 10.5W, 12.5W PoE |
| PoE | PoE+ (802.3af, Class 3) |
| Operating temperature | -30°C ~ +60°C |
| Relative humidity | <95% (non-condensing) |
| Protection | Degree of protection of IP67 level |
| Material | Aluminum houses |
| Dimensions | Ø153.3 x 111.6 (Al) mm |
| Weight | 880g |
