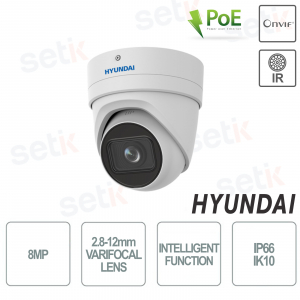

HYUNDAI 8MP Onvif PoE Outdoor IP Dome Camera Intelligent Functions IP66 IK10 2.8mm-12mm Motorized Optics
HYU-894 Hyundai 8MP outdoor dome camera and smart IR illuminator40 meters - Onvif - PoE
1 / 1.8 "8MP CMOS sensor - 2.8-12mm motorized lens - Compression up to h.265 + - Triple stream - Day / night with removable mechanical filter - 3D-DNR, BLC, HLC, WDR 120 dB - Slot microSD up to 256GB - 1x input + 1x audio output - 1x input + 1x alarm output - Advanced intelligent functions : intrusion detection, line crossing, people and vehicle classification, scene change detection (IVS) - ROI - ANR - DDNS - IP66 - IK10
FIND INSTALLER
Description Product Details Data Sheet Further Details Download
HYUNDAI 8 MEGAPIXEL DOME CAMERA 2.8-12 mm - ONVIF® - ADVANCED INTELLIGENT FUNCTIONS - SMART IR 40 MT - IP66 - IK10 - PoE
HYU-894 Hyundai Next Gen Dome 8MP outdoor camera and IR40 meter smart illuminator
Onvif - PoE - 8MP 1 / 1.8 "CMOS sensor - 2.8-12mm motorized lens
Compression up to h.265 + - Triple stream - Day / night with removable mechanical filter - 3D-DNR, BLC, HLC, WDR 120 dB - MicroSD slot up to 256GB
1x input + 1x audio output - 1x input + 1x alarm output
Advanced intelligent functions : intrusion detection, line crossing, people and vehicle classification, scene change detection (IVS)
ROI - ANR - DDNS - IP66 - IK10 - 12V DC
Product details
|
HYUNDAI CATALOG: Are you looking for a HYUNDAI product but couldn't find it on our site? Don't worry, we can supply you with ALL Hyundai products: consult the CATALOG or contact us by email. |
|
|
This camera is ONVIF® compatible Onvif, the absolute standard for IP cameras. Being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera for its own sake that can never be used together with recording systems. |
 |
This camera is equipped with 2.8-12mm motorized lens. |
 |
Smart H.265 + Smart H.265 + is the optimized implementation of the H.265 codec which uses a scene adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference frame and intelligent noise reduction useful for delivering high quality video without straining the network. Smart H.265 + greatly reduces bit rate and storage requirements compared to standard H.265 compression
|
 |
The advantage of a PoE camera is obvious: it allows it to be powered with the same cable with which it communicates without bringing additional power cables and without having to install a separate power supply system. A PoE camera guarantees constant voltages and simple installation |
 |
Stream 1: 8MP, 4MP, 6MP, 4MP, 1080P, 720P (25 ips) Stream 2: VGA / CIF (25 ips) Stream 3: 1080P, 720P, VGA (25 ips) |
 |
This camera has a resolution of 4 Megapixels 8Megapixel 1 / 1.8 "CMOS image sensor |
|
|
SMART IR illuminator with a maximum range of 40 meters! |
 |
This camera also features ADVANCED INTELLIGENT FUNCTIONS: - Intrusion
|
 |
Day / Night: allows you to adapt the lens to night / day vision, and the relative automatic management of the IR illuminator, when present.  |
 |
ULTRA WDR up to 120dB WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light / shadow contrast. Fundamental in the case of shots from the inside out, license plates, shaded spots or all situations where there is no homogeneity of light.  |
 |
BLC (Back Light Compensation): it is one of the 3 possible steps in the management of images with contrast, typical situations are: entrances or exits from parking lots, license plates, special lights, entrances with shots from inside to outside, etc. Light compensation is one of the most complex operations possible, the BLC function allows a discreet adaptation to these situations.
|
 |
1x input + 1x audio output |
 |
1x input + 1x alarm output |
 |
The IR CUT FILTER is a mechanical filter that allows a correct visualization of the images in daylight viewing conditions, filtering the typical infrared frequencies, thus improving the image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.  |
 |
This camera is equipped with the ROI function. The images deriving from IP cameras are “compressed”, consequently the quality is set during the recording phase. Especially on cameras with a very high resolution, it is often necessary to reduce the quality in order to guarantee a reduced bandwidth occupation and record a greater number of days or cameras. The ROI allows you to define areas where you can set a higher quality (for example a door, the area where the plate usually passes, an exit, etc.). In that area I can set a higher quality thus guaranteeing me a greater definition of the image.  |
 |
Protection level IP66 (Dust / Diving) |
 |
IK 10 is the highest level of protection from direct damage. This allows the camera to be used even if there is a risk of vandalism  |
 |
Possibility to insert Micro SD up to a maximum of 256Gb - not included |
 |
A 12VDC power supply is required for the operation of this camera (not included) |
 |
This product is covered by a 3 Year Warranty! |
Data sheet
| Model | HYU-894 |
| Image Sensor | 1 / 1.8 "8 megapixel CMOS |
| Digital Resolution | MP (3840x2160), 6MP (3200x1800), 4MP (2688x1520), 1080P (1920x1080), 720P (1280x720), VGA (640x480) |
| Compression | H.265 +, H.265, H.264 +, H.264 and MJPEG video compression |
| Stream | Stream 1: 8MP, 4MP, 6MP, 4MP, 1080P, 720P (25 ips) Stream 2: VGA / CIF (25 ips) Stream 3: 1080P, 720P, VGA (25 ips) |
| Minimum Illumination | 0.003 lux F1.4 (color), 0 lux IR On |
| Lens | 2.8 ~ 12mm motorized lens Viewing angle: 108 ° ~ 46 ° (H), 58 ° ~ 26 ° (V), 127.4 ° ~ 52 ° (D) |
| Day & Night | Day / Night mode with removable mechanical filter (ICR) |
| IR Illuminator | Smart IR: 40 meters |
| Imaging modes | BLC, HLC, WDR 120dB, 3D-DNR |
| Picture settings | Rotation, saturation, brightness, contrast, sharpness, gain and white balance adjustable via client software or web browser |
| Supports videosensor | Supports video sensor (with classification of people and vehicles), 1 region of interest (ROI) per stream and privacy mask |
| Intelligent function | Line crossing detection, intrusion detection, detection of entry or exit to a region, supports classification of people and vehicles Intelligent Video Detection (IVS): Detection of changes in the scene |
| Micro SD | MicroSD card slot for up to 256GB (card not included) |
| ANR | Supports ANR |
| Audio | 1 audio input / 1 output 1 alarm input / 1 output |
| Network interface | RJ45 (10 / 100M) self-adaptive |
| Netowork protocols | TCP / IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL / TLS, PPPoE, SNMP , ARP |
| Onvif | ONVIF® (Profile S / G / T), ISAPI, SDK compliant |
| Remote | Remote viewing with browsers (IE10 / 11, Chrome 57.0+, Firefox 52.0+) and IOS and Android smartphones |
| Compatible with DDNS DEMES | DDNS compliant |
| Users | Up to 32 users |
| Simultaneous displays | Up to 6 simultaneous displays |
| Power supply | 12V DC (± 25%) |
| Power consumption | 11.04W, 12.5W PoE |
| PoE | Supports PoE + (802.3 af, Class 3) |
| Operating temperature | -30 ° C ~ + 60 ° C |
| Storage temperatures | -30 ° C ~ + 60 ° C |
| Humidity | <95% (non-condensing) |
| Protection | IP67 protection rating, IK10 vandal protection |
| Material | Metal housing |
| Dimensions | Ø135.8 x 145.5 mm |
| Weight | 1.16 kg |
| 3AXIS | 0 ° ~ 355 ° (PAN), 0 ° ~ 75 ° (TILT), 0 ° ~ 360 ° (Rotation) |
