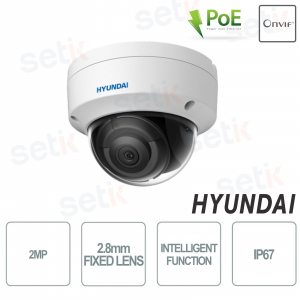

HYU-914 Hyundai outdoor dome camera from 2MP and IR illuminator 30 meters - Onvif - PoE
1 / 2.8 "2MP CMOS sensor - 2.8mm fixed lens - Compression up to H.265 + - Day / night with removable mechanical filter - 3D-DNR, BLC, HLC, WDR 120 dB - MicroSD slot up to 256GB - Functions intelligent : intrusion detection, line crossing, face detection - ROI - DDNS - IP67
FIND INSTALLER
Description Product Details Data Sheet Further Details Download
HYUNDAI DOME CAMERA 2 MEGAPIXEL 2.8 mm - ONVIF® - INTELLIGENT FUNCTIONS - IR 30 MT - IP67 - PoE
HYU-914 Hyundai dome outdoor camera 2MP and IR 30 meters illuminator
Onvif - PoE - 2MP 1 / 2.8 "CMOS sensor and 2.8mm fixed lens
Compression up to H.265 + - Day / night with removable mechanical filter - 3D-DNR, BLC, HLC, WDR 120 dB - MicroSD slot up to 256GB
Intelligent functions : intrusion detection, line crossing, face detection - ROI - DDNS - IP67 - 12V DC
Product details
|
HYUNDAI CATALOG: Are you looking for a HYUNDAI product but couldn't find it on our site? Don't worry, we can supply you with ALL Hyundai products: consult the CATALOG or contact us by email. |
|
|
This camera is ONVIF® compatible Onvif, the absolute standard for IP cameras. Being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera for its own sake that can never be used together with recording systems. |
|
|
This camera is equipped with a 2.8 mm fixed lens. |
 |
The advantage of a PoE camera is obvious: it allows it to be powered with the same cable with which it communicates without bringing additional power cables and without having to install a separate power supply system. A PoE camera guarantees constant voltages and simple installation |
 |
This camera features 2 Megapixel 1080P FULL HD resolution 1 / 2.8 "2Megapixel CMOS image sensor |
|
|
IR illuminator with maximum range 3 0 meters! |
 |
This camera also features ADVANCED INTELLIGENT FUNCTIONS: - Intrusion
|
 |
Day / Night: allows you to adapt the lens to night / day vision, and the relative automatic management of the IR illuminator, when present.  |
 |
Smart H.265 + Smart H.265 + is the optimized implementation of the H.265 codec which uses a scene adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference frame and intelligent noise reduction useful for delivering high quality video without straining the network. Smart H.265 + greatly reduces bit rate and storage requirements compared to standard H.265 compression
|
 |
ULTRA WDR up to 120dB WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light / shadow contrast. Fundamental in the case of shots from the inside out, license plates, shaded spots or all situations where there is no homogeneity of light.  |
 |
BLC (Back Light Compensation): it is one of the 3 possible steps in the management of images with contrast, typical situations are: entrances or exits from parking lots, license plates, special lights, entrances with shots from inside to outside, etc. Light compensation is one of the most complex operations possible, the BLC function allows a discreet adaptation to these situations.
|
 |
The IR CUT FILTER is a mechanical filter that allows a correct visualization of the images in daylight viewing conditions, filtering the typical infrared frequencies, thus improving the image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.  |
 |
This camera is equipped with the ROI function. The images deriving from IP cameras are “compressed”, consequently the quality is set during the recording phase. Especially on cameras with a very high resolution, it is often necessary to reduce the quality in order to guarantee a reduced bandwidth occupation and record a greater number of days or cameras. The ROI allows you to define areas where you can set a higher quality (for example a door, the area where the plate usually passes, an exit, etc.). In that area I can set a higher quality thus guaranteeing me a greater definition of the image.  |
 |
Protection level IP67 (Dust / Diving) |
 |
Possibility to insert Micro SD up to a maximum of 256Gb - not included |
 |
A 12VDC power supply is required for the operation of this camera (not included) |
 |
This product is covered by a 3 Year Warranty! |
Data sheet
| Model | HYU-914 |
| Image Sensor | 1 / 2.8 "2 megapixel CMOS image sensor |
| Digital Resolution | 1080P (1920x1080), 720P (1280x720), VGA (640x480) |
| Compression | H.265 +, H.265, H.264 +, H.264, and MJPEG video compression |
| Stream | Stream 1: 1080P, 720P (25 fps) Stream 2: VGA (25 fps) Stream 3: 720P, VGA (25 fps) |
| Minimum Illumination | 0.005 lux F1.6 (color), 0 lux IR On |
| Lens | 2.8 mm fixed optics, Angle of view: 107 ° (H), 57 ° (V), 127 ° (D) |
| Day & Night | Day / Night mode with removable mechanical filter (ICR) |
| IR Illuminator |
IR: 30 meters |
| Imaging modes | BLC, HLC, WDR 120dB, 3D-DNR |
| Picture settings | Rotation, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, and white balance adjustable via client software or web browser |
| Supports videosensor | 1 region of interest (ROI) for stream and privacy mask |
| Intelligent function | Cross-line detection and intrusion detection, Face detection |
| Micro SD | MicroSD card slot for up to 256GB (card not included) |
| Network interface | RJ45 (10 / 100M) auto adaptive |
| Netowork protocols | TCP / IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL / TLS, PPPoE |
| Onvif | ONVIF® (Profile S / G), ISAPI and SDK support |
| Remote | Remote viewing with browsers (IE10 / 11, Chrome 57.0+, Firefox 52.0+) and IOS and Android smartphones |
| Compatible with DDNS DEMES | DDNS support |
| Users | Up to 32 users |
| Simultaneous displays | Up to 6 simultaneous displays |
| Power supply | 12V DC (± 25%) |
| Power consumption | 5W, 6.5W PoE |
| PoE | Supports PoE (802.3 af, Class 3) |
| Operating temperature | -30 ° C ~ + 60 ° C |
| Humidity | <95% (non-condensing) |
| Protection | IP67 protection rating |
| Material | Metal and plastic case |
| Dimensions | Ø110.8 x 84.7 mm |
| Weight | 530 g |
| 3AXIS | 0 ° ~ 355 ° (PAN), 0 ° ~ 75 ° (TILT), 0 ° ~ 355 ° (Rotation) |
