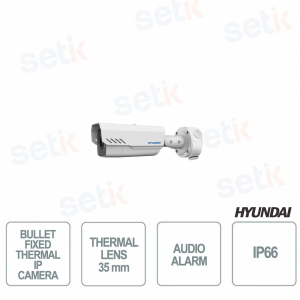

HYU-443 Hyundai Bullet Fixed Thermal IP Video Surveillance Camera with integrated GPU. Resolution 384x288, Lens 35 mm. Fire detection, AGC, 3D-DNR. BNC video output, Microphone, 1 Audio input / 1 output, 2 Alarm inputs / 2 outputs. MicroSD slot up to 128 GB. PoE + support. IP66 protection, Lightning-proof 6KV.
FIND INSTALLER
FIXED THERMAL BULLET CAMERA IP - POE + - MICROSD SLOT - HYUNDAI
Lens 35 mm - Resolution 384 x 288 - PoE + - Fire detection - Microphone - Audio - Alarm - microSD slot - Lightning-proof
Hyundai 3 Year Extended Warranty! - IP66 protection (Rain / Dust)
Product details
|
HYUNDAI CATALOG: Are you looking for a HYUNDAI product but couldn't find it on our site? Don't worry, we can supply you with ALL Hyundai products: consult the CATALOG or contact us by email. |
| THERMAL DETECTION |
|---|
|
|
 |
This camera is equipped with a fixed 35mm lens People detection : 1029 meters, recognition: 257 meters, identification: 129 meters Vehicle detection : 3157 meters, recognition: 789 meters, identification: 395 meters |
 |
The advantage of a PoE camera is obvious, it allows it to be powered with the same cable with which it communicates without bringing additional power cables and without having to install a separate power supply system, a PoE camera guarantees constant voltages and simple installation |
 |
This camera is a THERMAL CAMERA .
|
  |
This camera has advanced smart features:
|
 |
This camera has 1 input + 1 audio output |
 |
This Camera with 2x Inputs and 2x Alarm Outputs |
 |
Lightning protection. |
 |
IP66: Guarantees protection from dust and water jets (rain) |
 |
This product is covered by a 3 Year Warranty! |
Data sheet
| Model | HYU-443 | ||
| DESCRIPTION | |||
|
Thermal IP camera with built-in GPU which admits intelligent behavior analysis algorithm. It is applied for the purposes of perimeter defense and fire prevention in critical infrastructures such as: airports, trains, prisons, power plants, etc. The pre-alarm system helps to detect inexperienced events immediately. |
|||
|
FEATURES |
|||
|
FPA sensor not cooled with vanadium oxide |
|||
|
384x288 resolution |
|||
|
Thermal sensitivity (NETD): <40 mk (@ 25 ° C, f / 1.0) |
|||
|
Spectrum range: 17 μm |
|||
|
Focal distance: 35 mm |
|||
|
Viewing angle: 10.66 ° x 8.002 ° |
|||
|
Minimum focusing distance of 40 meters |
|||
|
Effective distance in people: Detection (1029m), recognition (257m), identification (129m) |
|||
|
Effective distance in vehículos: Survey (3157 m), recognition (789 m), identification (395 m) |
|||
|
AGC, 3D-DNR |
|||
|
Dynamic enhancement of details |
|||
|
14 settable pseudocolors |
|||
|
Temperature measuring distance (2x2m): 819m |
|||
|
Temperature measurement distance (1x1m): 413m |
|||
|
Fire detection distance (2x2m): 2058m |
|||
|
Fire detection distance (1x1m): 1029m |
|||
|
Adaptive AGC, DDE, 3D-DNR |
|||
|
Temperature range: -20ºC ~ + 150ºC |
|||
|
Temperature accuracy: ± 8ºC |
|||
|
15 adjustable color palettes |
|||
|
Support 10 focus detection points |
|||
|
Compression format: H.264 / MJPEG / MPEG4, H.265 + and H.264 + (baseline / main / high profile) |
|||
|
Stream 1: 384x288 (50 ips) |
|||
|
Stream 2: 384x288 (50 ips) |
|||
|
Stream 3: 384x288 (50 ips) |
|||
|
BNC output 1.0V [pp] / 75Ω (PAL / NTSC) |
|||
|
Audio compression G.711u / G.711a / G.722.1 / MP2L2 / G.726 / PCM |
|||
|
1 microphone input 3.5mm / 1 audio output |
|||
|
Confiable temperature exception alarm function |
|||
|
Ethernet: 1 self-adaptive RJ45 port (10 / 100M) |
|||
|
Protocols: IPv4 / IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE |
|||
|
Compatibility API, ISAPI, SDK, and third party management gateway |
|||
|
Up to 32 users, 3 levels: administrator, operator, users |
|||
|
Up to 20 simultaneous viewing |
|||
|
MicroSD / SDHC / SDXC card slot (up to 128GB), with support for manual or alarm recording |
|||
|
2 alarm inputs / 2 outputs (supports alarm constraint) |
|||
|
Power supply: 24V AC, 12V DC / 3A |
|||
|
Consumption: 8W (20W with heating) |
|||
|
Supports PoE + (802.3at, class 4) |
|||
|
Working temperature: -40ºC ~ + 65ºC |
|||
|
Relative humidity: ≤90% (without condensation) |
|||
|
Degree of protection IP66 |
|||
|
Lightning-proof of 6KV |
|||
|
Metal casing |
|||
|
Dimensions: 314 x 104 x 292.7 mm |
|||
|
Weight: 2 kg |
|||
|
Includes wall support and tube base |
|||
|
Note: The distance values shown are approximate values and should be used as an estimate. Consult your sales representative for the recommended detection distances with our Vaelsys perimeter system. |
|||
