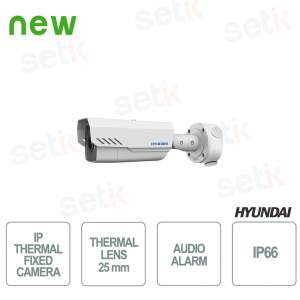

HYU-442 Hyundai Thermal Bullet IP Fixed Video Surveillance Camera with Integrated GPU. 25 mm lens . 384x288 resolution. Fire detection , BNC video output, AGC, 3D-DNR, VCA. 1 in / 1 out video, 2 in / 2 out Alarm , 1 in / 1 out Audio . MicroSD slot up to 128 GB. PoE + support. IP66 protection, Lightning-proof 6KV.
FIND INSTALLER
IP THERMAL BULLET CAMERA - ALARM - AUDIO - VCA - PoE + - HYUNDAI
Lens 25 mm - Resolution 384 x 288 - VCA - PoE + - Fire detection - 2 in / 2 out Alarm - 1 in / 1 out Audio - microSD slot
Hyundai 3 Year Extended Warranty! - IP66 protection (Rain / Dust) - Lightning-proof 6KV
Product details
|
HYUNDAI CATALOG: Are you looking for a HYUNDAI product but couldn't find it on our site? Don't worry, we can supply you with ALL Hyundai products: consult the CATALOG or contact us by email. |
| THERMAL DETECTION |
|---|
|
|
 |
This camera is equipped with a fixed 25mm lens People detection : 735 meters, recognition: 184 meters, identification: 92 meters Vehicle detection : 2255 meters, recognition: 564 meters, identification: 282 meters |
 |
This camera is a THERMAL CAMERA with integrated GPU .
|
 |
The advantage of a PoE camera is obvious, it allows it to be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power supply system, a PoE camera guarantees constant voltages and simple installation. |
 |
This Camera with 2x Inputs and 2x Alarm Outputs |
 |
This camera has 1 input + 1 audio output |
  |
This camera has advanced smart features:
|
 |
Lightning protection. |
 |
IP66: Guarantees protection from dust and water jets (rain) |
 |
This product is covered by a 3 Year Warranty! |
Data sheet
| Model | HYU-442 |
| DESCRIPTION | |
|
Thermal IP camera with built-in GPU which admits intelligent behavior analysis algorithm. It is applied for the purposes of perimeter defense and fire prevention in critical infrastructures such as: airports, trains, prisons, power plants, etc. The early warning system helps to detect inexperienced events immediately. |
|
| CHARACTERISTICS | |
|
FPA sensor not cooled with vanadium oxide |
|
|
384x288 resolution |
|
|
Thermal sensitivity (NETD): <40 mk (@ 25 ° C, f / 1.0) |
|
|
Pixel intervals: 17 μm |
|
|
Spectrum range: 8μm ~ 14μm |
|
|
Focal distance: 25 mm |
|
|
Viewing angle: 14.88 ° x 11.19 ° |
|
|
Minimum focusing distance of 13 meters |
|
|
Effective distance in people (1.8x0.5m): Detection (735m), recognition (184m), identification (92m) |
|
|
Effective distance in vehicles (1.4x4m): Detection (2255m), recognition (564m), identification (282m) |
|
|
Temperature measuring distance (2x2m): 585m |
|
|
Temperature measuring distance (1x1m): 295m |
|
|
Fire detection distance (2x2m): 1470m |
|
|
Fire detection distance (1x1m): 735m |
|
|
Adaptive AGC, DDE, 3D-DNR |
|
|
Enhance dynamics of details |
|
|
15 adjustable color palettes |
|
|
Supports 3 types of temperature measurement rules, 21 rules (10 points, 10 regions and 1 line) |
|
|
Temperature range: -20 ° C ~ + 150 ° C |
|
|
Temperature accuracy: ± 8 ° C |
|
|
Support 10 fire detection points |
|
|
Compression formats: H.265 / H.264 / MJPEG, H.265 + y H.264 + with baseline / main / high profile |
|
|
Stream 1: 384x288 (50 ips) |
|
|
Stream 2: 384x288 (50 ips) |
|
|
Stream 3: 384x288 (50 ips) |
|
|
BNC output 1.0V [pp] / 75Ω (PAL / NTSC) |
|
|
Audio compression G.711u / G.711a / G.722.1 / MP2L2 / G.726 / PCM |
|
|
1 3.5mm microphone input / 1 audio output |
|
|
Confiable temperature exception alarm function |
|
|
Ethernet: 1 self-adaptive RJ45 port (10 / 100M) |
|
|
Protocols: IPv4 / IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE |
|
|
Compatibility API, ISAPI, SDK, and third party management gateway |
|
|
Up to 32 users, 3 levels: operator administrator, user |
|
|
Up to 20 simultaneous views |
|
|
MicroSD / SDHC / SDXC card slot (up to 128GB), with support for manual or alarm recording |
|
|
2 alarm inputs / 2 outputs (supports alarm constraint) |
|
|
Power supply: 24V AC, 12V DC |
|
|
Consumption: 8W (20W with heating) |
|
|
Supports PoE + (802.3at, class 4) |
|
|
Working temperature: -40 ° C ~ + 65 ° C |
|
|
Relative humidity: ≤90% (non-condensing) |
|
|
Degree of protection IP66 |
|
|
Lightning-proof of 6KV |
|
|
Metal casing |
|
|
Dimensions: 314 x 104 x 292.7 mm |
|
|
Weight: 2 kg |
|
|
Includes wall mount and tube base |
|
|
Note: The actual distance values shown are nominal values and should be used as an estimate. Consult your sales representative for the recommended detection distances with our Vaelsys perimeter system. |
|
