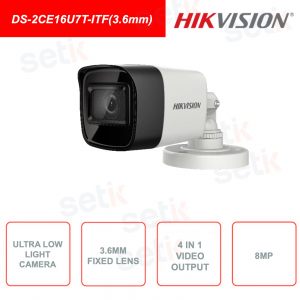

HIKVISION Camera - DS-2CE16U7T-ITF (3.6mm) - 8MP 4K UHD Ultra HD - True WDR 130dB - 4in1 (TVI / AHD / CVI / CVBS switchable output) - 3.6mm fixed lens - CMOS 8.29MP - ICR - Signal system PAL / NTSC - Manual and automatic white balance - Made of metal - IP67 protection - Ideal for setting up video surveillance systems operating in low light environments.
HIKVISION 4K TURBO HD IN PROMO! DISCOVER NOW!
discover the available quantity
|
4IN1 TECHNOLOGY: This camera is a QUADRIBRID (4 Integrated Technologies) |
| Resolution: This camera features a resolution of 8MP 8.29MP high performance CMOS sensor |
| Optics: This camera features a fixed 3.6mm lens |
|
IR Infrared Illuminator: This camera is also equipped with SMART IR technology.
|
| Day / Night: Allows you to adapt the lens to night / day vision, and the relative automatic management of the IR illuminator, when present.
|
| IR CUT FILTER (ICR): Mechanical filter that allows correct viewing of images in daytime viewing conditions. It filters the typical infrared frequencies thus improving the image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.  |
| BLC (Back Light Compensation): is one of the 3 possible steps in the management of images with contrast, typical situations are (entrances or exits from car parks, plates, special lights, entrances with shots from inside to outside, etc.) light compensation is one of the most complex possible, the BLC function allows a fair adaptation to these situations |
|
True WDR 130dB (Digital Wide Dynamic Range): |
|
IP67 protection - outdoor: |
|
Diet: |
| Model | DS-2CE16U7T-ITF (3.6mm) |
|
Room |
|
|
Image Sensor |
8.29 MP CMOS |
|
Signal System |
PAL / NTSC |
|
Frame Rate |
TVI: 8MP@12.5fps, 8MP @ 15fps, 5MP @ 20fps, 4MP @ 25fps, 4MP @ 30fps, 1080P @ 25fps, 1080P @ 30fps AHD: 8MP@12.5fps, 8MP @ 15fps CVI: 8MP@12.5fps, 8MP @ 15fps CVBS: P / N |
|
Resolution |
3840 (H) × 2160 (V) |
|
Min. Illumination |
0.003 Lux @ (F1.2, AGC ON), 0 Lux with IR |
|
Shutter Time |
PAL: 1 / 12.5 s to 1 / 50,000 s NTSC: 1/15 s to 1 / 50,000 s |
|
Lens |
3.6 mm |
|
Horizontal Field of View |
102 ° (2.8 mm), 79 ° (3.6 mm), 51 ° (6 mm) |
|
Lens Mount |
M16 |
|
Day & Night |
ICR |
|
WDR (Wide Dynamic Range) |
≥130 dB |
|
Angle Adjustment (Bracket) |
Pan: 0 ° to 360 °, Tilt: 0 ° to 180 °, Rotate: 0 ° to 360 ° |
|
Menu |
|
|
Image Mode |
STD / HIGH-SAT |
|
AGC |
Yes |
|
Day / Night Mode |
Auto / Color / BW (Black and White) |
|
White Balance |
Auto / Manual |
|
AE (Auto Exposure) Mode |
Global / BLC / HLC / WDR |
|
Noise Reduction |
3D DNR |
|
Language |
English |
|
Functions |
Brightness, Sharpness, Mirror, Smart IR |
|
Interface |
|
|
Video Output |
Switchable TVI / AHD / CVI / CVBS |
|
General |
|
|
Operating Conditions |
-40 ° C to 60 ° C (-40 ° F to 140 ° F), humidity: 90% or less (non-condensing) |
|
Power Supply |
12 VDC ± 25% * You are recommended to use one power adapter to supply the power for one camera. |
|
Power Consumption |
Max. 4.2 W |
|
Protection Level |
IP67 |
|
Material |
Metal |
|
IR Range |
Up to 30 m |
|
Communication |
HIKVISION-C |
|
Dimensions |
58 mm × 61 mm × 158.6 mm (2.28 "× 2.40" × 6.42 ") |
|
Weight |
Approx. 345 g (0.76 lb.) |
