Hikvision DS-2PT5326IZ-DE(5-50mm)(4mm) PanuVu Mini Series camera, resolution 1920x1080. Three flexible cameras/3 channels. Three 1/2.8" progressive scan CMOS panoramic camera, 4mm fixed lens, IR up to 30m. 1/2.8" progressive scan CMOS PTZ camera, 4.7mm - 47mm varifocal lens with 10x optical zoom - 8x digital zoom, IR up to 50m. microSD slot up to 256GB, Onvif support, PoE. Motion detection, digital WDR, HLC, BLC, 3D DNR, ROI. IVS Intelligent functions : Intrusion Detection, Line Crossing Detection. 1 in/1 out Audio, 1 in/1 out Alarm. Video compression h..265, IP66 protection, TVS 4000V Lightning Protection.



Reference: DS-2PT5326IZ-DE(5-50mm)(4mm)

Brand: Hikvision

FIND INSTALLER

€1,923.03

€2,958.50 -35%
taxes included
Tax included
 Available in 5 days



DS-2PT5326IZ-DE(5-50mm)(4mm) | MINI HIKVISION PTZ POE CAMERA - 3 CHANNELS - IP66 & TVS 4000V Lightning Protection

Made by Hikvision Hikvision PTZ Mini camera
Resolution: 1920x1080 - 3 Flexible Cameras - 3 Channels - Panoramic Camera 3 1/2.8" Progressive Scan CMOS Sensors - 4mm Fixed Lens - 1/2.8" Progressive Scan CMOS PTZ Camera.- 4.7mm Varifocal Lens - 47mm with 10x optical zoom - H.265
HLC - BLC - ONVIF® - POE - 3D DNR - Motion Detection - IVS Intelligent functions : Intrusion Detection, Line Crossing Detection - 1 in/1 out Alarm - 1 in/1 out Audio
Power supply NOT included - 256GB MicroSD slot (not included) - 24 months warranty
DS-2PT5326IZ-DE(5-50mm)(4mm) Banner
ONVIF®:
Onvif, the absolute standard for IP cameras. Being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera for its own sake that can never be used together with recording systems.
POE (Power Over Ethernet):
The advantage of a PoE camera is evident, it allows it to be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power supply system, a PoE camera guarantees constant voltages and simple installation
Resolution:
This camera features a resolution of 1920 x 1080
3 Image sensors 1/2.8” progressive scan CMOS

Optics:
The Panoramic Camera has a fixed 4mm lens

The PTZ camera has a 4.7mm - 47mm varifocal lens

HIK-CONNECT

Hik Connect allows you to control the device remotely

ROI (Region Of Interest):
The images deriving from IP cameras are "compressed", consequently the quality is set during the recording phase. Especially with cameras with a very high resolution, it is often necessary to reduce the quality in order to guarantee a low bandwidth occupation and to record a larger number of days or cameras.
The ROI allows you to define areas where you can set higher quality (for example a door, the area where the license plate usually passes, an exit, etc.). In that area I can set a higher quality thus guaranteeing a greater definition of the image.
Ultra Smart Funzione ROI
Day/Night:
It allows you to adapt the lens to night/day vision, and the relative automatic management of the IR Illuminator, when present.

IR CUT FILTER (ICR):
Mechanical filter that allows correct viewing of images in daytime viewing conditions. It filters out typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.
Immagine esempio IR CUT FILTER

MICRO SD SLOT:

256GB Micro SD slot ( NOT INCLUDED )

BLC (Backlight Compensation):
is one of the 3 possible Steps in the management of images with Contrast, typical situations are (Entry or exit from car parks, Plates, Special lights, Entrances with shots from inside to outside, etc.) light compensation is one of the most possible complexities, the BLC function allows a discreet adaptation to these situations


Click to enlarge

D-WDR (Digital Wide Dynamic Range):
Software solution of the more powerful WDR integrated in the DSP, exactly as it happens for the digital zoom compared to the Optical Zoom, it is a software simulation of the WDR technology emulation, however extremely useful in circumstances of strong contrast.

3D-DNR:
More advanced version of NOISE REDUCTION management. It allows still images in both low light and movement. The currently most powerful solution for obtaining maximum results in the presence of little light.

Smart features:

This camera has smart features:

- Line crossing recognition
- Audio detection
- Intrusion recognition

Audio and Alarm:

This camera features 1 input + 1 audio output , 1 input + 1 alarm output

Diet:
A 12V DC power supply is required for the operation of this camera (not included)
IP66 protection:
Protection from dust and temporary immersion. Suitable for outdoor environments.

TVS 4000V protection:

TVS4000V protection protects against lightning strikes, protects against voltage surges

Data sheet

DS-2PT5326IZ-DE(5-50mm)(4mm)
panoramic camera
Image Sensor Three 1/2.8" progressive scan CMOS
Min Illumination

Color: 0.005 Lux @(F1.6, AGC ON)

B/W: 0.001 Lux @(F1.6, AGC ON)

0 Lux with IR

Shutter Time

50Hz: 1/1s to 1/30,000s

60Hz: 1/1s to 1/30,000s

Day & Night

IR cut filter

gain Auto/Manual
wdr extension Digital WDR
Smart Image Enhancement HLC/BLC/3D DNR/Defog/Regional Exposure
White Balance Auto/Manual/ATW (Auto-Tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp
PrivacyMask 4×3 programmable privacy masks
Focal Length 4mm
Opening Ranges F1.6
FOV extension Horizontal field of view: 80.7°×3 Vertical field of view: 43.5°
IR radius 30m
PTZ Camera
Image Sensor 1/2.8" progressive scan CMOS
Min Illumination

Color: 0.005 Lux @(F1.6, AGC ON)

B/W: 0.001 Lux @(F1.6, AGC ON)

0 Lux with IR

Shutter Time

50Hz: 1/1s to 1/30,000s

60Hz: 1/1s to 1/30,000s

Day & Night IR cut filter
gain

Auto/Manual

wdr extension

Digital WDR

Smart Image Enhancement HLC/BLC/3D DNR/Defog/Regional Exposure/Regional Focus
White Balance Auto/Manual/ATW (Auto-Tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp
PrivacyMask 8 programmable privacy masks
digital zoom
Focus Mode Auto/Semi-automatic/Manual
Focal Length 4.7mm to 47mm, 10× optical zoom
Zoom Speed Approx. 2.5s (optical, wide - tele)
FOV extension

Horizontal field of view: 58.6° to 6.4° (wide - tele)

Vertical field of view: 35.1° to 3.6° (wide - tele)

Diagonal field of view: 7.4° to 65.6° (wide - tele)

Min. Working Distance 10mm to 1500mm (wide - tele)
Opening Ranges F1.6 to F3.0
Pan and Tilt Range Pan: 0°to 340°; Tilt: 0°to 90°
Pan and Tilt Speed

Pan speed: 0.1°/s to 60°/s (configurable), preset speed: 60°/s

Tilt speed: 0.1°/s to 60°/s (configurable), preset speed: 60°/s

3D Positioning Yes
Proportional Zoom Yes
Preset Numbers 300
Park Action Presets
Power-off Memory Yes
PTZ Status Display Yes
Freezing presets Yes
Scheduled Tasks Preset/Dome Reboot/Dome Adjust
IR Distance 50m
Dual VAC Yes
Smart Event Detection Audio Exception Detection, Intrusion Detection, Line Crossing Detection
System
PTZ Linkage Yes
SVC extension Yes
ROI Main stream and sub-stream respectively supports eight fixed areas.
Video Compression (Sub-stream enabled)

Panoramic room:

Mainstream: H.265/H.264

Sub-stream: H.265/H.264

H.264 with Main Profile/High Profile, H.265 with Main Profile

PTZ Camera:

Mainstream: H.265/H.264

Sub-stream: H.265/H.264/MJPEG

H.264 with Main Profile/High Profile, H.265 with Main Profile

Video Compression (Sub-stream not enabled)

Panoramic room:

Mainstream: H.265/H.264

H.264 with Main Profile/High Profile, H.265 with Main Profile

PTZ Camera:

Mainstream: H.265/H.264/MJPEG

H.264 with Main Profile/High Profile, H.265 with Main Profile

Video Bit Rates 256Kbps to 8192Kbps
Audio compression

G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2

Audio Bit Rates

G.711alaw/G.711ulaw: 64Kbps

G.722.1/G.726: 16Kbps

MP212: 32Kbps/64Kbps/128Kbps

Resolution (Sub-stream enabled)

Panoramic room:

Mainstream:

50Hz: 20fps (1920×1080, 1280×960, 1280×720)

60Hz: 20fps (1920×1080, 1280×960, 1280×720)

Sub-stream:

50Hz: 20fps (704×576, 640×480, 352×288)

60Hz: 20fps (704×480, 640×480, 352×240)

PTZ Camera:

Mainstream:

50Hz: 20fps (1920×1080, 1280×960, 1280×720)

60Hz: 20fps (1920×1080, 1280×960, 1280×720)

Sub-stream:

50Hz: 20fps (704×576, 640×480, 352×288)

60Hz: 20fps (704×480, 640×480, 352×240)

Resolution (Sub-stream not enabled)

Panoramic room:

Mainstream:

50Hz: 25fps (1920×1080, 1280×960, 1280×720, 704×576, 640×480, 352×288)

60Hz: 30fps (1920×1080, 1280×960, 1280×720, 704×480, 640×480, 352×240)

PTZ Camera:

Mainstream:

50Hz: 25fps (1920×1080, 1280×960, 1280×720, 704×576, 640×480, 352×288)

60Hz: 30fps (1920×1080, 1280×960, 1280×720, 704×480, 640×480, 352×240)

Basic Event Detection Motion Detection, Video Tampering Detection, Exception
Network
Smart Records ANR (Automatic Network Replenishment)
Network Storage Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256GB
Protocols IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, Bonjour
APIs Open-ended, support ONVIF®, ISAPI, and CGI, support HIKVISION SDK and Third-Party Management Platform
Simultaneous Live View Up to 4 × 4 channels
User/Host

Up to 32 users

3 levels: Administrator, Operator and User

Security Measures User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering
Clients iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect
Web Browsers IE8 to 11, Chrome 31.0 to 44, Firefox 30.0 to 51
interface
Network Interface 1 RJ45 10M/100M Ethernet
audio interface 1-ch audio input and 1-ch audio output
Alarm Interface 1-ch audio input and 1-ch audio output
General
Power

12VDC & PoE+ (802.3at, class 4)

Max.27W (Max.9W for IR)

Working Temperature -30°C to 65°C (-22°F to 149°F), with heater on
Working Humidity ≤ 90%
Protection Level IP66, TVS 4000V Lightning Protection, Surge Protection and Voltage Transient Protection
Material PC & Aluminum alloy
Dimension Φ 271.3 mm × 243.1 mm (Φ 10.68" × 9.57")
Weight Approx. 3.2kg (7.05lbs)

Further details

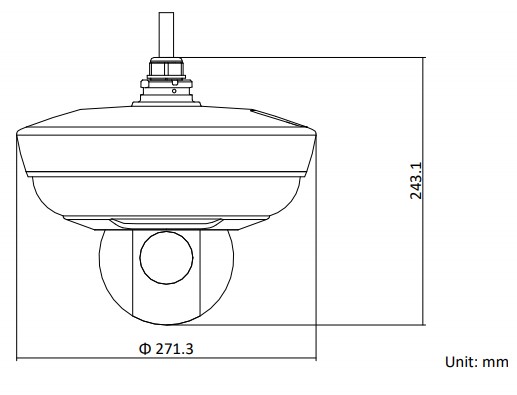

Dimensions DS-2PT5326IZ-DE(5-50mm)(4mm)
