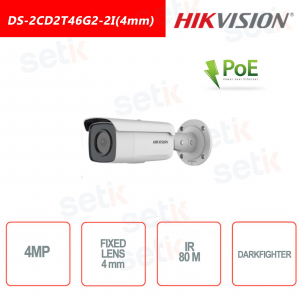

Hikvision DS-2CD2T46G2-2I (4mm) Fixed Bullet 4MP PoE Camera with DarkFighter technology. Fixed 4mm lens, 1/3 "Progressive scan CMOS sensor, H.265 + . Day & Night (ICR), IR illuminator up to 80 meters, Micro SD slot ( UP TO 256GB - NOT INCLUDED ) Triple Stream, ROI, WDR 120dB, BLC, HLC , 3D DNR, AGC, Motion Detection, Face detection, IP67 protection.
FIND INSTALLER
€277.55
€427.00 -35%
discover the available quantity
DS-2CD2T46G2-2I (4mm) | HIKVISION BULLET FIXED POE 4.0 MP CAMERA - 4MM LENS - H.265 + IR 80 METERS
Hikvision Bullet Fixed PoE DarkFighter CameraResolution: 4Megapixel - Fixed lens 4 mm - 1/3 "CMOS sensor - H.265 +
80M IR Illuminator - Day / Night (ICR) - WDR 120dB - AGC - BLC - HLC - 3D DNR - Motion Detection - Face Detection - Triple Stream
Power supply NOT included - 256GB MicroSD slot (not included) - 24 month warranty
| POE (Power Over Ethernet): The advantage of a PoE camera is obvious, it allows it to be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power supply system, a PoE camera guarantees constant voltages and simple installation. |
| Resolution: This camera features 4.0MP 4MP resolution in real time! (2592x1944 pixels) 1/3 ”4Megapixel progressive scan CMOS image sensor |
| Optics: This camera features a 4mm Fixed lens |
Compression H.265 +
A self-developed intelligent algorithm by Hikvision which can greatly reduce the video bitrate based on a standard H.265 codec. Hikvision's H.265 + reduces transmission bandwidth and required storage capacity without impacting video quality, thanks to three key technologies: prediction encoding, noise suppression and flexible bit rate control. Optimized for multiple surveillance scenarios, it allows for greater use of ultra HD surveillance cameras, such as 8MP and 12MP cameras. |
IR Infrared Illuminator: |
| ROI (Region Of Interest): The images deriving from IP cameras are “compressed”, consequently the quality is set during the recording phase. Especially on cameras with a very high resolution, it is often necessary to reduce the quality in order to guarantee a reduced bandwidth occupation and record a greater number of days or cameras. The ROI allows you to define areas where you can set a higher quality (for example a door, the area where the plate usually passes, an exit, etc.). In that area I can set a higher quality thus guaranteeing me a greater definition of the image.  |
| Day / Night: Allows you to adapt the lens to night / day vision, and the relative automatic management of the IR illuminator, when present.
|
| IR CUT FILTER (ICR): Mechanical filter that allows correct viewing of images in daytime viewing conditions. It filters the typical infrared frequencies thus improving the image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.  |
MICRO SD SLOT: 256GB Micro SD slot ( NOT INCLUDED ) |
| BLC (Back Light Compensation): is one of the 3 possible steps in the management of images with contrast, typical situations are (entrances or exits from car parks, plates, special lights, entrances with shots from inside to outside, etc.) light compensation is one of the most complex possible, the BLC function allows a fair adaptation to these situations |
| AGC (Automatic Gain Control): integrated signal amplifier that allows viewing even in critical conditions. It is automatic and does not require specific settings. |
| ULTRA WDR up to 120dB WDR (Wide Dynamic Range): It is the professional solution in cases where you have to operate in conditions of high light / shadow contrast. Fundamental in the case of shots from the inside out, license plates, shaded spots or all situations where there is no homogeneity of light. The higher the db value, the greater the camera's ability to manage the strong difference in the backlight present. Common WDRs usually reach 80db, the human eye is able to recognize a difference of up to 100db. This model reaches up to 120db managing very strong contrast levels.  |
3D- DNR: |
| Supply: A 12V DC power supply is required for the operation of this camera (not included)  |
| IP67 protection: Protection from dust and temporary immersions. Suitable for outdoor environments. |
Data sheet
| DS-2CD2T46G2-2I (4mm) | |
| Room | |
| Image Sensor | 1/3 "Progressive Scan CMOS |
| Min Illumination | Color: 0.003 Lux @ (F1.4, AGC ON), B / W: 0 Lux with IR |
| Shutter Speed | 1/3 s to 1 / 100,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0 ° to 360 °, tilt: 0 ° to 90 °, rotate: 0 ° to 360 ° |
| Slow Shutter | Yes |
| P / N | P / N |
| Wide Dynamic Range | 120 dB |
| Lens | |
| Lens Type | Fixed focal lens 4 mm |
| Focal Length & FOV | 4 mm, horizontal FOV 83 °, vertical FOV 45 °, diagonal FOV 98 ° |
| Openings | F1.4 |
| Lens Mount | M12 |
| Iris Type | Fixed |
| DORI | |
| DORI | 4mm: D: 80.0m, H: 31.7m, R: 16.0m, I: 8.0m |
| ILLUMINATOR | |
| IR Range | Up to 80 m |
| Wavelength | 850 nm |
| Smart Supplement Light | Yes |
| Supplement Light Type | IR |
| Video | |
| Max. Resolution | 2688 × 1520 |
| Main Stream | 50Hz: 25fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60Hz: 30fps (2688 × 1520, 1920 × 1080, 1280 × 720) |
| Sub Stream | 50Hz: 25fps (640 × 480, 640 × 360) 60Hz: 30fps (640 × 480, 640 × 360) |
| Third Stream | 50Hz: 10fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60Hz: 10fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) * Third stream is supported under certain settings. |
| Video Compression | Main stream: H.265 / H.264 / H.265 + / H.264 + Sub-stream: H.265 / H.264 / MJPEG Third stream: H.265 / H.264 * Third stream is supported under certain settings. |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| H.264 Type | Baseline Profile / Main Profile / High Profile |
| H.265 Type | Main Profile |
| H.264 + | Main Stream supports |
| H.265 + | Main Stream supports |
| Bit Rate Control | CBR / VBR |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region of Interest (ROI) | 1 fixed region for main stream and sub-stream |
| Network | |
| Simultaneous Live View | Up to 6 Channels |
| API | Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK |
| Protocols | TCP / IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL / TLS, PPPoE, SNMP , ARP |
| User / Host | Up to 32 users. 3 user levels: administrator, operator and user |
| Security | Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP / HTTPS, TLS 1.1 / 1.2, WSSE and digest authentication for Open Network Video Interface |
| Network Storage | MicroSD / SDHC / SDXC card (256 GB) local storage, and NAS (NFS, SMB / CIFS), auto network replenishment (ANR) Together with high-end Hikvision memory card, memory card encryption and health detection are supported |
| Client | iVMS-4200, Hik-Connect, Hik-Central |
| Web Browser | Plug-in required live view: IE 10+ Free live view plug-in: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+ |
| Image | |
| SNR | ≥ 52 dB |
| Day / Night Switch | Day, Night, Auto, Schedule |
| Image Enhancement | BLC, HLC, 3D DNR |
| Image Parameters Switch | Yes |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser |
| Interface | |
| On-board Storage | Built-in micro SD slot, up to 256GB |
| Hardware Reset | Yes |
| Ethernet Interface | 1 RJ45 10M / 100M self-adaptive Ethernet port |
| Event | |
| Basic Event | Motion detection (human and vehicle targets classification), video tampering alarm, exception |
| Smart Event | Scene change detection |
| Deep Learning Function | |
| Face Capture | Yes |
| Premier Protection | Line crossing detection, intrusion detection, region entrance detection, region exiting detection |
| General | |
| Storage Conditions | -30 ° C to 60 ° C (-22 ° F to 140 ° F). Humidity 95% or less (non-condensing |
| Startup and Operating Conditions | -30 ° C to 60 ° C (-22 ° F to 140 ° F). Humidity 95% or less (non-condensing) |
| Power Supply | 12 VDC ± 25%, reverse polarity protection PoE: 802.3af, Class 3 |
| Power Consumption and Current | 12 VDC, 0.88 A, max. 10.5 W PoE (802.3af, 36 V to 57 V), 0.34 A to 0.21 A, max. 12 W |
| Power Interface | Ø 5.5 mm coaxial power plug |
| Material | Metal except for sunshield |
| Dimension room | Ø 105 mm × 289.5 mm (Ø 4.1 "× 11.4") |
| Package Dimension | 386 mm × 156 mm × 155 mm (15.2 "× 6.1" × 6.1 ") |
| Camera Weight | Approx. 1075 g (2.4 lb.) |
| With Package Weight | Approx. 1584 g (3.5 lb.) |
| Linkage Method | Upload to NAS / memory card / FTP, notify surveillance center, trigger recording, trigger capture, send email |
| Web Client Language | 33 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
| General Function | Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter |
| Software Reset | Yes |
| Firmware Version | V5.5.112 |
| Approval | |
| EMC | FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 + A1: 2014); RCM (AS / NZS CISPR 32: 2015); KC (KN 32: 2015, KN 35: 2015) |
| Safety | UL (UL 60950-1); CB (IEC 60950-1: 2005 + Am 1: 2009 + Am 2: 2013); CE-LVD (EN 60950-1: 2005 + Am 1: 2009 + Am 2: 2013); LOA (IEC / EN 60950-1) |
| Environment | CE-ROHS (2011/65 / EU); WEEE (2012/19 / EU); REACH (Regulation (EC) No 1907/2006) |
| Protection | IP67 (IEC 60529-2013) |
