Hikvision camera DS-2CD2T46G2-ISU / SL IP PoE outdoor Bullet Fixed 4MP , Fixed lens 4mm, CMOS sensor 1/3 ", H.265 +. Day & Night (ICR), IR illuminator 60M, Triple Stream, Video Analysis , Face Capture , AcuSense Deep Learning , WDR 120dB , ROI, BLC, 3D DNR, AGC, MicroSD Slot (NOT INCLUDED) , Microphone + Speaker , 1x input + 1x alarm output, 1x input + 1x audio output, ANR, Motion Detection, Hik-Connect access , IP67 protection, Metal.
Description Product Details Data Sheet Further Details Download

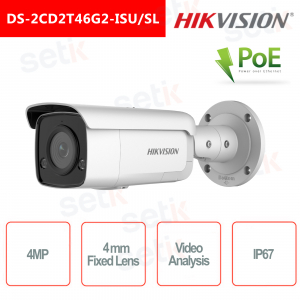

DS-2CD2T46G2-ISU / SL | HIKVISION IP POE 4MP OUTDOOR CAMERA H.265 + IR 60 METERS BULLET ACUSENSE
Hikvision IP PoE Bullet Camera
Resolution: 4MP - 4mm fixed lens - 1/3 "CMOS sensor - H.265 +
60M IR Illuminator - Day / Night (ICR) - ROI, BLC, 3D DNR, AGC - WDR 120dB - Video Analysis - Motion Detection - Face Capture - Microphone + Speaker - 1x input + 1x alarm output, 1x input + 1x audio output
Power supply NOT included - MicroSD slot - 24 months warranty
AcuSense | Deep Learning Algorithm
1 - Accurate alarm for people and vehicles: You can focus on alarms triggered by people and vehicles while false alarms triggered by small animals or other irrelevant objects are greatly reduced. Now you can enjoy this smart function with VCA or motion detection. 2 - Visual and auditory warning:On-site response and deterrence methods that use visual and customizable audible alerts to add another layer of protection. Two-way audio is now also available. 3 - Quickly search for targets by type:Video clips are sorted by categories of people and vehicles, and object classification greatly improves search efficiency. |
PoE (Power Over Ethernet) : The advantage of a PoE camera is obvious, it allows it to be powered with the same cable with which it communicates without bringing additional power cables and without having to install a separate power supply system, a PoE camera guarantees constant voltages and simple installation |
Resolution : This camera features 4MP resolution in real time! 2688 × 1520 1/3 "image sensor |
Optics: This camera features 4mm fixed lens |
Compression H.265 +:
A self-developed intelligent algorithm by Hikvision that can greatly reduce the video bitrate based on a standard H.265 codec. Hikvision's H.265 + reduces transmission bandwidth and required storage capacity without impacting video quality, thanks to three key technologies: prediction encoding, noise suppression and flexible bit rate control. Optimized for multiple surveillance scenarios, it allows for greater use of ultra HD surveillance cameras, such as 8MP and 12MP cameras. |
Infrared illuminator: IR Infrared illuminator for better night vision. Range up to 6 0M |
Hik Connect: Connect allows you to control the device remotely |
Smart features: This camera features intelligent Smart functions on board: |
WDR (Wide Dynamic Range): WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light / shadow contrast. Fundamental in the case of shots from the inside out, license plates, shaded spots or all situations where there is no homogeneity of light. The higher the db value, the greater the camera's ability to manage the strong difference in the backlight present. Common WDRs usually reach 80db, the human eye is able to recognize a difference of up to 100db. This model reaches up to 120db managing very strong contrast levels. |
ROI (Region of interest):
|
Day / Night :: Allows you to adapt the lens to night / day vision, and the relative automatic management of the IR illuminator, when present. |
IR Cut Filter (ICR): Mechanical filter that allows correct viewing of images in daytime viewing conditions. It filters the typical infrared frequencies thus improving the image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies. |
BLC (Cack Light Compensation): is one of the 3 possible steps in the management of images with contrast, typical situations are (entrances or exits from car parks, plates, special lights, entrances with shots from inside to outside, etc.) light compensation is one of the most complex possible, the BLC function allows a fair adaptation to these situations |
AGC (automatic Gain Control): integrated signal amplifier that allows viewing even in critical conditions. It is automatic and does not require specific settings. |
3D NDR: More advanced version of the NOISE REDUCTION management. It allows still images in both low light and movement. Currently the most powerful solution for obtaining maximum results in low light conditions. |
Micro SD slot: Present microSD slot up to 256GB - NOT INCLUDED |
Audio Noise filter and compression function G.711ulaw / G.711alaw / G.722.1 / G.726 / MP2L2 / PCM / MP3 / AAC |
IP67 protection: |
Power supply : 12V DC power supply, PoE: 802.3af, Class 3 is required for operation of this camera (not included) |
Data sheet
DS-2CD2T46G2-ISU / SL | |
Room | |
Image Sensor | 1/3 "Progressive Scan CMOS |
Min. Illumination | Color: 0.003 Lux @ (F1.4, AGC ON), B / w: 0 Lux with IR |
Shutter Speed | 1/3 s to 1 / 100,000 s |
Slow Shutter | Yes |
P / N | P / N |
Wide Dynamic Range | 120 dB |
Day & Night | ICR Cut |
Angle Adjustment | Pan: 0 ° to 360 °, tilt: 0 ° to 90 °, rotate: 0 ° to 360 ° |
Lens | |
Lens Type | Fixed focal lens, 4mm |
Iris Type | Fixed |
FOV | horizontal FOV: 83 °, vertical FOV: 45 °, diagonal FOV: 98 ° |
Openings | F1.4 |
Lens mount | M12 |
Illuminator | |
Supplement Light Type | Yes |
IR Range | Up to 60 m |
Wavelength | 850 nm |
Smart Supplement Light | Yes |
Visual Alarm | Yes |
Video | |
Max. Resolution | 2688 × 1520 |
Main Stream | 50Hz: 25fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60Hz: 30fps (2688 × 1520, 1920 × 1080, 1280 × 720) |
Sub Stream | 50Hz: 25fps (640 × 480, 640 × 360) 60Hz: 30fps (640 × 480, 640 × 360) |
Third Stream | 50Hz: 10fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60Hz: 10fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) * Third stream is supported under certain settings. |
Video Compression | Main stream: H.265 / H.264 / H.265 + / H.264 + Sub-stream: H.265 / H.264 / MJPEG Third stream: H.265 / H.264 * Third stream is supported under certain settings. |
Video Bit Rate | 32 Kbps to 8 Mbps |
H.264 Type | Baseline Profile / Main Profile / High Profile |
H.265 Type | Main Profile |
H.264 + | Main Stream supports |
H.265 + | Main Stream supports |
Bit Rate Control | CBR / VBR |
Scalable Video Coding (SVC) | H.264 and H.265 encoding |
Region of Interest (ROI) | 1 fixed region for main stream and sub-stream |
Audio | |
Environment Noise Filtering | Yes |
Audio Sampling Rate | 8 kHz / 16 kHz / 32 kHz / 44.1 kHz / 48 kHz |
Audio Compression | G.711ulaw / G.711alaw / G.722.1 / G.726 / MP2L2 / PCM / MP3 / AAC |
Audio Bit Rate | 64 Kbps (G.711ulaw / G.711alaw) / 16 Kbps (G.722.1) / 16 Kbps (G.726) / 32 to 192 Kbps (MP2L2) / 8 to 320 Kbps (MP3) / 16 to 64 Kbps (AAC ) |
Network | |
Simultaneous Live View | Up to 6 channels |
API | Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK |
Protocols | TCP / IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL / TLS, PPPoE, SNMP , ARP |
User / Host | Up to 32 users. 3 user levels: administrator, operator and user |
Security | Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP / HTTPS, TLS 1.1 / 1.2, WSSE and digest authentication for Open Network Video Interface |
Network Storage | MicroSD / SDHC / SDXC card (256 GB) local storage, and NAS (NFS, SMB / CIFS), auto network replenishment (ANR) Together with high-end Hikvision memory card, memory card encryption and health detection are supported. |
Client | iVMS-4200, Hik-Connect, Hik-Central |
Web Browser | Plug-in required live view: IE 10+ Free live view plug-in: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+ |
Image | |
SNR | ≥ 52 dB |
Day / Night Switch | Day, Night, Auto, Schedule |
Image Enhancement | BLC, HLC, 3D DNR |
Image Parameters Switch | Yes |
Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser |
Interface | |
Alarm | 1 input, 1 output (max. 24 VDC / 24 VAC, 1 A) |
Audio | 1 input (line in), terminal block, max. input amplitude: 3.3 Vpp, input impedance: 2.2 KΩ, interface type: non-equilibrium; 1 output (line out), terminal block, max. output amplitude: 3.3 Vpp, output impedance: 10 Ω, interface type: non-equilibrium |
On-board Storage | Built-in micro SD / SDHC / SDXC slot, up to 256GB |
Built-In Speaker | Power: 2 W. Max. Sound pressure level: 10 cm: 97 dB. |
Built-In Microphone | Yes |
Hardware Reset | Yes |
Ethernet Interface | 1 RJ45 10M / 100M self-adaptive Ethernet port |
Event | |
Basic Event | Motion detection (human and vehicle targets classification), video tampering alarm, exception |
Smart event | Scene change detection |
Deep Learning Algorithm | |
Face Capture | Yes |
Premier Protection | Line crossing detection, intrusion detection, region entrance detection, region exiting detection |
General | |
Linkage Method | Upload to NAS / memory card / FTP, notify surveillance center, trigger recording, trigger capture, strobe light, audible warning, send email |
Web Client Language | 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish , Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
General Function | Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter |
Software Reset | Yes |
Firmware Version | V5.5.112 |
Storage Conditions | -30 ° C to 60 ° C (-22 ° F to 140 ° F). Humidity 95% or less (non-condensing) |
Startup and Operating Conditions | -30 ° C to 60 ° C (-22 ° F to 140 ° F). Humidity 95% or less (non-condensing) |
Power Supply | 12 VDC ± 25%, reverse polarity protection PoE: 802.3af, Class 3 |
Power Consumption and Current | 12 V, 0.88 A, max. 10.5 W PoE (802.3af, 36V to 57V), 0.34A to 0.21A, max: 12W |
Power Interface | Ø 5.5 mm coaxial power plug |
Material | Aluminum alloy body |
Dimension room | Ø105 mm × 287.6 mm (Ø4.1 "× 11.3") |
Package Dimension | 386 mm × 156 mm × 155 mm (15.2 "× 7.5" × 7.1 ") |
Camera Weight | Approx. 1135 g (2.5 lb.) |
With Package Weight | Approx. 1624 g (3.6 lb.) |
Approval | |
EMC | FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 + A1: 2014); RCM (AS / NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015) |
Safety | UL (UL 60950-1); CB (IEC 60950-1: 2005 + Am 1: 2009 + Am 2: 2013, IEC 62368-1: 2014); CE-LVD (EN 60950-1: 2005 + Am 1: 2009 + Am 2: 2013, IEC 62368-1: 2014); LOA (IEC / EN 60950-1) |
Environment | CE-RoHS (2011/65 / EU); WEEE (2012/19 / EU); Reach (Regulation (EC) No 1907/2006) |
Protection | IP67 (IEC 60529-2013) |
Further details
Download
Download the English brochure
