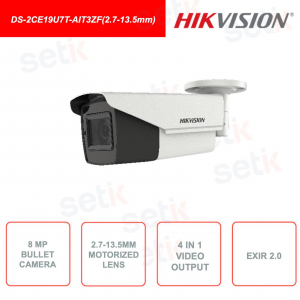

DS-2CE19U7T-AIT3ZF (2.7-13.5mm) - Bullet Camera - 8MP - 4in1 - 2.7-13.5mm Motorized Lens - IP67

DS-2CE19U7T-AIT3ZF (2.7-13.5mm) - Bullet Camera - 8MP - 4in1 - 2.7-13.5mm Motorized Lens - IP67
QUESTIONS ABOUT THE PRODUCT

 
Optic calculation
-35%

HIKVISION DS-2CE19U7T-AIT3ZF (2.7-13.5mm) - Day & Night 8MP 4K bullet camera with mechanical IR filter, for outdoor IP67, integrated EXIR 2.0 illuminator up to 80m, 4in1 Video Output TVI / AHD / CVI / CVBS switchable, 8.29MP high performance CMOS sensor, 2.7-13.5mm motorized varifocal lens. Support 3D Digital Noise Reduction, BLC, WDR 120dB, Support Up-The-Coax Coax . IP67 degree of protection - Metal body.

HIKVISION 4K TURBO HD IN PROMO! DISCOVER NOW!



Reference: DS-2CE19U7T-AIT3ZF(2.7-13.5mm)

Brand: Hikvision

EAN: 6954273677725

FIND INSTALLER

€266.45

€409.92 -35%
taxes included
Tax included
 Available in 5 days

PRODUCT NOT AVAILABLE, DISCOUNT NOW 3%



DS-2CE19U7T-AIT3ZF (2.7-13.5mm) | HIKVISION BULLET CAMERA - 8MP 4K UHD ULTRA HD - 4in1 - 2.7-13.5MM MOTORIZED VARIFOCAL LENS - IP67 - EXIR 2.0 - 8.29MP HIGH PERFORMANCE CMOS

Made by Hikvision
HIKVISION Camera - Ideal for Outdoor Use - DS-2CE19U7T-AIT3ZF (2.7-13.5mm)
Resolution: 8 MP 8Megapixel - 4K UltraHD - Varifocal 2.7- 13.5mm motorized varifocal lens - 8.29MP high performance CMOS sensor - 80m IR Illuminator with EXIR 2.0 Technology - 4in1 Video Output TVI / AHD / CVI / CVBS switchable - Day / Night - AGC - BLC - ICR - True WDR 130dB - IP67 protection - Dimensions: 84.5 mm × 92 mm × 255.1 mm - Weight: 925g - Metal body - 1 HD analog Output - OSD - Power supply NOT included - 24 month warranty - HIKVISION - DS -2CE19U7T-AIT3ZF (2.7-13.5mm)

4IN1 TECHNOLOGY:

This camera is a QUADRIBRID (4 Integrated Technologies)
These cameras are at the same time, Analog , Ahd , HDCVI and HDVI .

Resolution :
This camera features a resolution of 8MP 4K ULTRA HD (3840 × 2160 pixels)

Optics:
This camera features 2.7-13.5 mm motorized varifocal lens.

IR Infrared Illuminator:
IR Infrared illuminator for better night vision. Range up to 80M

This camera is also equipped with EXIR 2.0 technology.

EXIR 2.0 TECHNOLOGY

This technology remedies the classic disturbances of the traditional IR illuminator.

In detail:

1) NO IR REFLEX OR BLEEDING:
By having the IR LEDs positioned separately from the camera lens, possible internal IR reflections and IR bleeding are completely eliminated, a serious problem on dome cameras due to the presence of the glass dome.

2) BEST IR COVERAGE:
Usually, the IR is integrated into a circular apparatus with various LEDS around the lens.
This very often resulted in an overexposed circular area in the center of the image and underexposed corners due to uneven IR coverage. The rectangular EXIR LEDs provide a much more even coverage across the entire image, eliminating this issue.


3) FEWER PROBLEMS WITH SPIDERS / INSECTS:
Spiders and other insects tend to be attracted to the heat of the hottest IR LEDS in non-EXIR cameras. This problem decreases with EXIR cameras, even more so with EXIR flat-faced cameras, on which the contact surfaces are significantly smaller.
Day / Night:
Allows you to adapt the lens to night / day vision, and the relative automatic management of the IR illuminator, when present.

3D-DNR:
More advanced version of the NOISE REDUCTION management. It allows still images in both low light and movement. Currently the most powerful solution for obtaining maximum results in low light conditions.
IR CUT FILTER (ICR):
Mechanical filter that allows correct viewing of images in daytime viewing conditions. It filters the typical infrared frequencies thus improving the image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.
Immagine esempio IR CUT FILTER
BLC (Back Light Compensation):
is one of the 3 possible steps in the management of images with contrast, typical situations are (entrances or exits from car parks, plates, special lights, entrances with shots from inside to outside, etc.) light compensation is one of the most complex possible, the BLC function allows a fair adaptation to these situations


Click to enlarge
AGC (Automatic Gain Control):
integrated signal amplifier that allows viewing even in critical conditions. It is automatic and does not require specific settings.

True WDR 130dB (Wide Dynamic Range):

This is the best professional level solution in cases where you have to operate in conditions of high light / shadow contrast. Fundamental in the case of shots from the inside out, license plates, shaded spots or all situations where there is no homogeneity of light.

IP67 protection - outdoor:
This camera has IP67 (dust / diving) protection. This feature makes it suitable for outdoor use.

Diet:
A power supply is required for the operation of this camera: 9.6 VDC to 14.4 VDC; 19.2 VAC to 28.8 VAC (not included)

Data sheet

Model DS-2CE19U7T-AIT3ZF (2.7-13.5mm)

Room

Image Sensor

8.29 megapixel progressive scan CMOS

Frame Rate

TVI: 8MP@12.5fps, 8MP @ 15fps, 5MP @ 20fps, 4MP @ 25fps, 4MP @ 30fps, 2MP @ 25fps,

2MP @ 30fps

CVI: 8MP@12.5fps, 8MP @ 15fps

AHD: 8MP@12.5fps, 8MP @ 15fps

CVBS: 960H P / N

Resolution

3840 (H) × 2160 (V)

Min. Illumination

Color: 0.003 Lux @ (F1.2, AGC ON), 0 Lux with IR

Shutter Time

PAL: 1 / 12.5 s to 1/50,000 s

NTSC: 1/15 s to 1/50,000 s

Lens

2.7 mm to 13.5 mm motorized varifocal lens

Horizontal Field of View

108.1 ° to 45.6 °

Lens Mount

Φ14

Day & Night

IR cut filter

Angle Adjustment

Pan: 0 ° to 360 °; Tilt: 0 ° to 90 °; Rotate: 0 ° to 360 °

Synchronization

Internal synchronization

WDR (Wide Dynamic Range)

≥ 130 dB

Menu

AGC

Yes

D / N Mode

Auto / Color / BW (Black and White)

White Balance

Auto / Manual

BLC

Yes

WDR

Yes

Functions

Brightness, Sharpness, 3D DNR, Mirror, Smart IR

Interface

Video Output

1 HD analog output

Switch Button

TVI / AHD / CVI / CVBS

General

Operating Conditions

-40 ° C to 60 ° C (-40 ° F to 140 ° F), humidity: 90% or less (non-condensation)

Power Supply

9.6 VDC to 14.4 VDC; 19.2 VAC to 28.8 VAC

Power Consumption

Max. 10.8 W

Protection Level

IP67

Material

Metal

IR Range

Up to 80 m

Communication

Up the coax, Protocol: HIKVISION-C (TVI output)

Dimensions

84.5 mm × 92 mm × 255.1 mm (3.33 "× 3.62" × 10 ")

Weight

Approx. 925 g (2.04 lb.)

Further details

Download

Download the English brochure
