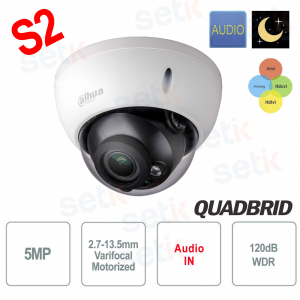

Dahua HAC-HDBW2501R-Z-S2 camera S2 version with 4 technologies in 1: HDCVI / HDTVI / AHD / ANALOGUE, 5 Megapixel 5MP resolution, 2.7-13.5mm optics with motorized zoom and 1/2.7" CMOS image sensor with Starlight technology. IR 30M, WDR 120dB , Day/Night (ICR), Audio Interface , CVBS Video Output, IP67, IK10
https://www.setik.biz/en/cameras/6364-dahua-hac-hdbw2501r-z-s2-4-in-1-5mp-motorized-audio-starlight-dahua-wdr-s2-camera.html
€143.06
€348.92 -59%
taxes included
PRODUCT NOT AVAILABLE, DISCOUNT NOW 3%
LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!
CHRISTMAS WEEK 2024 ×
FREE SHIPPING
ON THE ENTIRE CATALOGUE!
1. Reach at least €249
2. Select FEDEX
3. Confirm code NATALE-FREE-E
4. Complete your order.
Shipping will be free of charge!
Until 10 a.m. on 27/12/2024
Code NOT combinable with other actives
DAHUA DOME CAMERA 5 MEGAPIXEL / 2.7-13.5MM MOTORIZED / WDR - STARLIGHT - AUDIO - S2 VERSION
4in1 external Dahua dome camera - S2 version4 Technologies in 1: CVI / TVI / AHD / ANALOG - 5Megapixel - CMOS Starlight - Motorized Varifocal
30M IR Illuminator, Day/Night (ICR), WDR 120dB, Audio Input
IP67/ IK10 protection - Power supply NOT included - 24 month warranty
Product details
- Dahua Dome 4in1 outdoor camera
- 4 Technologies in 1: HDCVI / HDTVI / AHD / ANALOGUE
- 4 Technologies in 1: HDCVI / HDTVI / AHD / ANALOGUE
- Technologies switchable via dip switches on coaxial cable
- 1/2.7" CMOS image sensor with Starlight Technology
- 1/2.7" CMOS image sensor with Starlight Technology
- Starlight Technology: Color night vision
- 5 Megapixel 5MP resolution
- 2.7-13.5mm varifocal lens with motorized zoom
- Multi-language OSD menu
- Day/Night(ICR), BLC / HLC
- Ultra WDR 120dB
- 5 Megapixel 5MP resolution
- 2.7-13.5mm varifocal lens with motorized zoom
- Multi-language OSD menu
- Day/Night(ICR), BLC / HLC
- Ultra WDR 120dB
- Audio interface
- 30M IR illuminator
- IP67 protection (Dust / Immersion)
- 30M IR illuminator
- IP67 protection (Dust / Immersion)
- IK10 protection (Vandalism)
- Material: Aluminium
- 12V DC power supply not included
- Dimensions: Φ122mm×88.9mm (Φ4.8"×3.5")
- 24 month warranty
- Material: Aluminium
- 12V DC power supply not included
- Dimensions: Φ122mm×88.9mm (Φ4.8"×3.5")
- 24 month warranty
Data sheet
| Model | HAC-HDBW2501R-Z-S2 | |
| Room | ||
| Image Sensor | 1/2.7 inch CMOS | |
| Effective Pixels | 2880(H)×1620(V) | |
| Pixels | 5MP | |
| Scanning System | Progressives | |
| Electronic Shutter Speed | PAL: 1/3 s–1/100,000 s | |
| Minimum illumination | 0.001 Lux/F1.6; 30IRE; 0 Lux IR on | |
| S/N Ratio | More than 65dB | |
| IR Distance | 30 m (98.4 ft) | |
| IR On/Off Control | Car; manual | |
| IR LEDs | 2 | |
| Lens | ||
| Lens Type | Motorized vari-focal | |
| Auto Focus | Yes | |
| Mount Type | φ14 | |
| Focal Length | 2.7mm–13.5mm | |
| Max openings | F1.6 | |
| Angle of view | Horizontal: 31.4°–113° Vertical: 17.6°–58° Diagonal: 36°–138° | |
| Focus Control | Fixed iris | |
| Close Focus Distance | 0.8 m (2.6 ft) | |
| Video | ||
| Resolution | 5M (2880 × 1620); 4M (2560 × 1440); 1080p (1920 × 1080); 960H (960 × 576/960 × 480) | |
| Frame Rate | CVI: PAL: 5M@25fps; 4M@25fps; 1080p@25fps NTSC: 5M@25fps; 4M@30fps; 1080p@30 fps AHD: PAL: 4M@25 fps NTSC: 4M@30 fps TVI: PAL: 4M@25 fps NTSC: 4M@30 fps CVBS: PAL: 960H NTSC: 960H | |
| Video Output | 1-channel BNC high definition video output / CVBS video output (DIP switch) | |
| Day/Night | Auto switch by ICR | |
| OSD Menu | Multi-language | |
| BLC Mode | BLC/HLC/HLC-Pro/WDR | |
| WDR | 120dB | |
| Gain Control | AGC | |
| Noise Reduction | 3D NO | |
| White Balance | Auto / Manual | |
| Smart IR | Auto / Manual | |
| Certifications | ||
| Certifications | CE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) | |
| Port | ||
| Video Output | Video output choices of CVI/TVI/AHD/CVBS by one BNC port (DIP Switch) | |
| Power | ||
| Power Supply | 12V DC ±30% | |
| Power Consumption | Max. 6.6W (12V DC, IR on) | |
| Environmental | ||
| Operating Conditions | –30°C to +60°C (–22°F to +140°F); < 95% (non-condensation) | |
| Storage Conditions | –30°C to +60°C (–22°F to +140°F); < 95% (non-condensation) | |
| Ingress Protection & Vandal Resistance | IP67; IK10 | |
| Construction | ||
| Casing | Metal throughout the whole casing | |
| Dimensions | φ122mm × 88.9mm (φ4.8" × 3.5") | |
| Net Weight | 0.47 kg (1.04 lb) | |
| Gross Weight | 0.64 kg (1.40 lb) | |
Further details
 | This camera is a QUADRIBRID (4 integrated technologies) Switch Technologies: The camera can switch from HDCVI to HDTVI, AHD or Analog via dip switches on coaxial cable |
 |
5.0MPX resolution, means 12 times the resolution of a common D1 camera : |
 | This camera features 2.7-13.5mm varifocal optics with Motorized Zoom Optics Demonstration Video: |
 | Infrared illuminator with Dot LEDs (larger) with an approximate maximum range of 30m |
 | This camera features audio interface |
| OSD (ON SCREEN DISPLAY) allows you to define masked areas, image correction, ATR, Day/Night sensitivity, Shutter speed, White balance, light compensation and much more... The OSD Menu is multi-language |
 | ULTRA WDR up to 120dB WDR (Wide Dynamic Range): It is the professional solution in cases where you need to operate in conditions of high light/shadow contrast. Fundamental when shooting from inside to outside, license plates, shadowed points or all situations where there is no homogeneity of light.  |
 | Allows you to adapt the lens to Night/Day vision
|
 | The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions. It filters the typical infrared frequencies thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.  |
 |
BLC (Back Light Compensation) is one of the 3 possible steps in the management of images with Contrast, typical situations are (Entries or exits from car parks, license plates, particular lights, entrances with shots from the inside towards the outside, etc.) the compensation of the light is one of the most complex operations possible, the BLC function allows discreet adaptation to these situations |
 | The AGC is an integrated signal amplifier that allows vision even in critical conditions. It is automatic and does not require specific settings. |
 | 3D-NR is the most advanced version of NOIS REDUCTION management. It allows still images in the presence of low light and in movement. It is currently the most powerful solution for obtaining maximum results in the presence of low light. |
 | Protection level IP67 (Dust / Immersion) |
 | IK 10 is the highest level of protection against direct damage. This allows the use of the camera even if there are risks of vandalism
|
 | A 12V DC power supply is required to operate this camera (not included)  |
 | This camera was made of Metal. |
 | This product is covered by a 24 month warranty. |
