HAC-HFW1500R-Z-IRE6-S2 Dahua Video surveillance camera HD CVI 5 Megapixel , 2.7-12mm Varifocal lens with motorized zoom , 1 / 2.7 "CMOS sensor. Outdoor camera, Smart IR 60 MT illuminator, Day / Night, BLC / HLC / DWDR, OSD Menu. IP67 protection
https://www.setik.biz/en/cameras/6261-dahua-hac-hfw1500r-z-ire6-s2-hd-cvi-5mp-ir-60mt-outdoor-camera-s2-dahua-version.html
€95.65
€239.12 -60%
taxes included
discover the available quantity
LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!

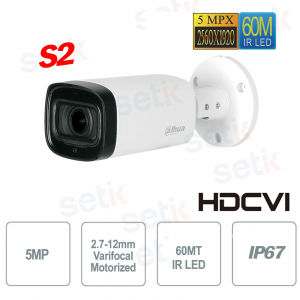

HD-CVI BULLET 5 MEGAPIXEL 2.7-12MM MOTORIZED CAMERA IR60MT - S2 VERSION - DAHUA
HD CVI outdoor camera - DahuaResolution 5Megapixe l - 2.7-12mm Varifocal lens with motorized zoom - 1 / 2.7 "CMOS sensor
60 Meters IR Illuminator - Day / Night (ICR) - BLC HLC AGC
Power supply not included - IP67 protection (Dust / Immersion) - 24 month warranty
Product details
- HD CVI Bullet Dahua outdoor camera
- S2 version
- 5Megapixel resolution
- 2.7-12mm Varifocal lens with motorized zoom
- 1 / 2.7 "CMOS image sensor
- High Speed, real-time remote transmissions
- Day / Night (ICR), BLC, HLC, DWDR, AGC
- Multilanguage OSD menu
- Quality Smart IR illuminator with maximum range up to 60MT
- IP67 protection (Dust / Immersion)
- Material: Metal
- Suitable for indoor and outdoor environments
- 12V DC power supply (not included)
- Dimensions: 209.9 × 90.4 × 90.4 mm
- 24 months warranty
Data sheet
| Model | HAC-HFW1500R-Z-IRE6-S2 |
| Room | |
| Image Sensor | 1 / 2.7 "CMOS |
| Effective Pixel | 2880 (H) × 1620 (V) 5MP |
| Scanning System | Progressive |
| Electronic Shutter Speed |
PAL: 1/25 ~ 1 / 100000s NTSC: 1/30 ~ 1 / 100000s |
| Min. Illumination | 0.005 Lux / F1.6, 30IRE, 0 Lux IR on |
| S / N Ratio | More than 65dB |
| IR Distance | Up to 60m (197feet) |
| IR On / Off control | Auto / manual |
| IR LEDs | 4 |
| Lens | |
| Lens Type | Motorized lens / Fixed iris |
| Mount Type | φ14 |
| Focal Length | 2.7-12mm |
| Max Aperture | F1.6 |
| Field of view | Diagonal: 39 ° -130 ° Horizontal: 34 ° -107 ° Vertical: 19 ° –55 |
| Close focus distance |
0.5m |
| PTZ | |
| PAN / Tilt Range |
Pan: 0 ° ~ 360 ° Tilt: 0 ° ~ 87 ° Rotation: 0 ° ~ 360 ° |
| Video | |
| Resolution |
5 MP (2880 × 1620); 4 MP (2560 × 1440) 1080P (1920 × 1080); 960 H (960 × 576/960 × 480) |
| Frame Rate | CVI: 5 MP @ 25 fps; 4 MP @ 25 fps; 1080P @ 25 fps AHD: 4 MP @ 25 fps TVI: 4 MP @ 25 fps CVBS: 960 H |
| Video Output | 1-channel BNC HDCVI high definition video output / CVBS video output (Can switch) |
| Day / Night | Auto switch ICR |
| OSD Menu | Multi-language |
| BLC Mode | BLC / HLC / DWDR |
| WDR | DWDR |
| Gain control | AGC |
| Noise reduction | 2D |
| White Balance | Auto / Manual |
| Smart IR | Auto / Manual |
| Mirror | Off / On |
| Privacy Masking | Off / On (8 rectangular areas) |
| Certifications | |
| Certifications |
CE (EN55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN55024: 2010 + A1: 2015, EN 55035: 2017, EN50130-4: 2011 + A1: 2014, EN 62368- 1: 2014 + A11: 2017) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1 + CAN / CSA C22.2 No.60950-1) |
| Interface | |
| Video Output | CVI / TVI / AHD / CVBS BNC connector |
| Electrical | |
| Power Supply | DC 12V ± 30% |
| Power Consumption | Max 9.8 W (12V DC, IR on) |
| Environmental | |
| Operating Consumption |
–30 ° C ~ + 60 ° C / <95% RH |
| Storage condition | –30 ° C ~ + 60 ° C / <95% RH |
| Ingress Protection & Vandal Resistance | IP67 |
| Construction | |
| Casing | Metal |
| Dimensions | 209.9 × 90.4 × 90.4 mm |
| Net Weight | 0.55kg (1.21lb) |
| Gross Weight | 0.70kg (1.54lb) |
Further details
 |
HD-CVI is the new technology in the world of video surveillance. By simply replacing the equipment (Cameras and DVRs) in the analog infrastructure, the resolution can reach up to 1920X1080 (FULL-HD). In this way the same results can be obtained as in the IP world but with a high cost containment. |
 |
This camera has a resolution of 5Megapixels : 1 / 2.7 ”5Megapixel progressive scan CMOS image sensor |
 |
This camera features 2.7-12mm varifocal lens with motorized zoom Video Example: |
 |
Infrared illuminator with DOT LEDs (larger) with approximate range of about 60 meters
|
 |
Day / Night: allows you to adapt the lens to night / day vision, and the relative automatic management of the IR illuminator, when present.  |
 |
The IR CUT FILTER is a mechanical filter that allows a correct display of images in daylight viewing conditions. It filters the typical infrared frequencies thus improving the image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies. |
 |
AGC is an integrated signal amplifier that allows vision even in critical conditions. It is automatic and does not require specific settings. |
 |
BLC (Back Light Compensation): it is one of the 3 possible steps in the management of images with contrast, typical situations are: entrances or exits from parking lots, license plates, special lights, entrances with shots from inside to outside, etc. Light compensation is one of the most complex operations possible, the BLC function allows a discreet adaptation to these situations  |
 |
Protection level IP67 (Dust / Diving) |
 |
This camera needs 12V DC power supply for operation. Power supply NOT included!  |
 |
This product is covered by a 24 month warranty. |
Download
Download the English Brochure (Currently not available)
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification
fill out this form
