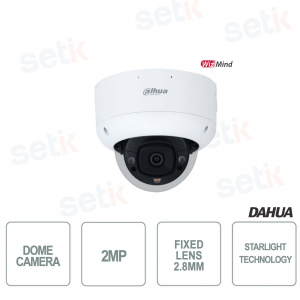

Dahua Dome Camera - WizMind - 2.8mm Fixed Lens - 2MP - Starlight

Dahua Dome Camera - WizMind - 2.8mm Fixed Lens - 2MP - Starlight
-58%

IPC-HDBW5241R1-AS-PV Dahua - AI Outdoor DOME Camera , with Artificial Intelligence. 2 Megapixel , 1/2.8" Starlight Progressive CMOS sensor. 2.8 mm fixed lens, compression up to H.265 . Built-in warm light and Smart IR Illuminator 2xLED 30MT. Day/Night (ICR), BLC, HLC, ROI, WDR 120dB, SMD PLUS, Face and facial attributes capture, Perimeter protection, People counting. Video Analysis (Abandoned and lost objects, Heat map) , 1 Audio input/1 output, 1 Alarm input/1 output, MicroSD slot up to 256GB ( NOT included). IP67/IK10 protection, Wide voltage. Dahua Technology



Reference: IPC-HDBW5241R1-AS-PV

Brand: Dahua

EAN: 6939554947001

FIND INSTALLER

€226.99

€540.46 -58%
taxes included
Tax included
 Available in 5 days
 starting

PRODUCT NOT AVAILABLE, DISCOUNT NOW 3%

LO HAI TROVATO A MENO?

Scrivici dove e ti sconteremo la differenza fino a fine mese!

meno

DAHUA LOW PRICES:×


 INCREDIBLE DISCOUNTS
on a selection of DAHUA products
 Check out the promo now >>


OUTDOOR DOME CAMERA - ONVIF® POE - 2 MEGAPIXEL WITH ARTIFICIAL INTELLIGENCE - VIDEO ANALYSIS - DAHUA

Dahua DOME ONVIF® camera - WizMind series Dahua
2Megapixel Resolution - 2.8mm Fixed Lens - 1/2.8" Starlight CMOS - Compression up to H.265+.
Smart IR illuminator 2 LEDs 30M - ROI - Day/Night (ICR) - WDR 120dB - SMD PLUS - Audio/Alarm - MicroSD slot up to 256 GB
Artificial Intelligence: Face and facial attributes capture, Perimeter protection, People counting, Metadata.
Video Analysis: (Abandoned and Lost Objects, Heat Map)

Tecnologia Intelligenza Artificiale

AI TECHNOLOGY | ARTIFICIAL INTELLIGENCE:
Artificial intelligence (AI) refers to the branch of science and engineering that produces intelligent machines, especially intelligent computer programs. In the security sector, however, the AI used is that which allows the creation of advanced devices, for environmental analysis.

Product details

IPC-HDBW5442E-ZE telecamera DOME ONVIF® 2MP AUdio allarme
  • Onvif PoE Outdoor Dome Camera - WizMind Dahua
  • Resolution 2Megapixel 1920x1080
  • Fixed Optics 2.8 mm
  • 1/2.8” progressive CMOS sensor with Starlight Technology
  • Starlight Technology: Color Night Vision
  • SMD-PLUS
  • Video compression up to H.265+
  • Triple Stream
  • WDR 120dB - Day/Night (ICR) - 3D NR - AWB - ROI - BLC
  • Smart IR illuminator 2 LEDs 30MT
  • Artificial Intelligence : Face and facial attributes capture, Perimeter protection, People counting, Metadata.
  • Standard Video Analysis: Abandoned / Lost Objects, Heat Map
  • Remote viewing with DMSS
  • Audio : 1 Input + 1 Output
  • Alarm : 1 Input + 1 Output
  • Sound and light alarm connection. When the alarm goes off, the sound and light will be connected.
  • Micro SD memory slot (Up to 256GB - not included )
  • IP67 / IK10 / Wide Voltage Protection (Indoor/Outdoor)
  • Material: Metal
  • Power supply NOT included
  • 24 month warranty

Technical data sheet

Model

IPC-HDBW5241R1-AS-PV

Room
Image Sensor 1/2.8” CMOS
Max. Resolution 1920 (H) × 1080 (V)
ROM 128 MB
RAM 512MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s
Min. Illumination

0.002 Lux@F1.6 (Color, 30 IRE)

0.0002 Lux@F1.6 (B/W, 30 IRE)

0 Lux (Illuminator on)

Y/N Ratio ?56 dB
Illumination Distance 30 m (98.4 ft)
Illuminator On/Off Control Auto/Manual
Illuminator Number 2 (IR LED); 1 (Warm light)
Pan/Tilt/Rotation Range

Pan: 0°–355°

Tilt: 0°–80°

Rotation: 0°–355°

Lens
Lens Type Fixed focal
Mount Type

M12

Focal Length 2.8mm
Max. Openings F1.6
Field of View Horizontal 106° × Vertical 56° × Diagonal 126°
Iris Type Fixed
Close Focus Distance

0.6 m (2.0 ft)

Smart Event
IVS

Abandoned object; missing object

Heat Map

Yes

Professional, Intelligent
IVS (Perimeter Protection) Tripwire; intrusion; fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection; people gathering; parking detection
Face Detection Face detection; track; optimization; snapshot; face enhancement; face exposure; face matting setting: face, single inch photo; three snapshot methods: real-time snapshot, optimization snapshot, quality priority; face angle filter; optimization time setting
People Counting Support the counting of enter number, leave number and pass number, and displaying and outputting yearly/monthly/daily reports. Support the counting of numbers in area, and 4 rules configuration. Count number of people or stay time and link alarm. Support queue management, and 4 rules configuration. Count number of people or stay time and link alarm.
Smart Search Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos.
Video
Compression

H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)

Smart Codec

Smart H.265+/H.264+

Video Frame Rate

Main stream: 1920 × 1080 (1 fps–25/30 fps)

Sub stream: D1 (1 fps–25/30 fps)

Third stream: 1080p (1 fps–25/30 fps)

*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Stream Capability

3 streams

Resolution

1080p (1920 × 1080); 1.3M (1280×960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (354 × 288/354 × 240)

Bitrate Control CBR/VBR
Video Bitrate

H.264: 32kbps–8192kbps

H.265: 32kbps–8192kbps

Day/Night Auto (ICR)/Color/B/W
BLC Yes
HLC

Yes

WDR 123 dB
Scene Self-Adaptation Yes
White Balance Auto/natural/street lamp/outdoor/manual/regional custom
Gain Control Auto/Manual
Noise Reduction 3D NR
Motion Detection Off / On (4 Areas)
Region of interest (ROI) Off / On (4 Areas)
Smart Lighting Yes
Defog Yes
Image Rotation 0°/90°/180°/270°
Mirror Yes
Privacy Masking 4 areas
Audio
Built-in MIC Yes
Audio Compression PCM; G.711a; G.711Mu; G.726; G.723
Alarm
Alarm Event

No SD card; SD card full; SD card error; service life warning; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast moving; abandoned object; missingobject; loitering detection; people gathering; parking detection; scene changing; audio detection; voltage detection; defocus detection; external alarm; face detection; people counting in area; stay alarm; people counting; people No. exception detection; safety exception; light alarm; sound alarm (21 built-in sounds and custom voices importing)

Network
Network RJ-45 (10/100Base-T)
SDK and API Yes
Cyber Security Video encryption; firmware encryption; configuration encryption; Digests; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade
Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP

Interoperability ONVIF® (Profile S/Profile G/Profile T); CGI; Milestones; Genetec
User/Host 20 (Total bandwidth: 80M)
Storage

FTP; SFTP; Micro SD card (support max. 256G); NAS

Browser

IE: IE8, IE9, IE11

Chrome

Firefox

Management Software Smart PSS, DSS, DMSS
Mobile Smartphone iOS, Android
Certifications
Certifications

CE-LVD: EN62368-1

CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU

FCC: 47 CFR FCC Part 15, Subpart B

Port
Audio Input 1 channel (RCA port)
Audio Output 1 channel (RCA port)
Alarm Input

1 channel in: 5mA 3V–5V DC

AlarmOutput 1 channel out: 300mA 12V DC
Power
Power Supply 12V DC (±30%)/PoE (802.3af)
Power Consumption

Basic power consumption: 1.9W (12V DC); 2.2W (PoE) Max. power consumption (WDR + face recognition + light and sound alarm + IR LED intensity): 8.2W (12V DC); 8.5W (PoE)

Environmental
Operating Conditions –40°C to +60°C (–40°F to +140°F)/Less than 95% RH
Storage conditions –40°C to +60°C (–40°F to +140°F)
Protection Grade IP67,IK10
Structure
Casing Metal
Dimensions

105mm × Φ126mm (4.1" × Φ5.0")

Net Weight

712.9g (1.6lb)

Gross Weight

986.0g (2.2lb)

Further details

Questo prodotto rispetta lo standard Onvif

All Onvif , the absolute standard for IP cameras, being Onvif guarantees compatibility with any modern recording system. NOT being Onvif, means having a camera that is an end in itself that can never be used together with recording systems

This camera is ONVIF® compatible

AI | Artificial Intelligence
This camera features Artificial Intelligence on board

- Face Capture : Face capture is a software application that automatically captures faces from within a digital image or video frame from a video source . Dahua cameras use advanced deep learning algorithms , which are trained on a large number of sources that contain facial data, allowing the camera to quickly and accurately detect faces from the video source and capture facial images.

- Face Attribute : Through the use of deep learning algorithms to analyze facial images, Dahua cameras can extract up to six facial attributes from each frame , such as gender, age, expression (happy, calm, surprised, sad, etc.) angry), glasses, masks and mustaches.

Customers can gain valuable data through facial attribute statistics.

- Face Detection : Once facial features are extracted from the captured faces, they are stored

in a database where other images can be easily searched and compared. Once a match is found, the system outputs the result file. Dahua Face Recognition camera supports a built-in database that stores up to 10,000 facial images , helping the camera achieve the 'real-time acquisition and comparison.

- Line crossing : People counting will start when a previously set line is crossed.

- Perimeter crossing : People counting will start when they enter a previously set area.

AI Camera - Cattura del volto

Codifica video Smart H.265+

Smart H.265+

Smart H.265+ is the optimized implementation of H.265 codec that uses scene-adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without straining the network.

Smart H.265+ greatly reduces bit rate and storage requirements compared to standard H.265 compression.

Video compressione Smart H.265+

Questa telecamera ha una risoluzione 2Mpx This camera has a resolution of 2 Megapixel 2 MP :
Image sensor 1/2.8” 4Megapixel progressive CMOS
Fixed Lens

This camera features a 2.8mm fixed lens

1/2.8" sensor with STARLIGHT technology.

Low brightness, color vision even in night mode



With this sensor, it is possible to have color shots even in night mode.

Normally, when entering night mode, the color vision changes to black/white.

With the SENSOR present, night shots will be in color

Main stream: 1920 × 1080 (1 fps–25/30 fps)

Sub stream: D1 (1 fps–25/30 fps)

Third stream: 1080p (1 fps–25/30 fps)

Full HD

Remote visibility on mobile using Dahua DMSS application.

This camera also provides basic video analysis functions:

- Recognition of lost and abandoned objects

-Heat map

Questa telecamera presenta ingressi e uscite audio This camera has 1 audio input + 1 audio output
Questa telecamera presenta ingressi e uscite allarme This camera has 1 input + 1 alarm output
ULTRA WDR up to 120dB
WDR (Wide Dynamic Range): This is the professional solution when you need to work in high light/shadow contrast conditions. It is essential when shooting from inside to outside, license plates, shadowed areas or any situation where there is no homogeneity of light.
Day/Night Function Icon Day/Night: allows you to adapt the lens to night/day vision, and the relative automatic management of the IR Illuminator, when present.
Day/Night Function Example
Funzione IR Cut Filter

The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions, filtering the typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.

Esempio Funzione IR Cut Filter

Funzione ROI This camera has ROI function.

Images from IP cameras are “compressed”, so the quality is set during recording. Especially on cameras with very high resolution, it is often necessary to reduce the quality in order to ensure a reduced bandwidth occupation and record a greater number of days or cameras.
The ROI allows you to define areas where you can set a higher quality (for example a door, the area where the license plate usually passes, an exit, etc.). In that area I can set a higher quality , thus ensuring a higher definition of the image.
Ultra Smart Funzione ROI
DEFOG Function Icon It allows you to clearly see images taken in particular weather conditions: rain, smoke and fog
DEFOG function example image
DEFOG function example image
Protezione IP67 contro polveri e immersioni Protection level IP67 (Dust / Immersion)

IK 10 is the highest level of protection from direct damage. This allows the camera to be used even if there is a risk of vandalism

MicroSD Recording

Possibility to insert Micro SD up to a maximum of 256Gb - not included

Power supply 12V 3A Power supply NOT included
Power supply 12V DC
Italian Guarantee Icon This product is covered by a 24 month warranty.

Download

Download the English Brochure
Schema dimensioni telecamera IPC-HDBW5241R1-AS-PV
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
