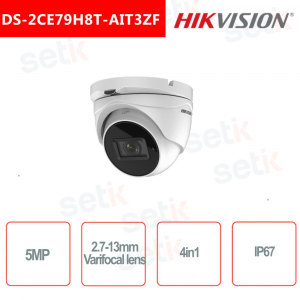

Hikvision 5MP 2.7-13.5mm HD-TVI 4in1 Turret Camera

Hikvision 5MP 2.7-13.5mm HD-TVI 4in1 Turret Camera
-35%

Hikvision DS-2CE79H8T-AIT3ZF Turret Turbo HD-TVI 4in1 5MP Day & Night type camera with mechanical IR filter, for outdoor IP67, IR illuminator up to 60m, 5MP CMOS sensor, autofocus, sensitivity 0.003 Lux F1.2 with active AGC, 0 Lux with IR, 2.7-13.5mm motorized varifocal lens. Support 3D Digital noise reduction, BLC, Smart IR, WDR 130dB, TVI / AHD / CVI / CVBS video output, 12 VDC power supply, 24 VAC - IP67



Reference: DS-2CE79H8T-AIT3ZF

Brand: Hikvision

EAN: 6954273693466

FIND INSTALLER

€235.52

€362.34 -35%
taxes included
Tax included
 Available in 5 days

PRODUCT NOT AVAILABLE, DISCOUNT NOW 3%




DS-2CE79H8T-AIT3ZF | HIKVISION 5MP TURRET CAMERA HD TVI 4in1 TURBO HD 2.7mm ~ 13.5mm

Made by Hikvision
Outdoor Hikvision Turbo HD TVI / AHD / CVI / CVBS camera
Resolution: 5 MP 5Megapixel - 2.7mm ~ 13.5mm Varifocal lens - autofocus - CMOS sensor
Smart IR 60M Illuminator - Day / Night (ICR) - AGC - BLC - SMART IR - WDR 130dB - IP67 protection
Power supply NOT included - 24 months warranty
DS-2CE79D3T-IT3ZF

4IN1 TECHNOLOGY:

This camera is a QUADRIBRID (4 Integrated Technologies)
These cameras are at the same time Analogue , Ahd , HDCVI and HDVI .

Resolution:
This camera has a resolution of 2560 (H) × 1944 (V)
High performance CMOS sensor of 5 megapixels
Optics:
This camera features 2.7mm ~ 13mm varifocal lens

IR Infrared Illuminator:
IR Infrared illuminator for better night vision. Range up to 60M

This camera is also equipped with SMART IR technology.
Through this technology , the light emitted by the LEDs is adapted according to the framed object.

Smart IR technology

Day / Night:
Allows you to adapt the lens to night / day vision, and the relative automatic management of the IR illuminator, when present.

IR CUT FILTER (ICR):
Mechanical filter that allows correct viewing of images in daytime viewing conditions. It filters the typical infrared frequencies thus improving the image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.
Immagine esempio IR CUT FILTER
3D-DNR:
More advanced version of the NOISE REDUCTION management. It allows still images in both low light and movement. Currently the most powerful solution for obtaining maximum results in low light conditions.
BLC (Back Light Compensation):
is one of the 3 possible steps in the management of images with contrast, typical situations are (entrances or exits from car parks, plates, special lights, entrances with shots from inside to outside, etc.) light compensation is one of the most complex possible, the BLC function allows a fair adaptation to these situations


Click to enlarge

AGC (Automatic Gain Control):
integrated signal amplifier that allows viewing even in critical conditions. It is automatic and does not require specific settings.

WDR (Wide Dynamic Range):
Software solution of the more powerful WDR integrated in the DSP, exactly as it happens for the digital zoom compared to the Optical Zoom, it is a software simulation of emulation of the WDR technology, however extremely useful in circumstances of strong contrast.

IP67 protection - outdoor:
This camera has IP67 (dust / diving) protection. Suitable for outdoor environments.

Diet:
A 12V DC or 24V AC power supply is required for the operation of this camera (not included)

Data sheet

DS-2CE79H8T-AIT3ZF
Room
Image Sensor 5.0 megapixel progressive scan CMOS
Signal System PAL / NTSC
Resolution 2560 (H) × 1944 (V)
Min. Illumination 0.003 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Time PAL: 1 / 12.5s to 1/50,000 s
NTSC: 1/15 s to 1/50,000 s
Lens 2.7 mm to 13.5 mm
Horizontal Field of View 92.3 ° to 29.3 °
Lens Mount Ø 14
Day & Night ICR
Angle Adjustment Pan: 0 ° to 360 °, Tilt: 0 ° to 75 °, Rotation: 0 ° to 360 °
WDR (Wide Dynamic Range) 130 dB
AGC High / Medium / Low
D / N Mode Auto / Color / BW (Black and White)
Image Parameters Switch STD / HIGH-SAT
White Balance ATW / MANUAL
WDR 130dB
Image Enhancement BLC, HLC
Language English
Image Settings Brightness, Sharpness, Mirror, Smart IR
Frame Rate TVI: 5MP @ 20fps, 4MP @ 25fps, 4MP @ 30fps, 2MP @ 25fps, 2MP @ 30fps
AHD: 5MP @ 20fps, 4MP @ 25fps, 4MP @ 30fps
CVI: 4MP @ 25fps, 4MP @ 30fps
CVBS: PAL, NTSC
Interface
Video Output

Switchable TVI / AHD / CVI / CVBS

General
Material

Metal

Dimension 123.86 mm × 134.3 mm × 110.24 mm (4.88 "× 5.29" × 4.34 ")
Weight Approx. 630 g (1.39 lb.)
Operating Condition -40 ° C to 60 ° C (-40 ° F to 140 ° F), Humidity 90% or less (no condensation)
Communication HIKVISION-C
IR Range Up to 70 m
Power Supply 12 VDC ± 20%, 24 VAC ± 20%
Consumption Max.10.5 W
Protection IP67

Further details

Download

Download the English brochure
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
