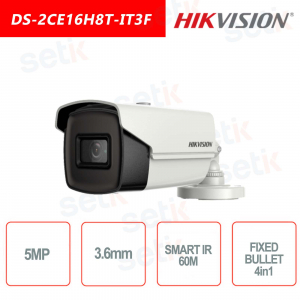

Fixed Bullet Camera Hikvision 5MP 4in1 - IR 60M - ICR

-35%

Ultra-Low Light Camera Hikvision DS-2CE16H8T-IT3F Fixed Bullet 4in1 (TVI / AHD / CVI / CVBS) 5MP . Resolution 2560 × 1944 . 5 Megapixel progressive scan CMOS. 3.6mm fixed lens, Smart IR illuminator up to 60 meters with EXIR 2.0 technology, BLC, WDR 130dB, OSD menu, 3D DNR, Up to Coax data with HIKVISON-C. 12Vdc power supply. IP67

HIKVISION 4K TURBO HD IN PROMO! DISCOVER NOW!

Reference: DS-2CE16H8T-IT3F

Brand: Hikvision

EAN: 6954273668594

FIND INSTALLER

https://www.setik.biz/en/cameras/6073-hikvision-ds-2ce16h8t-it3f-fixed-bullet-camera-hikvision-5mp-4in1-ir-60m-icr.html

€140.36

€215.94 -35%

taxes included

ARE YOU A PROFESSIONAL OF THE SECTOR?
REGISTER TO ACCESS YOUR LIST

PRODUCT NOT AVAILABLE, DISCOUNT NOW 3%

CHRISTMAS WEEK 2024 ×

FREE SHIPPING
ON THE ENTIRE CATALOGUE!

1. Reach at least €249
2. Select FEDEX
3. Confirm code NATALE-FREE-E
4. Complete your order.
Shipping will be free of charge!

Until 10 a.m. on 27/12/2024
Code NOT combinable with other actives

Description Product Details Data Sheet Further Details Download

DS-2CE16H8T-IT3F | HIKVISION 5MP FIXED BULLET 4IN1 ULTRA-LOW LIGHT CAMERA - 3.6MM

Ultra-Low Light Hikvision Bullet Fixed 4IN1 Camera (TVI / AHD / CVI / CVBS)
Resolution: 5 MP 5Megapixel - 3.6mm fixed lens - CMOS sensor - Hikvision-c
60M Smart IR Illuminator with EXIR 2.0 Technology - Day / Night (ICR) - AGC - BLC - WDR 130dB - OSD - IP67 protection
Power supply NOT included - 24 months warranty

4IN1 TECHNOLOGY:

This camera is a QUADRIBRID (4 Integrated Technologies)
These cameras are at the same time Analogue , Ahd , Hdcvi and Hdtvi .

Resolution:
This camera has a resolution of 2560 × 1944
High performance CMOS sensor of 5 megapixels

Optics:
This camera features a fixed 3.6mm lens

IR Infrared Illuminator:
IR Infrared illuminator for better night vision. Range up to 60M

This camera is also equipped with SMART IR technology.
Through this technology, the light emitted by the LEDs is adapted according to the framed object.

Smart IR technology

EXIR 2.0 TECHNOLOGY

This technology remedies the classic disturbances of the traditional IR illuminator.

In detail:

1) NO IR REFLEX OR BLEEDING:
By having the IR LEDs positioned separately from the camera lens, possible internal IR reflections and IR bleeding are completely eliminated, a serious problem on dome cameras due to the presence of the glass dome.

2) BEST IR COVERAGE:
Usually, the IR is integrated into a circular apparatus with various LEDS around the lens.
This very often resulted in an overexposed circular area in the center of the image and underexposed corners due to uneven IR coverage. The rectangular EXIR LEDs provide a much more even coverage across the entire image, eliminating this issue.

3) FEWER PROBLEMS WITH SPIDERS / INSECTS:
Spiders and other insects tend to be attracted to the heat of the hottest IR LEDS in non-EXIR cameras. This problem decreases with EXIR cameras, even more so in flat-faced EXIR cameras, on which the contact surfaces are significantly smaller.

OSD Menu (Hikvision-C Protocol):
(ON SCREEN DISPLAY) allows you to set the camera parameters: AGC, Day / Night Mode, White Balance, WDR, BLC, HLC, set areas to be masked, motion detection, 3D DNR noise reduction, brightness, shadows, SMART IR and so on.

It is possible to enter the OSD menu by connecting the camera to a TVI DVR. English language

Day / Night:
Allows you to adapt the lens to night / day vision, and the relative automatic management of the IR illuminator, when present.

IR CUT FILTER (ICR):
Mechanical filter that allows correct viewing of images in daytime viewing conditions. It filters the typical infrared frequencies thus improving the image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.
Immagine esempio IR CUT FILTER

BLC (Back Light Compensation):
is one of the 3 possible steps in the management of images with contrast, typical situations are (entrances or exits from car parks, plates, special lights, entrances with shots from inside to outside, etc.) light compensation is one of the most complex possible, the BLC function allows a fair adaptation to these situations

Click to enlarge

AGC (Automatic Gain Control):
integrated signal amplifier that allows viewing even in critical conditions. It is automatic and does not require specific settings.

WDR 130dB:
WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light / shadow contrast. Fundamental in the case of shots from the inside out, license plates, shaded spots or all situations where there is no homogeneity of light. The higher the db value, the greater the camera's ability to manage the strong difference in the backlight present. Common WDRs usually reach 80db, the human eye is able to recognize a difference of up to 100db. This model reaches up to 120db managing very strong contrast levels. Immagine esempio funzione WDR 120db

IP67 protection - outdoor:
This camera has IP67 (dust / diving) protection. Suitable for outdoor environments.

Supply:
A 12V DC power supply is required for the operation of this camera (not included)

Data sheet

DS-2CE16H8T-IT3F
Room
Image Sensor	5 megapixel progressive scan CMOS
Signal System	PAL / NTSC
Resolution	2560 (H) × 1944 (V)
Min. Illumination	Color: 0.003 Lux @ (F1.2, AGC ON), 0 Lux with IR
Frame Rate	TVI: 2 MP @ 25fps, 2 MP @ 30fps, 4 MP @ 25fps, 4 MP @ 30fps, 5 MP @ 20fps AHD: 4MP @ 25fps, 4MP @ 30fps, 5MP @ 20fps CVI: 4 MP @ 25fps, 4 MP @ 30fps CVBS: PAL, NTSC
Shutter Time	PAL: 1/25 s to 1 / 50,000 s NTSC: 1/30 s to 1 / 50,000 s
Lens	3.6 mm
Horizontal Field of View	78 °
Lens Mount	M12
Day & Night	IR cut filter
Angle Adjustment (Bracket)	Pan: 0 ° to 360 °, Tilt: 0 ° to 180 °, Rotate: 0 ° to 360 °
Synchronization	Internal synchronization
WDR (Wide Dynamic Range)	≥ 130 dB
Menu
AGC	Yes
Day / Night Mode	Auto / Color / BW (Black and White)
White Balance	Auto / Manual
BLC (Backlight Compensation)	Yes
WDR	Yes
3D DNR	Level 1 to 9
Privacy Mask	4 programmable privacy masks
Motion Detection	4 programmable areas
Language	English
Functions	Brightness, Sharpness, 3D DNR, Mirror, Smart IR
Interface
Video Output	1 HD analog output
Budon switch	TVI / AHD / CVI / CVBS
General
Operating Conditions	-40 ° C to 60 ° C (-40 ° F to 140 ° F), humidity: 90% or less (non-condensing)
Power Supply	12 VDC ± 25% * You are recommended to use one power adapter to supply the power for one camera
Power Consumption	Max. 5.8 W
Protection level	IP67
Material	Metal
IR Range	Up to 60 m
Communication	Up the coax, Protocol: HIKVISION-C (TVI output)
Dimensions	81.9 mm × 86.7 mm × 217.9 mm (3.22 "× 3.41" × 8.58 ")
Weight	Approx. 570 g (1.26 lb.)
