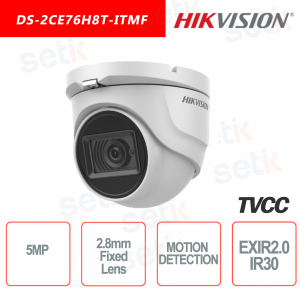

Hikvision IR30 Turret camera 5MP Motion Detection

Hikvision IR30 Turret camera 5MP Motion Detection
-35%

Hikvision DS-2CE76H8T-ITMF (2.8mm) 5MP CMOS Turbo HD 4in1 (TVI / AHD / CVI / CVBS) Turret camera , 2.8mm fixed lens, 5MP CMOS sensor, EXIR 2.0 illuminator up to 30M, Supports 3D Digital noise reduction, BLC, Smart IR, Privacy Mask, Motion Detection, WDR 130dB, coaxial data with HIKVISON-C. 12V DC power supply, operating temperature from -40 ° C to + 60 ° C. IP67 protection


HIKVISION 4K TURBO HD IN PROMO! DISCOVER NOW!


Reference: DS-2CE76H8T-ITMF

Brand: Hikvision

EAN: 6954273669508

FIND INSTALLER

€122.12

€187.88 -35%
taxes included
Tax included
  Hurry up! Only a few pieces left in our warehouse!
discover the available quantity



DS-2CE76H8T-ITMF (2.8mm) | HIKVISION 5MP TURRET CAMERA 4IN1 TURBO HD

Made by Hikvision
Hikvision 4IN1 camera (TVI / AHD / CVI / ANALOG) - IP67
Resolution: 5Megapixel - 2.8mm fixed lens - CMOS sensor
30M Smart IR Illuminator with EXIR 2.0 Technology - Day / Night (ICR) - AGC - BLC - SMART IR - Privacy Mask - Motion Detection - WDR 130dB - IP67 Protection
Power supply NOT included - 24 months warranty
DS-2CE78U7T-IT3F_BANNER

4IN1 TECHNOLOGY:

This camera is a QUADRIBRID (4 Integrated Technologies)
These cameras are at the same time Analogue , Ahd , Hdcvi and Hdtvi .

Resolution:
This camera has a resolution of 2560 (H) × 1944 (V)
High performance CMOS sensor of 5 megapixels
Optics:
This camera features 2.8mm fixed lens

IR Infrared Illuminator:
IR Infrared illuminator for better night vision. Range up to 30M

This camera is also equipped with SMART IR technology.
Through this technology, the light emitted by the LEDs is adapted according to the framed object.

Smart IR technology

EXIR 2.0 TECHNOLOGY

This technology remedies the classic disturbances of the traditional IR illuminator.

In detail:

1) NO IR REFLEX OR BLEEDING:
By having the IR LEDs positioned separately from the camera lens, possible internal IR reflections and IR bleeding are completely eliminated.

2) BEST IR COVERAGE:
Usually, the IR is integrated into a circular apparatus with various LEDS around the lens.
This very often resulted in an overexposed circular area in the center of the image and underexposed corners due to uneven IR coverage. The rectangular EXIR LEDs provide a much more even coverage across the entire image, eliminating this issue.


3) FEWER PROBLEMS WITH SPIDERS / INSECTS:
Spiders and other insects tend to be attracted to the heat of the hottest IR LEDS in non-EXIR cameras. This problem decreases with EXIR cameras, even more so in flat-faced EXIR cameras, on which the contact surfaces are significantly smaller.

Day / Night:
Allows you to adapt the lens to night / day vision, and the relative automatic management of the IR illuminator, when present.

Motion detection:

This camera provides VIDEO ANALYSIS and PRIVACY FUNCTION functions:
- Detect motion in 4 programmable areas
- Privacy Mask in 4 programmable areas


IR CUT FILTER (ICR):
Mechanical filter that allows correct viewing of images in daytime viewing conditions. It filters the typical infrared frequencies thus improving the image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.
Immagine esempio IR CUT FILTER
BLC (Back Light Compensation):
is one of the 3 possible steps in the management of images with contrast, typical situations are (entrances or exits from car parks, plates, special lights, entrances with shots from inside to outside, etc.) light compensation is one of the most complex possible, the BLC function allows a fair adaptation to these situations


Click to enlarge

3D-DNR:
More advanced version of the NOISE REDUCTION management. It allows still images in both low light and movement. Currently the most powerful solution for obtaining maximum results in low light conditions.
AGC (Automatic Gain Control):
integrated signal amplifier that allows viewing even in critical conditions. It is automatic and does not require specific settings.

WDR (Wide Dynamic Range):

It is the professional solution in cases where you have to operate in conditions of high light / shadow contrast. Fundamental in the case of shots from the inside out, license plates, shaded spots or all situations where there is no homogeneity of light.

IP67 protection - outdoor:
This camera has IP67 (dust / diving) protection. Suitable for outdoor environments.

Supply:
A 12V DC power supply is required for the operation of this camera (not included)

Technical data sheet

DS-2CE76H8T-ITMF (2.8mm)
Room
Image Sensor 5 MP CMOS
Signal System PAL / NTSC
Video Frame Rate

TVI: 2 MP @ 25fps, 2 MP @ 30fps, 4 MP @ 25fps, 4 MP @ 30fps, 5 MP @ 20fps
AHD: 4 MP @ 25fps, 4 MP @ 30fps, 5 MP @ 20fps
CVI: 4 MP @ 25fps, 4 MP @ 30fps
CVBS: PAL, NTSC

Resolution 2560 (H) × 1944 (V)
Min. Illumination 0.003 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shuder Time

PAL: 1/25 s to 1 / 50,000 s
NTSC: 1/30 s to 1 / 50,000 s

Lens 2.8 mm
Horizontal Field of View 98 °
Lens Mount M12
Day & Night IR cut filter
Angle Adjustment (Bracket) Pan: 0 ° to 360 °, Tilt: 0 ° to 75 °, Rotate: 0 ° to 360 °
Menu
Image Setting Brightness, Sharpness, 3D DNR, Mirror, Smart IR
AGC Yes
Day / Night Mode Auto / Color / BW (Black and White)
White Balance Auto / Manual
WDR ≥ 130 dB
Image Enhancement BLC
Privacy Mask 4 programmable privacy masks
Noise Reduction Level 1 to 9
Language English
Interface
Video Output

Switchable TVI / AHD / CVI / CVBS

Event
Motion Detection 4 programmable areas
General
Operating Conditions

-40 ° C to 60 ° C (-40 ° F to 140 ° F), humidity: 90% or less (non-condensing)

Power Supply

12 VDC ± 25%, * You are recommended to use one power adapter to supply the power for one camera.

Power Consumption

Max. 5.8 W

Protection Level IP67
Material

Metal

IR Range Up to 30 m
Communication Up the coax, Protocol: HIKVISION-C (TVI output)
Dimensions 90 mm × 79.37 mm (3.54 "× 3.12")
Weight Approx. 300 g (0.66 lb.)

Further details

DS-2CE78U7T-IT3F

Download

Download the English brochure
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
