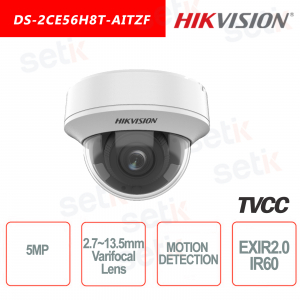

HIKVISION IR60 Dome Camera 5MP Motion Detection

HIKVISION IR60 Dome Camera 5MP Motion Detection
-35%

Telcamera Hikvision DS-2CE56H8T-AITZF Dome for indoor 4in1 TVI / AHD / CVI / CVBS - 5MP Day & Night type with IR filter, illuminator EXIR 2.0 integrated up to 60m, 5MP CMOS sensor, 0.003 Lux sensitivity, optical motorized varifocal 2.7 mm ~ 13.5 mm. Support 3D noise reduction, BLC, WDR, Privacy Mask, Motiuon Detection, TVI / AHD / CVI / CVBS video output, AC24V / DC12C power supply



Reference: DS-2CE56H8T-AITZF

Brand: Hikvision

EAN: 6954273684112

FIND INSTALLER

€281.52

€433.10 -35%
taxes included
Tax included
 Available in 5 days

PRODUCT NOT AVAILABLE, DISCOUNT NOW 3%




DS-2CE56H8T-AITZF | HIKVISION 5MP DOME CAMERA TURBO HD 4in1 2.7mm ~ 13.5mm FOR INDOOR

Made by Hikvision

Hikvision 4in1 Turbo HD Camera
Resolution: 5 MP 5Megapixel - 2.7mm ~ 13.5mm Varifocal lens - CMOS sensor
60M Smart IR Illuminator with EXIR 2.0 Technology - Day / Night (ICR) - AGC - BLC - SMART IR - WDR - Privacy Mask - Motion Detection
Power supply NOT included - 24 months warranty
DS-2CE56H1T-VPIT3ZE

4IN1 TECHNOLOGY:

This camera is a QUADRIBRID (4 Integrated Technologies)
These cameras are at the same time, Analog, Ahd, HDCVI and HDTV


Resolution:
This camera has a resolution of 2560 × 1944
High performance CMOS sensor of 5 megapixels
TURBO HD - HIKVISION :

TURBO HD HIGH DEFINITION ANALOG With the Turbo HD line you can see and record in high definition using traditional cabling on coaxial cable. Turbo HD cameras in fact exploit the existing coaxial infrastructure.

Optics:
This camera features 2.7mm ~ 13.5mm varifocal lens

IR Infrared Illuminator:
IR Infrared illuminator for better night vision. Range up to 60M

This camera is also equipped with SMART IR technology.
Through this technology, the light emitted by the LEDs is adapted according to the framed object.

Smart IR technology

EXIR 2.0 TECHNOLOGY

This technology remedies the classic disturbances of the traditional IR illuminator.

In detail:

1) NO IR REFLEX OR BLEEDING:
By having the IR LEDs positioned separately from the camera lens, possible internal IR reflections and IR Bleeding are completely eliminated, a serious problem on dome cameras due to the presence of the glass dome.

2) BEST IR COVERAGE:
Usually, the IR is integrated into a circular apparatus with various LEDS around the lens.
This very often resulted in an overexposed circular area in the center of the image and underexposed corners due to uneven IR coverage. The rectangular EXIR LEDs provide a much more even coverage across the entire image, eliminating this issue.


3) FEWER PROBLEMS WITH SPIDERS / INSECTS:
Spiders and other insects tend to be attracted to the heat of the hottest IR LEDS in non-EXIR cameras. This problem decreases with EXIR cameras, even more so in flat-faced EXIR cameras, on which the contact surfaces are significantly smaller.

Motion detection:

This camera provides VIDEO ANALYSIS and PRIVACY FUNCTION functions:
- Detect motion in 4 programmable areas
- Privacy Mask in 4 programmable areas

Day / Night:
Allows you to adapt the lens to night / day vision, and the relative automatic management of the IR illuminator, when present.

IR CUT FILTER (ICR):
Mechanical filter that allows correct viewing of images in daytime viewing conditions. It filters the typical infrared frequencies thus improving the image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.
Immagine esempio IR CUT FILTER
3D-DNR:
More advanced version of the NOISE REDUCTION management. It allows still images in both low light and movement. Currently the most powerful solution for obtaining maximum results in low light conditions.
BLC (Back Light Compensation):
is one of the 3 possible steps in the management of images with contrast, typical situations are (entrances or exits from car parks, plates, special lights, entrances with shots from inside to outside, etc.) light compensation is one of the most complex possible, the BLC function allows a fair adaptation to these situations


Click to enlarge

AGC (Automatic Gain Control):
integrated signal amplifier that allows viewing even in critical conditions. It is automatic and does not require specific settings.

WDR (WIDE DYNAMIC RANGE)

It is the professional solution in cases where you have to operate in conditions of high light / shadow contrast. Fundamental in the case of shots from the inside out, license plates, shaded spots or all situations where there is no homogeneity of light.

Supply:
A 12V DC power supply is required for the operation of this camera (not included)

Data sheet

DS-2CE56H8T-AITZF
Room
Image Sensor 5 MP CMOS image sensor
Resolution 2560 (H) × 1944 (V)
Min. Illumination Color: 0.003 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Time PAL: 1/25 s to 1/50,000 s
NTSC: 1/30 s to 1/50,000 s
Lens 2.7 mm to 13.5 mm motorized varifocal lens
Horizontal Field of View 92.3 ° to 29.3 °
Lens Mount Φ 14
Day & Night IR cut filter? Auto / Color / BW (Black and White)
Angle Adjustment Pan: 0 ° to 340 °; Tilt: 0 ° to 75 °; Rotate: 0 ° to 355 °
Frame Rate

TVI: 2 MP @ 25fps, 2 MP @ 30fps, 4 MP @ 25fps, 4 MP @ 30fps, 5 MP @ 20fps
AHD: 4MP @ 25fps, 4MP @ 30fps, 5MP @ 20fps
CVI: 4 MP @ 25fps, 4 MP @ 30fps
CVBS: PAL, NTSC

Menu
AGC Support
White Balance Auto / Manual
D / N Mode Auto / Color / BW (Black and White)
BLC (Backlight Compensation) Support
WDR Support, 130 dB
Language English
Functions Brightness, Sharpness, DNR, Mirror, Smart IR
Privacy Mask 4 programmable privacy masks
Interface
Video Output

Switchable TVI / AHD / CVI / CVBS

Event
Motion Detection 4 programable areas
General
Operating Conditions

-40 ° C to 50 ° C (-40 ° F to 122 ° F), humidity: 90% or less (non-condensing)

Power Supply AC24V / DC12C
-A: 9.6 VDC to 14.4 VDC; 19.2 VAC to 28.8 VAC
Power Consumption Max. 8 W
Material Plastic
IR Range Up to 60 m
Communication Up the coax, Protocol: HIKVISION-C (TVI output)
Dimension Φ 136 mm × 101.9 mm (Φ 5.35 "× 4.01")
Weight Approx. 430 g (0.95 lb.)

Further details

DS-2CE56H1T-VPIT3ZE

Download

Download the English brochure
