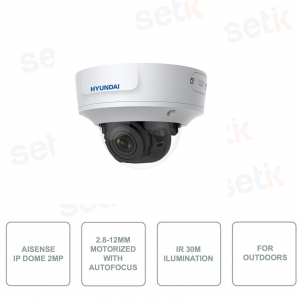

HYUNDAI - HYU-665 - AIsense 2MP IP Dome Camera - IR Illumination up to 30m - 2.8-12mm Motorized Lens with Autofocus
HYU-665 Hyundai dome Aisense Series video surveillance camera with external 30md IR illuminator, 2MP 1 / 2.8 "CMOS sensor , 2 MP digital resolution and 2.8-12mm varifocal lens with motorized zoom . WDR 120dB , ICR, IP67, IK10, Slot for MicroSD Card insertion up to 128GB, ROI, PoE, RJ45 Network Interface, Video Compression up to H.265 +.
FIND INSTALLER
HYUNDAI 2 MEGAPIXEL MOTORIZED DOME CAMERA WITH AUTOFOCUS - IR 30M - WDR 120dB
HYU-665 - HYUNDAI - AISENSE Series outdoor dome camera
2 Megapixel resolution - 2.8-12mm motorized zoom lens - 2MP 1 / 2.8 "CMOS sensor - 1080p resolution at 25fps - 30M IR illuminator - WDR 120dB - ROI - AGC - BLC - White balance - Day / night mode - Color compression video up to H.265 + for storage optimization - MicroSD slot up to 128GB - 3DNR - Dual Stream - Ideal for outdoor use - RJ45 network interface - ONVIF® - PoE - Two-way audio - Reset button - ISAPI - 3AXIS
Hyundai 3 Year Extended Warranty! - IP67 protection (dust / immersion) - IK10 protection against vandalism - 12V DC power supply (not included).
Product details
|
HYUNDAI CATALOG: Are you looking for a HYUNDAI product but couldn't find it on our site? Don't worry, we can supply you with ALL Hyundai products: consult the CATALOG or contact us by email. |
 |
Onvif, the absolute standard for IP cameras. Being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera for its own sake that can never be used together with recording systems. |
 |
The advantage of a PoE camera is obvious, it allows it to be powered with the same cable with which it communicates without bringing additional power cables and without having to install a separate power supply system, a PoE camera guarantees constant voltages and simple installation. |
 |
This camera features a resolution of 2Megapixel 2 MP! 2MP 1 / 2.8 "CMOS Sensor. 1080p digital resolution at 25 fps frames per second. |
|
|
This camera is equipped with a 2.8-12 mm varifocal lens with motorized zoom |
|
|
IR illuminator with maximum range that reaches 30 meters away |
 |
Smart H.265 + Smart H.265 + is the optimized implementation of the H.265 codec which uses a scene adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction useful for delivering high quality video without straining the network. Smart H.265 + greatly reduces bit rate and storage requirements compared to standard H.265 compression
|
 |
This camera features STANDARD IVS FUNCTIONS |
 |
This camera has 1 input + 1 audio output |
 |
BLC (Back Light Compensation): it is one of the 3 possible steps in the management of images with contrast, typical situations are: entrances or exits from parking lots, license plates, special lights, entrances with shots from inside to outside, etc. Light compensation is one of the most complex operations possible, the BLC function allows a discreet adaptation to these situations  |
|
|
The camera has an OSD menu , through which it is possible to manage and adjust some functions such as: WB, AGC, AE, DNR, etc. |
 |
ULTRA WDR up to 120dB WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light / shadow contrast. Fundamental in the case of shots from the inside out, license plates, shaded spots or all situations where there is no homogeneity of light.  |
 |
Day / Night: allows you to adapt the lens to night / day vision, and the relative automatic management of the IR illuminator, when present.  |
 |
The IR CUT FILTER is a mechanical filter that allows a correct display of images in daylight viewing conditions, filtering the typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies. |
 |
AGC is an integrated signal amplifier that allows vision even in critical conditions. It is automatic and does not require specific settings. |
 |
This camera with 1 inputs and 1 alarm output |
 |
3D-NR is the most advanced version of Noise Reduction management, it allows still images in the presence of low light and in movement, The currently most powerful solution to obtain maximum results in the presence of low light.  |
 |
Possibility to insert Micro SD up to maximum 128Gb |
 |
Protection level IP67 (Dust / Diving) |
 |
IK 10 is the highest level of protection from direct damage. This allows the use of the camera even if there is a risk of vandalism
|
 |
A 12VDC power supply is required for the operation of this camera (not included)  |
 |
This product is covered by a 3 Year Warranty! |
Data sheet
| Model | HYU-665 |
| Room | |
| Image Sensor |
|
| Digital Resolution | 1080P (1920x1080), 1.3MP (1280x960), 720P (1280x720), etc. |
| Video Compression |
|
| Stream |
Dual Stream
|
| Day / Night | with removable mechanical filter |
| IR Illumination |
30 meters |
| Minimum Illumination |
0.007 lux F1.4 color (AGC On) |
| Lens |
2.8 ~ 12mm motor lens |
| Viewing Angle |
113 ° ~ 32 ° (H), 59 ° ~ 18 ° (V), 137 ° ~ 37 ° (D) |
| Focus Mode |
Car |
| Advanced |
|
| Adjustments |
Brightness, saturation, contrast, sharpness, gain control and white balance through client software and web browser |
| Smart Functions |
Detection of line crossing, intrusion detection, detection of entry or exit to region, false alarm filter by objective classification |
| Audio |
|
| Ambient Noise Filter |
Yes |
| Alarm |
1 in / 1 out |
| Reset Button |
Yes |
| Storage |
MicroSD / SDHC / SDXC up to 128GB (card is not included) |
| Network Interface |
RJ45 (10/100 Base-T) |
| Network Protocols |
TCP / IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour |
| Compatibility |
ONVIF® (Profile S, G), ISAPI, DDNS DEMES |
| Plug & Play |
NEXTGEN NVR |
| Power Supply | 12V DC |
| Consumption | 0.9A, max. 11W |
| PoE | 802.3af, Class 3 |
| Working Temperature | -30 ° C ~ + 60 ° C |
| RH |
95% (without condensation) |
| Protection |
|
| Material |
Metal and plastic case |
| Dimensions | Ø153.3 x 111.6 (L) mm |
| Weight | 890g |
| 3AXIS | 0 ° ~ 355 ° (PAN), 0 ° ~ 75 ° (TILT), 0 ° ~ 355 ° (Rotation) |
| Power Supply | not included |
