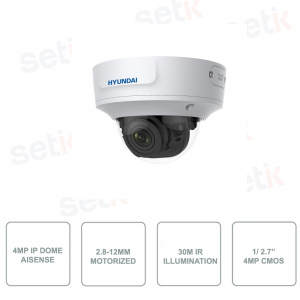

HYUNDAI - HYU-667 - 4MP AISENSE IP Dome Camera - 2.8-12mm Motorized Lens - Outdoor - Illumination up to 30m
HYU-667 Hyundai Dome outdoor video surveillance camera with AISENSE technology. CMOS sensor, 4MP resolution and 2.8 ~ 12mm motorized lens. I Smart IR 30M illuminator, OSD, WDR 120dB, 3D-DNR, IP67 protection - IK10 Vandal Proof Camera - Compatible via ONVIF - PoE - 3AXIS. Ideal for video surveillance systems - MicroSD slot up to 128GB - Autofocus - Reset button - H.265 + Intelligent Video Compression - Alarm in and out - Two-way audio
FIND INSTALLER
OUTDOOR CAMERA HYUNDAI DOME 4 MEGAPIXEL 2.8 ~ 12MM MOTORIZED - TWO-WAY AUDIO - ALARM - CMOS SENSOR
HYU-667 - HYUNDAI - Hyundai IP outdoor dome camera - AISENSE Technology
Resolution 4 MP 4Megapixel - Motorized lens 2.8 ~ 12mm - CMOS sensor 1 / 2.7 "DA 4MP - IVS Intelligent Functions - Autofocus - IR LED illuminator 30M - OSD, WDR 120dB, 3D-DNR, IP67 protection - IK10 Vandal Proof - MicroSD Slot up a 128GB - Reset Button - 12V DC power supply (not included) - ICR filter - PoE - ONVIF® - Intelligent Video Compression H.265 + - Two-way Audio - Alarm in and out
Hyundai 3 Year Extended Warranty!
Product details
|
HYUNDAI CATALOG: Are you looking for a HYUNDAI product but couldn't find it on our site? Don't worry, we can supply you with ALL Hyundai products: consult the CATALOG or contact us by email. |
 |
The advantage of a PoE camera is obvious, it allows it to be powered with the same cable with which it communicates without bringing additional power cables and without having to install a separate power supply system, a PoE camera guarantees constant voltages and simple installation. | |
 |
Onvif, the absolute standard for IP cameras. Being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera for its own sake that can never be used together with recording systems | |
 |
This camera features a resolution of 4Megapixel 4 MP! 4Megapixel 1 / 2.7 "CMOS sensor |
|
 |
This camera features a 2.8mm-12mm Motorized Lens with Autofocus function for autofocus. | |
|
|
IR illuminator maximum range 30 meters. |
|
 |
Smart H.265 + Smart H.265 + is the optimized implementation of the H.265 codec which uses a scene adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction useful for delivering high quality video without straining the network. Smart H.265 + greatly reduces bit rate and storage requirements compared to standard H.265 compression
|
|
 |
This camera features SMART DETECTION: - Line crossing - Intrusion
|
|
|
|
The camera has an OSD menu , through which it is possible to manage and adjust some functions such as: AWB, AGC, ATW, 2D-DNR, etc. |
|
 |
BLC (Back Light Compensation): it is one of the 3 possible steps in the management of images with contrast, typical situations are: entrances or exits from parking lots, license plates, special lights, entrances with shots from inside to outside, etc. Light compensation is one of the most complex operations possible, the BLC function allows a discreet adaptation to these situations  |
|
 |
ULTRA WDR up to 120dB WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light / shadow contrast. Fundamental in the case of shots from the inside out, license plates, shaded spots or all situations where there is no homogeneity of light.  |
|
 |
Day / Night: allows you to adapt the lens to night / day vision, and the relative automatic management of the IR illuminator, when present.  |
|
 |
The IR CUT FILTER is a mechanical filter that allows a correct display of images in daylight viewing conditions, filtering the typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies. |
|
 |
This camera with 1 inputs and 1 alarm output | |
 |
This camera is equipped with the ROI function. The images deriving from IP cameras are “compressed”, consequently the quality is set during the recording phase. Especially on cameras with a very high resolution, it is often necessary to reduce the quality in order to guarantee a reduced bandwidth occupation and record a greater number of days or cameras. The ROI allows you to define areas where you can set a higher quality (for example a door, the area where the plate usually passes, an exit, etc.). In that area I can set a higher quality thus guaranteeing me a greater definition of the image.  |
|
 |
This camera features Two Way Audio | |
 |
3D-NR is the most advanced version of Noise Reduction management, it allows still images in the presence of low light and in movement, The currently most powerful solution to obtain maximum results in the presence of low light.  |
|
|
|
|
 |
This camera has 1 input + 1 audio output | |
 |
Arm with movement on 3 axes: 0 ° ~ 355 ° (PAN), 0 ° ~ 75 ° (TILT), 0 ° ~ 355 ° (Rotation) |
|
 |
Possibility to insert Micro SD up to maximum 128Gb | |
 |
Protection level IP67 (Dust / Diving) | |
 |
IK 10 is the highest level of protection from direct damage. This allows the use of the camera even if there is a risk of vandalism
|
|
 |
A 12VDC power supply is required for the operation of this camera (not included)  |
|
 |
This product is covered by a 3 Year Warranty! |
Data sheet
| Model | HYU-667 |
| Image Sensor |
1 / 2.7 "CMOS sensor, 4 MP |
| Digital Resolution | 4MP (2688x1520), 1080P (1920x1080), 720P (1280x720), etc. |
| Video Compression | |
| Stream |
Dual Stream
|
| Day / Night | With removable mechanical filter |
| IR Illumination | 30m |
| Minimum Illumination | 0.01 lux F1.4 color (AGC On) |
| Lens |
2.8 ~ 12mm motor lens |
| Viewing Angle |
101 ° ~ 29 ° (H), 54 ° ~ 16 ° (V), 121 ° ~ 34 ° (D) |
| Focus Mode | Automatic |
| OSD | ONVIF® for NEXTGEN NVR |
| Advanced |
|
| Adjustment |
Brightness, saturation, contrast, sharpness, gain control and white balance through client software and web browser |
| Smart Functions |
Detection of line crossing, intrusion detection, detection of entry or exit to region, false alarm filter by objective classification |
| Audio | 1 in / 1 out |
| Noise Filter Ambiental | Yes |
| Alarm | 1 in / 1 out |
| Reset Button | Yes |
| Storage |
MicroSD / SDHC / SDXC up to 128GB (card is not included) |
| Network Interface | RJ45 (10/100 Base-T) |
| Network Protocols |
TCP / IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour |
| Compatibility | ONVIF® (Profile S, G), ISAPI, DDNS DEMES |
| Plug & Play | NEXTGEN NVR |
| Power Supply | 12V DC |
| Consumption | 0.9A, max. 11W |
| PoE |
802.3af, Class 3 |
| Working Temperature | -30 ° C ~ + 60 ° C |
| RH | 95% (without condensation) |
| Protection | IP67, IK10 |
| Material |
Metal and plastic case |
| Dimensions | Ø153.3 x 111.6 (L) mm |
| Weight | 890 g |
| 3AXIS |
0 ° ~ 355 ° (PAN), 0 ° ~ 75 ° (TILT), 0 ° ~ 355 ° (Rotation) |
| Power Supply | not included |
