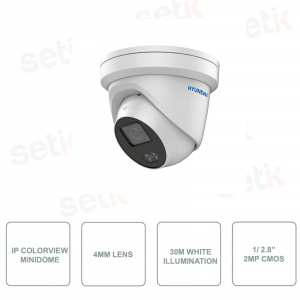

HYUNDAI - HYU-677 - Camera video surveillance with Minidomes Illuminator 30m with white light outdoor, 2 MP 25fps resolution and 4mm fixed lens, 1 / 2.8 " 2MP COLOR VIEW CMOS sensor, WDR 120dB , face detection, White balance, OSD, AGC, 3DNR, ROI, BLC, HLC, IP67 - MicroSD slot up to 128GB - Video Compression up to H.265 + for optimal storage space saving - RJ45 - PoE - ONVIF - Metal body - For video surveillance systems.
FIND INSTALLER
HYUNDAI 5 MEGAPIXEL FIXED 4IN1 BULLET CAMERA - IR 20M WITH WHITE LIGHT - WDR 130dB - COLOR VIEW -
HYU-677 - HYUNDAI - 2MP Minidome outdoor camera, COLORVIEW, with 4mm lens and 2MP CMOS sensor
Resolution 2 Megapixel - Fixed lens 4mm - CMOS sensor 1 / 2.8 " 2 MP - Color mode 24h - ONVIF® - PoE - 30 M IR illuminator with white light - WDR 130dB - COLOR VIEW - Triple Stream - MicroSD Slot up to 128GB - Compression of the video up to H.265 + (Maximum storage efficiency available) - Face detection - Smart advanced features - RJ45 - Reset button - Extended 3 Year Hyundai warranty! - IP67 protection (dust / immersion) - Ideal solution for the application in outdoor video surveillance systems - 12V DC power supply (not included)
Product details
|
HYUNDAI CATALOG: Are you looking for a HYUNDAI product but couldn't find it on our site? Don't worry, we can supply you with ALL Hyundai products: consult the CATALOG or contact us by email. |
 |
All Onvif , the absolute standard for IP cameras, being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera for its own sake that can never be used together with recording systems This camera supports Onvif version |
 |
The advantage of a PoE camera is obvious, it allows it to be powered with the same cable with which it communicates without bringing additional power cables and without having to install a separate power supply system, a PoE camera guarantees constant voltages and simple installation. |
 |
This camera features a resolution of 2MP! 2MP 1 / 2.8 "CMOS sensor! |
|
|
CMOS sensor with ColorView Technology ! COLOR VIEW: By adopting a high performance sensor and large aperture lens, this camera is able to provide a more colorful image even in low ambient light conditions. Full-color starlight cameras are perfect for low-light applications that exceed 1 lux, such as parking lots, urban streets, schools, museums, etc. 24H COLOR: This camera has no IR CUT filter. The camera does not switch to B / W but the vision will always be in color.
|
 |
Smart H.265 + Smart H.265 + is the optimized implementation of the H.265 codec which uses a scene adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction useful for delivering high quality video without straining the network. Smart H.265 + greatly reduces bit rate and storage requirements compared to standard H.265 compression
|
 |
Fixed 4mm lens |
 |
BLC (BACK LIGHT COMPENSATION) is one of the 3 solutions for managing images with contrast. The BLC function allows a discreet adaptation to all those situations where shooting is difficult (entrances or exits of parking lots, registration of license plates, presence of special lights etc ...)  |
 |
This camera provides advanced intelligent functions including. face detection.
|
 |
This camera is equipped with the ROI function. The images deriving from IP cameras are “compressed”, consequently the quality is set during the recording phase. Especially on cameras with a very high resolution, it is often necessary to reduce the quality in order to guarantee a reduced bandwidth occupation and record a greater number of days or cameras. The ROI allows you to define areas where you can set a higher quality (for example a door, the area where the plate usually passes, an exit, etc.). In that area I can set a higher quality thus guaranteeing me a greater definition of the image.  |
|
|
White light IR illuminator. Maximum range supported up to 30m. |
|
|
The camera has an OSD menu , through which it is possible to manage and adjust some functions such as: WB, AGC, AE, DNR, etc. |
 |
ULTRA WDR up to 120dB |
 |
Day / Night: allows you to adapt the lens to night / day vision, and the relative automatic management of the IR illuminator, when present.  |
 |
ATW (Auto Tracing White Balance) refers to a modern technology that automatically and continuously adjusts the color balance of the camera according to the color temperature . ATW is a more advanced feature than AWB (Auto White Balance), and is very important as without it, images could be completely unusable. Possibility to adjust the color balance also manually (MWB) |
 |
AGC is an integrated signal amplifier that allows vision even in critical conditions. It is automatic and does not require specific settings. |
 |
Possibility to insert Micro SD up to a maximum of 128GB (Not Included) |
 |
Protection level IP67 (Dust / Diving) |
 |
Arm with movement on 3 axes: 0 ° ~ 360 ° (PAN), |
 |
A 12VDC power supply is required for the operation of this camera (not included)  |
 |
This product is covered by a 3 Year Warranty! |
Data sheet
| Model | HYU-677 |
| Image Sensor |
1 / 2.8 "CMOS sensor, 2 MP |
| Digital Resolution | 1080P (1920x1080) at 25 ips |
| Video Compression |
H.265 + / H.265 / H.264 + / H.264 / MJPEG |
| Stream | Triple Stream:
|
| Minimum Illumination |
0.0035 lux F1.0 (color 24 hours) |
| IR Illumination |
White illumination up to 30 meters |
| Lens |
4mm |
| Viewing Angle | 89 ° (H), 46 ° (V), 106 ° (D) |
| OSD menu |
Yes |
| Advanced |
|
| Adjustment |
image rotation, brightness, saturation, contrast, sharpness, gain control and white balance via client software and web browser |
| Smart Functions |
|
| Facial Detection |
Supported |
| Reset Button |
90% (without condensation) |
| Storage |
MicroSD / SDHC / SDXC up to 128GB (card is not included) |
| Network Interface |
RJ45 (10/100 Base-T) |
| Network protocols |
TCP / IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1x, QoS, IPv6, UDP, Bonjour |
| Compatibility |
ONVIF® (Profile S, G), ISAPI, DDNS DEMES |
| Plug & Play |
NEXTGEN NVR |
| Power Supply |
12V DC |
| Consumption | 0.5A, max. 6W |
| PoE | 802.3af, Class 3 |
| Working Temperature | -30 ° C ~ + 60 ° C |
| RH | 95% (without condensation) |
| Protection | IP67 |
| Material | Metal Case |
| Dimensions | Ø138.3 x 125.2 (Al) mm |
| Weight | 575g |
| 3AXIS | 0 ° ~ 360 ° (PAN), 0 ° ~ 75 ° (TILT), 0 ° ~ 360 ° (Rotation) |
| Power Supply | not included |
