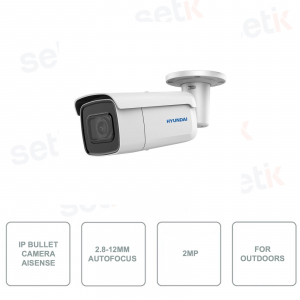

HYU-666 Hyundai AISENSE outdoor video surveillance camera. 1 / 2.8 "CMOS sensor, Motorized lens with 2.8-12mm autofocus resolution 2 MP 1080P at 25fps . Infrared illuminator up to 50m, OSD, AGC, BLC, WDR real 120dB, 3D-DNR, 1 fixed ROI zone, IVS, Audio bidirectional, MicroSD Slot, IP67, IK10, 3AXIS, alarm (1in / 1out).
FIND INSTALLER
HYUNDAI IP BULLET 2 MEGAPIXEL 2.8MM-12MM MOTORIZED OUTDOOR CAMERA WITH 2MP CMOS SENSOR
Infrared illuminator up to 50m - OSD, AGC, BLC, WDR real 120dB, 3D-DNR, 1 fixed ROI zone - IP67 and IK10 protection (against vandalism) - 3AXIS - Two-way audio - Reset button - ONVIF® - PoE + - ICR filter - Digital resolution 1080p at 25ips - Video Compression up to H.265 + - 1 alarm input - 1 alarm output - MicroSD slot up to 128GB - RJ45 connection - Ideal for outdoor use - Hyundai 3 Year Extended Warranty! -
Product details
HYUNDAI CATALOG: Are you looking for a HYUNDAI product but couldn't find it on our site? Don't worry, we can supply you with ALL Hyundai products: consult the CATALOG or contact us by email. |
 | All Onvif , the absolute standard for IP cameras, being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera for its own sake that can never be used together with recording systems This camera supports Onvif version |
 | The advantage of a PoE camera is obvious, it allows it to be powered with the same cable with which it communicates without bringing additional power cables and without having to install a separate power supply system, a PoE camera guarantees constant voltages and simple installation. |
 | HD-TVI is one of the technologies present in the world of video surveillance. |
 | This camera features a resolution of 2Megapixel 2 MP 1080P FULL-HD 2MP 1 / 2.8 "CMOS sensor. 1080p resolution at 25 frames per second. |
 |
This camera features 2.8-12mm varifocal lens with motorized zoom and autofocus function, which allows images to be automatically focused. Motorized zoom example: |
 | Smart H.265 + Smart H.265 + is the optimized implementation of the H.265 codec which uses a scene adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction useful for delivering high quality video without straining the network. Smart H.265 + greatly reduces bit rate and storage requirements compared to standard H.265 compression
|
| IR illuminator with illumination up to 50 meters! |
| The camera has an OSD menu , through which it is possible to manage and adjust some functions such as: AWB, AGC, ATW, 2D-DNR, etc. |
 | Day / Night: allows you to adapt the lens to night / day vision, and the relative automatic management of the IR illuminator, when present.  |
 | The IR CUT FILTER is a mechanical filter that allows a correct display of images in daylight viewing conditions, filtering the typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies. |
 | BLC (Back Light Compensation): it is one of the 3 possible steps in the management of images with contrast, typical situations are: entrances or exits from parking lots, license plates, special lights, entrances with shots from inside to outside, etc. Light compensation is one of the most complex operations possible, the BLC function allows a discreet adaptation to these situations  |
 | AGC is an integrated signal amplifier that allows vision even in critical conditions. It is automatic and does not require specific settings. |
 | Two-way audio, with one audio input and one audio output. |
 | ULTRA WDR up to 120dB WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light / shadow contrast. Fundamental in the case of shots from the inside out, license plates, shaded spots or all situations where there is no homogeneity of light.  |
 |
This camera is equipped with ROI function (1 fixed zone) The images deriving from IP cameras are “compressed”, consequently the quality is set during the recording phase. Especially on cameras with a very high resolution, it is often necessary to reduce the quality in order to guarantee a reduced bandwidth occupation and record a greater number of days or cameras. The ROI allows you to define areas where you can set a higher quality (for example a door, the area where the plate usually passes, an exit, etc.). In that area I can set a higher quality thus guaranteeing me a greater definition of the image.  |
 | IK 10 is the highest level of protection from direct damage. This allows the use of the camera even if there is a risk of vandalism
|
 | Protection level IP67 (Dust / Diving) |
 | Possibility to insert Micro SD up to a maximum of 128GB (not included) |
 | Arm with movement on 3 axes: |
 | Body made of metal, for a camera ideal for outdoor use. |
 | A 12VDC power supply is required for the operation of this camera (not included)  |
 | This product is covered by a 3 Year Warranty! |
Data sheet
| Model | HYU-666 |
| Image Sensor | 1 / 2.8 "CMOS sensor, 2MP |
| Digital Resolution | 1080P (1920x1080), 1.3MP (1280x960), 720P (1280x720), etc. |
| Video Compression | |
| Stream | Dual Stream:
|
| Min. Illumination | 0.007 lux F1.4 color (AGC On) |
| IR Illumination | Up to 50m |
| Viewing Angle | 113 ° ~ 32 ° (H), 59 ° ~ 18 ° (V), 137 ° ~ 37 ° (D) |
| Focus Mode | Car |
| Lens | 2.8 ~ 12mm motor lens |
| Day / Night | ICR with removable mechanical filter |
| OSD | Yes |
| White Balance | Yes |
| IR Illuminator | Smart IR: 20 meters - EXIR 2.0 Technology |
| Advanced |
|
| Adjustment |
Brightness, saturation, contrast, sharpness, gain control and white balance via client software and web browser |
| Smart Functions | Detection of line crossing, intrusion detection, detection of entry or exit to region, false alarm filter by objective classification |
| Ingress Protection | IP67, IK10 (Vandal Protection) |
| Audio | 1in-1out |
| Ambient Noise Filter | Yes |
| Alarm | 1 in / 1 out |
| Reset Button | -40 ° C ~ + 60 ° C |
| Storage | MicroSD / SDHC / SDXC up to 128GB (card is not included) |
| Network interface | TCP / IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour |
| Network protocols | 345 g |
| Compatibility | ONVIF® (Profile S, G), ISAPI, DDNS DEMES |
| Plug & Play | for NVR NEXTGEN |
| Power Supply | 12V DC |
| Consumption | 1.3A, max. 15.5W |
| PoE | 802.3at, Class 4 |
| Working Temperature | -30 ° C ~ + 60 ° C |
| RH | 95% (without condensation) |
| Material | Metal Case |
| Dimensions | Ø105 x 297.5 (L) mm |
| Weight | 1.4 kg |
| 3AXIS | 0 ° ~ 355 ° (PAN), 0 ° ~ 90 ° (TILT), 0 ° ~ 355 ° (Rotation) |
| Power Supply | not included |
