Dahua 4in1 2MP indoor camera 2.8mm microphone

Dahua 4in1 2MP indoor camera 2.8mm microphone
-55%

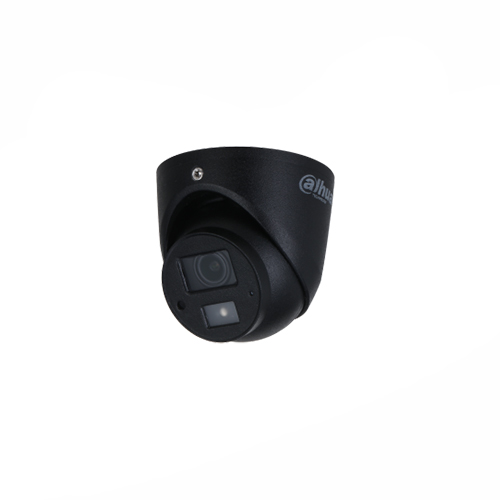

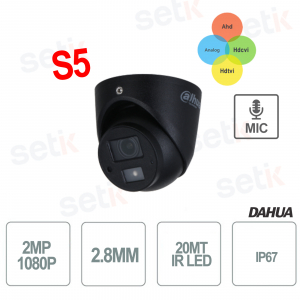

Dahua HAC-HDW3200G-S5 dome 4in1 camera (CVI / CVBS / AHD / TVI Switchable) , 1080P 2MP resolution, 2.8mm fixed lens and 1 / 2.7 "CMOS sensor. Smart IR illuminator 1 LED 20M, BNC Video Output, Day / Night , OSD Menu, integrated microphone. IP67. Color Black



Reference: HAC-HDW3200G-S5

Brand: Dahua

EAN: 6939554994081

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

The Asian Company, born in 2001, is famous because of the excellent quality of its product in terms of performances and potential.

The range of products made by Dahua includes not only classic CCTV systems but also more complex and articulate systems: not only video surveillance, indeed, but also access control, video intercoms, thermal cameras and much more.

The reliability, the cutting-edge technologies and the competitive prices offered by Dahua are only some of the reasons why Setik has always chosen to distribute this brand. Dahua has been for years a reference point in the international CCTV market, due to the huge investments dedicated every year to Research and Development. Numbers are clear: since 2016, Dahua has registered more than 800 patents with its own brand.

The Dahua-branded products sold by Setik Srl could eventually be delivered as OEM: this means that the items are absolutely original and made by Dahua, but characterized by a different aesthetic look reserved for the online market (generally as far as the logo and the package are regarded).

This has no effects on the warranty and on the technical specifications nor even on the possible updates and functionalities, because the products are authentic Dahua’s ones.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. is one of the leading solution providers in video surveillance industry, with more than 13,000 employees and 35 active branches all over the world.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-03-19 12:15:55 [link_rewrite] => dahua [meta_title] => Best Dahua Products: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua, dahuatech, dahua distribution, dahua national supplier [meta_description] => Dahua, TVCC manufacturer, IP, Analogue and SDI,HD-CVI [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


DAHUA: LOSS LEADER×


 INCREDIBLE DISCOUNTS
on a selection of DAHUA products
 Check out the promo now >>

DAHUA 8X8×


  DAHUA 8MEGAPIXEL
8MEGAPIXEL CAMERAS WITH

 QUANTITY DISCOUNT   AND  FREE SHIPPING!
 DISCOVER THEM NOW >>

CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

DAHUA 4IN1 FULL HD 1080P CAMERA - IP67 - S5 VERSION

Prodotto Dahua Eyeball camera - S5 version - Dahua
4in1 (CVI / CVBS / AHD / TVI) - 2Megapixel FULL HD - 2.8mm fixed lens
IR illuminator 1 LED 20M, Day / Night, Multi-language OSD menu, Built-in microphone
IP67 - Power supply NOT included - 24 month warranty

Product details

Telecamera Mini Dome con risoluzione 1080P e ottica fissa 3.6mm da interno
- Eyeball camera - Dahua
- S5 version
- 4in1 ( CVI / CVBS / AHD / TVI ) switchable
- Switchable technologies via OSD Menu or UTC Controller (not included)
- FULL HD 1080P 2MP resolution
- 2.8mm fixed lens
- 1 / 2.7 "CMOS image sensor
- Multi Language OSD Menu
- Smart IR 1 LED 20MT illuminator
- Day / Night, BLC / HLC / DWDR / AGC
- Built-in microphone
- Video Output: 1 Channel BNC High Definition / CVBS video output (interchangeable)
- Material: Metal
- Dimensions: 62.0 mm × 61.7 mm (Φ2.44 "× 2.43")
- IP67 protection
- 12V DC power supply not included
- 24 months warranty

Data sheet

Model HAC-HDW3200G
Room
Image Sensor 1 / 2.7 inch CMOS
Effective Pixels 1920 (H) × 1080 (V), 2MP
Scanning System Progressive
Electronic Shutter Speed PAL: 1/25 s – 1/100000 s
NTSC: 1/30 s – 1/100000 s
S / N Ratio > 65 dB
Min. Illumination 0.02 Lux / F2.0, 30IRE, 0 Lux IR on
Illumination Distance 20 m (65.6 ft)
Illuminator On / Off Control Car; manual
Illuminator Number 1 (IR)
Pan / Tilt / Rotation Range Pan: 0 ° -360 °
Tilt: 0 ° -78 °
Rotation: 0 ° –360 °
Lens
Lens Type Fixed-focal
Mount Type M12
Focal Length 2.8 mm
Max openings F2.0
Angle of view H: 101 °; V: 54 °; D: 119 °
Close Focus Distance

0.5 m (1.64 ft)

Video
Frame Rate CVI: 1080p @ 25 / 30fps; 720p @ 25 / 30fps; 720p @ 50 / 60fps; AHD: 1080p @ 25 / 30fps; 720p @ 25 / 30fps; TVI: 1080p @ 25 / 30fps; 720p @ 25 / 30fps; 720p @ 50 / 60fps; CVBS: 960H
Resolution 1080p (1920 × 1080); 720p (1280 × 720); 960H (960 × 576/960 × 480)
Day / Night Auto switch by ICR
BLC BLC / HLC / DWDR
WDR DWDR
White Balance Car; manual
Gain Control Car; manual
Noise Reduction 2D NR
Smart IR Yes
Mirror Off / On
Privacy Masking Off / On (8 area, rectangle)
Certifications
Certifications

CE / FCC, UL, IP6K9K, EN50155

Port
Audio Interface

Built-in Mic

Video Output

Video output choices of CVI / TVI / AHD / CVBS by one BNC port

Power
Power Supply

12V ± 30% DC

Power Consumption

Max 2.3W (12V DC, IR on)

Environment
Operating Conditions

–40 ° C to + 60 ° C (–40 ° F to 140 ° F); <95% (noncondensation)

Storage Conditions

–40 ° C to + 60 ° C (–40 ° F to 140 ° F); <95% (noncondensation)

Protection Grade

IP67

Structure
Casing

Metal

Dimensions

Φ62.0 mm × 61.7 mm (Φ2.44 "× 2.43")

Net Weight

0.17 kg (0.37 lb)

Gross Weight

0.27 kg (0.6 lb)

Further details

Tecnologia Quadribrida This camera is a QUADRIBRID (4 Integrated Technologies)
These cameras are at the same time Analogue , Ahd , HDCVI and HDVI .

1080P HDCVI Bullet Camera HAC-HDW3200G-S5

This camera features a resolution of 2Megapixel 1080P

1 / 2.7 "CMOS sensor

Ottica fissa 3.6mm

This camera features a 2.8mm fixed lens

Illuminatore IR fino a 30mt

Infrared illuminator with 1 LED and approximate maximum range of 20MT

This camera is also equipped with SMART IR technology.
Through this technology, the light emitted by the LEDs is adapted according to the framed object.
Tecnologia Smart IR

OSD (ON SCREEN DISPLAY) allows you to define masked areas, image correction, ATR, Day / Night sensitivity, Shutter speed, White balance, light compensation and much more ...

The OSD menu is multi-language and can be managed both via DVR and UTC Controller (not included)

Integrated microphone

Allows you to adapt the lens to Night / Day vision

BLC (Back Light Compensation) is one of the 3 possible steps in the management of images with contrast, typical situations are (entrances or exits from car parks, plates, special lights, entrances with shots from inside to outside, etc.) light is one of the most complex operations possible, the BLC function allows a discreet adaptation to these situations


Click to enlarge

AGC_Camera AGC is an integrated signal amplifier that allows vision even in critical conditions. It is automatic and does not require specific settings.
2D-DNR 2D-NR manages NOIS REDUCTION. Allows still images in low light and in motion. It is currently the most powerful solution for obtaining maximum results in low light conditions.

D-WDR (Digital Wide Dynamic Range) is the Software solution of the most powerful WDR integrated in the DSP, exactly as it happens for the digital zoom compared to the Optical Zoom, it is a software simulation of emulation of the WDR technology, however extremely useful in circumstances of strong contrast.

Protezione IP67 contro polveri e immersioni Protection level IP67 (Dust / Diving)

12VDC_Aliment DC12V power supply NOT included in the package.
Questo prodotto è coperto da garanzia 24 mesi italiana

This product is covered by a 24 month warranty.

Download

Download the English brochure

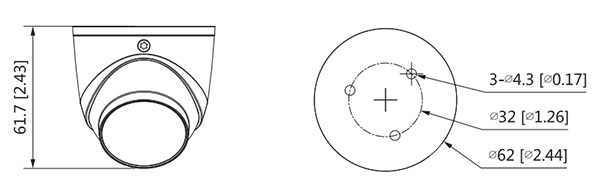

Schema con le dimensioni della telecamera dome HAC-HDW3200G-S5
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
