HYU-772 IP FIXED DOME outdoor camera, vandal-proof with 30M IR illuminator. 1 / 2.8 "2 Megapixel CMOS, 2.8-12mm motorized lens. OSD, AGC, BLC, WDR 120dB, 3D-DNR, video sensor, privacy mask, fixed ROI zone, 3 axis. IP67, IK10. Hyunday Nextgen
FIND INSTALLER

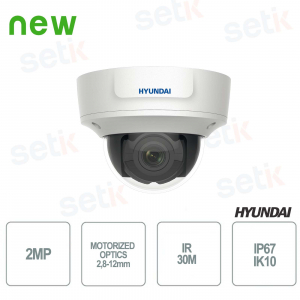

FIXED IP 2 MP OUTDOOR DOME CAMERA - VANDAL-PROOF - IR 30M - MOTORIZED OPTICS
HYU-772 FIXED IP DOME outdoor cameraProduct details
|
HYUNDAI CATALOG: Are you looking for a HYUNDAI product but couldn't find it on our site? Don't worry, we can supply you with ALL Hyundai products: consult the CATALOG or contact us by email. |
 |
All Onvif , the absolute standard for IP cameras, being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera for its own sake that can never be used together with recording systems This camera supports Onvif version |
 |
The advantage of a PoE camera is obvious, it allows it to be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power supply system, a PoE camera guarantees constant voltages and simple installation. |
 |
This camera features a resolution of 1920x1080 at 25 ips 2 megapixels 1 / 2.8 "CMOS sensor |
|
|
This camera is equipped with 2.8-12 mm motorized lens with autofocus. |
|
|
IR illuminator with maximum range up to 30m. |
|
|
The camera has an OSD menu , through which it is possible to manage and adjust some functions such as: AWB, AGC, 3D-DNR, etc. |
 |
Day / Night: allows you to adapt the lens to night / day vision, and the relative automatic management of the IR illuminator, when present.  |
 |
The IR CUT FILTER is a mechanical filter that allows a correct display of images in daylight viewing conditions, filtering the typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies. |
 |
AGC is an integrated signal amplifier that allows vision even in critical conditions. It is automatic and does not require specific settings. |
 |
ULTRA WDR up to 120dB WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light / shadow contrast. Fundamental in the case of shots from the inside out, license plates, shaded spots or all situations where there is no homogeneity of light. The higher the db value, the greater the camera's ability to manage the strong difference in the backlight present. Common WDRs usually reach 80db, the human eye is able to recognize a difference of up to 100db. This model reaches up to 120db managing very strong contrast levels.  |
 |
This camera is equipped with the ROI function. The images deriving from IP cameras are “compressed”, consequently the quality is set during the recording phase. Especially on cameras with a very high resolution, it is often necessary to reduce the quality in order to guarantee a reduced bandwidth occupation and record a greater number of days or cameras. The ROI allows you to define areas where you can set a higher quality (for example a door, the area where the plate usually passes, an exit, etc.). In that area I can set a higher quality thus guaranteeing me a greater definition of the image.  |
 |
Arm with movement on 3 axes. |
 |
Protection level IP67 (Dust / Diving) |
 |
IK 10 is the highest level of protection from direct damage. This allows the camera to be used even if there is a risk of vandalism
|
 |
A 12V DC power supply is required for the operation of this camera (not included)  |
 |
This product is covered by a 3 Year Warranty! |
Data sheet
| Model | HYU-772 |
| FEATURES | |
|
1 / 2.8 "2 megapixels CMOS sensor |
|
|
Up to 1080P (1920x1080) at 25 ips |
|
|
2.8 ~ 12mm motorized lens with autofocus |
|
|
Video compression H.265 +, H.265, H.264 +, H.264 |
|
|
Dual stream |
|
|
WDR 120dB, BLC, 3D-DNR, 1 ROI |
|
|
Intelligent analysis 2 behaviors |
|
|
Infrared illumination of up to 30 meters |
|
|
MicroSD card slot of up to 128GB (card not included) |
|
|
Degree of protection IP67 |
|
|
IK10 anti-vandal protection |
|
|
Support PoE |
|
| SPECIFICATIONS | |
|
1 / 2.8 ”megapixels CMOS sensor |
|
|
Digital resolution: 1080P (1920x1080), 1.3MP (1280x960), 720P (1280x720), etc. |
|
|
Compression format H.265 + / H.265 / H.264 + / H.264 / MJPEG |
|
|
Main stream: 1080P, 1.3MP, 720P (25 ips) |
|
|
Sub stream: 640x480, 640x360, 320x240 (25 ips) |
|
|
Day / night mode with removable mechanical filter |
|
|
Infrared illumination: 30 meters |
|
|
0.028 lux F2.0 color / 0.0028 lux F2.0 (B / W) / 0 lux IR On |
|
|
2.8 ~ 12mm motorized lens with autofocus |
|
|
Viewing angle: 99.6 ° ~ 35 ° (H), 53.5 ° ~ 20 ° (V), 118.6 ° ~ 40.2 ° (D) |
|
|
OSD menu |
|
|
Automatic gain control |
|
|
Backlight Compensation: BLC? |
|
|
WDR 120dB |
|
|
3D digital noise reduction |
|
|
1 fixed main stream ROI zone |
|
|
Video sensor and privacy mask |
|
|
Adjustment of brightness, saturation, contrast, sharpness, image rotation adjustable by customer software or web browser |
|
|
Intelligent analysis: Line crossing detection, intrusion detection |
|
|
MicroSD card slot of up to 128GB (card not included) |
|
|
Reset button |
|
|
Network interface: RJ45 (10 / 100M) self-adaptive |
|
|
Network protocols: TCP / IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP ™, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour |
|
|
Compatible with ONVIF® (Profile S, G), ISAPI |
|
|
Plug & Play connection with NEXTGEN NVR |
|
|
Compatible with DDNS DEMES |
|
|
Compatible with IE8 +, Chrome 31-44, Firefox30-51, Safari 8+ navigators |
|
|
Power supply: 12V DC (± 25%) |
|
|
Consumption: 10W (PoE 12W) |
|
|
Admite PoE 802.3af, class 3 |
|
|
Operating temperature -30 ° C ~ + 60 ° C |
|
|
Humidity: 95% (without condensation) |
|
|
Degree of protection IP67 |
|
|
IK10 vandal-proof protection |
|
|
Metal casing |
|
|
Dimensions: Ø153.3 x 111.6 mm |
|
|
Weight: 880 g |
|
|
3AXIS: 0 ° ~ 355 ° (PAN), 0 ° ~ 75 ° (TILT), 0 ° ~ 355 ° (rotation) |
|
|
The power supply is sold separately |
|
