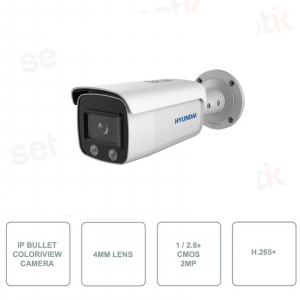

HYU-679 Hyundai ColorView Series Video Surveillance Camera, IP Bullet with 30 M Smart IR Illuminator, outdoor, 2 MP resolution and 4mm fixed lens, 1 / 2.8 "2MP CMOS sensor, WDR 120dB, ROI, BLC, HLC, 3D-DNR - 24h color mode - Slot for MicroSD Card up to 128GB - IP67 protection - PoE - Video Compression H.265 + - Ideal for surveillance systems set up outdoors.
FIND INSTALLER
HYUNDAI 2 MEGAPIXEL POE BULLET IP CAMERA WITH FIXED LENS 4MM - IR 30M - WDR 120dB - COLOR VIEW - FOR OUTDOOR
HYUNDAI - HYU-679 - Bullet IP outdoor camera with ColorView function
Resolution 2 Megapixel - Optical Fixed 4mm - CMOS Sensor 1 / 2.8 "2MP
30 M IR Illuminator with White Illumination - Day / Night (ICR) - WDR 120dB - Hyundai 3 Years Extended Warranty! - IP67 protection (dust / diving) - PoE - OSD - ROI - 3D-DNR - BLC - HLC - Facial Detection - Reset button - Triple Stream - Smart Functions - 3AXIS - 24h color mode - Ideal for outdoor use in video surveillance systems.
Product details
|
HYUNDAI CATALOG: Are you looking for a HYUNDAI product but couldn't find it on our site? Don't worry, we can supply you with ALL Hyundai products: consult the CATALOG or contact us by email. |
 |
The advantage of a PoE camera is obvious, it allows it to be powered with the same cable with which it communicates without bringing additional power cables and without having to install a separate power supply system, a PoE camera guarantees constant voltages and simple installation. |
 |
Onvif, the absolute standard for IP cameras. Being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera for its own sake that can never be used together with recording systems. |
 |
This camera features a resolution of 2 Megapixel 1080p! 2MP 1 / 2.8 "CMOS. |
|
|
CMOS sensor with Color View Starlight Technology ! COLOR VIEW STARLIGHT: By adopting a high performance sensor and large aperture lens, this camera is able to provide a more colorful image even in low ambient light conditions. Full-color starlight cameras are perfect for low-light applications that exceed 1 lux, such as parking lots, urban streets, schools, museums, etc. 24H COLOR: This camera has no IR CUT filter. The camera does not switch to B / W but the vision will always be in color.
|
 |
Fixed 4mm lens. |
 |
Triple Stream!
|
 |
This camera features INTELLIGENT FUNCTION: This camera provides functions of:
|
 |
ULTRA WDR up to 120dB WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light / shadow contrast. Fundamental in the case of shots from the inside out, license plates, shaded spots or all situations where there is no homogeneity of light. The higher the db value, the greater the camera's ability to manage the strong difference in the backlight present. Common WDRs usually reach 80db, the human eye is able to recognize a difference of up to 100db. This model reaches up to 120db managing very strong contrast levels.  |
 |
This camera is equipped with the ROI function. The images deriving from IP cameras are “compressed”, consequently the quality is set during the recording phase. Especially on cameras with a very high resolution, it is often necessary to reduce the quality in order to guarantee a reduced bandwidth occupation and record a greater number of days or cameras. The ROI allows you to define areas where you can set a higher quality (for example a door, the area where the plate usually passes, an exit, etc.). In that area I can set a higher quality thus guaranteeing me a greater definition of the image.  |
 |
Smart H.265 + Smart H.265 + is the optimized implementation of the H.265 codec which uses a scene adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction useful for delivering high quality video without straining the network. Smart H.265 + greatly reduces bit rate and storage requirements compared to standard H.265 compression
|
|
|
White light IR illuminator. Maximum range 30 meters. This camera is also equipped with SMART IR technology. |
|
|
The camera has an OSD menu , through which it is possible to manage and adjust some functions such as: WB, AGC, AE, DNR, etc. |
 |
Day / Night: allows you to adapt the lens to night / day vision, and the relative automatic management of the IR illuminator, when present.  |
 |
BLC (Back Light Compensation): it is one of the 3 possible steps in the management of images with contrast, typical situations are: entrances or exits from parking lots, license plates, special lights, entrances with shots from inside to outside, etc. Light compensation is one of the most complex operations possible, the BLC function allows a discreet adaptation to these situations  |
 |
HLC (High Light Compensation) allows greater light management, in the presence of direct light (cars, torches, etc ...). It also prevents attempts to blur the image.  |
 |
The IR CUT FILTER is a mechanical filter that allows a correct display of images in daylight viewing conditions, filtering the typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies. |
 |
AGC is an integrated signal amplifier that allows vision even in critical conditions. It is automatic and does not require specific settings. |
 |
Protection level IP67 (Dust / Diving) |
 |
Arm with 3-axis movement: 0 ° ~ 360 ° (PAN), 0 ° ~ 90 ° (TILT), 0 ° ~ 360 ° (Rotation). |
 |
Possibility to insert Micro SD up to a maximum of 128GB (not included) |
 |
A 12VDC power supply is required for the operation of this camera (not included)  |
 |
This product is covered by a 3 Year Warranty! |
Data sheet
| Model | HYU-679 |
| Image Sensor |
1 / 2.8 "CMOS sensor, 2 MP |
| Digital Resolution | 1080P (1920x1080), 1.3MP (1280x960), 720P (1280x720), etc. |
| Video Compression |
H.265 + / H.265 / H.264 + / H.264 / MJPEG |
| Stream | Triple Stream:
|
| Minimum Illumination | 0.0035 lux F1.0 (24 hour color) |
| Lens |
4mm |
| Viewing Angle | 89 ° (H), 46 ° (V), 106 ° (D) |
| IR Illuminator |
Smart IR: 30 meters white illumination |
| OSD menu |
Yes |
| Advanced |
|
| Adjustment |
Image rotation, brightness, saturation, contrast, sharpness, gain control and white balance via client software and web browser |
| Smart Functions |
Tripwire, intrusion detection, object elimination, unnatended luggage, scene change detection, facial detection |
| Reset Button | Yes |
| Compatibility | ONVIF® (Profile S, G), ISAPI, DDNS DEMES |
| Plug & Play | With NVR NEXTGEN |
| Power Supply |
12V DC |
| RH: |
95% (without condensation) |
| Ingress Protection |
IP67 |
| PoE Standard | 802.3af, Class 3 |
| Working Temperature | -30 ° C ~ + 60 ° C |
| Material |
Metal Csse |
| Power supply |
12V DC (± 25%) |
| Consumption |
0.7A, max. 9W |
| Dimensions |
Ø105 x 290.7 (L) mm |
| Weight |
1.2 kg |
| 3AXIS | 0 ° ~ 360 ° (PAN), 0 ° ~ 90 ° (TILT), 0 ° ~ 360 ° (Rotation) |
| Power Supply | Not included |
