HYU-743 Hyundai IR30m outdoor video surveillance dome camera - 1 / 2.8 ”Sony 2MP CMOS sensor - FULL HD - 2.8-12mm Varifocal lens - Onvif - PoE - H.265 + - ICR filter - OSD - AWB - AGC - 3D- DNR - BLC - WDR 120dB - 3AXIS - Smart functions - Face detection - Intrusion detection - IP66 - IK10
FIND INSTALLER
Description Product Details Data Sheet Further Details Download
HYUNDAI 2 MEGAPIXEL 2.8-12mm DOME CAMERA - FULL HD - PoE - Onvif

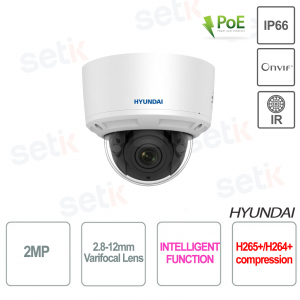

HYU-743 Hyundai dome outdoor camera
Sony CMOS with 2MP Resolution - FULL HD - 2.8-12 mm Varifocal Lens
Smart IR30 M Illuminator - ICR Filter, OSD AWB, AGC, 3D-DNR, BLC, WDR 120dB
Smart Features - Face Detection - Intrusion Detection
Hyundai 3 Year Extended Warranty! - IP66 - IK10 - for outdoor use
Product details
|
HYUNDAI CATALOG: Are you looking for a HYUNDAI product but couldn't find it on our site? Don't worry, we can supply you with ALL Hyundai products: consult the CATALOG or contact us by email. |
 |
All Onvif , the absolute standard for IP cameras, being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera for its own sake that can never be used together with recording systems This camera supports Onvif version. |
 |
The advantage of a PoE camera is obvious. It allows it to be powered with the same cable with which it communicates without bringing additional power cables and without having to install a separate power supply system. A PoE camera guarantees constant voltages and simple installation. |
 |
This camera has a resolution of 1920x1080 FULL-HD 2MEGAPIXEL |
|
|
This camera is equipped with 2.8-12mm varifocal lens |
|
|
Smart IR illuminator 30 METERS best possible image even in low light conditions. |
 |
ULTRA WDR up to 120dB
|
 |
This camera provides VIDEO ANALYSIS functions: |
 |
This camera features ADVANCED INTELLIGENT FUNCTIONS : - Face Detection  |
|
|
The camera has an OSD menu , through which it is possible to manage and adjust some functions such as: AWB, AGC, 3D-DNR, etc. |
 |
Day / Night: allows you to adapt the lens to night / day vision, and the relative automatic management of the IR illuminator, when present.  |
 |
The IR CUT FILTER is a mechanical filter that allows a correct display of images in daylight viewing conditions, filtering the typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies. |
 |
AGC is an integrated signal amplifier that allows vision even in critical conditions. It is automatic and does not require specific settings. |
 |
IP66: Protected from jets of water and dust |
 |
IK 10 is the highest level of protection from direct damage. This allows the camera to be used even if there is a risk of vandalism
|
 |
A 12VDC power supply is required for the operation of this camera (not included) |
 |
This product is covered by a 3 Year Warranty! |
Data sheet
| Model |
HYU-743 |
| Image Sensor |
1 / 2.8 "CMOS sensor, 2MP |
| Digital Resolution | 1080P (1920x1080), 1.3MP (1280x960), 720P (1280x720) |
| Video Compression |
H.265 + / H.265 / H.264 + / H.264 / MJPEG |
| Stream | Stream 1: 1080P, 1.3MP, 720P (25 fps) Stream 2: 640x480, 640x360, 320x240 (25 fps) Stream 3: 1080P, 720P, 640x360, 352x288 (25 fps) |
| IR Illumination | Up to 30m |
| Minimum Illumination | 0.018 lux F2.0 color (AGC On) |
| Lens |
2.8-12mm |
| Lens Type |
Varifocal with autofocus |
| Viewing Angle | 110 ° ~ 31 ° (H), 58 ° ~ 18 ° (V), 136 ° ~ 36 ° (D) |
| BLC | BLC, HLC |
| OSD | Yes |
| WDR | 120dB WDR |
| DNR | 3D-DNR |
| AGC | Yes |
| Intelligent Functions |
|
| Day / Night | Yes, with removable mechanical filter |
| Audio | 1 in / 1 out |
| Alarm | 1 in / 1 out |
| Storage |
MicroSD / SDHC / SDXC up to 128GB (card is not included) |
| Connection |
RJ45 10 / 100M |
| Network Protocols |
TCP / IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour |
| Compatibility | ONVIF® (profile S / G), ISAPI, DDN DEMES |
| Plug & Play | Yes, with NVR NEXTGEN |
| DDNS DEMES | Compatible with DDNS DEMES |
| Reset Button | Yes |
| Power Supply | 12V DC (± 25%) |
| Consumption | 0.8A, max. 10W |
| PoE | 802.3af, class 3 |
| Working Temperature | -30 ° C ~ + 60 ° C |
| RH | <95%, without condensation |
| Protection | IP66, IK10 |
| Houses | metal |
| Dimensions | Ø153.4 x 133.1 (L) mm |
| Weight | 1.3Kg |
| 3AXIS | 0 ° ~ 355 ° (PAN), 0 ° ~ 75 ° (TILT), 0 ° ~ 355 ° (Rotation) |
| Power Supply | Not Included |
