HYU-746 Hyundai thermal bullet video surveillance camera, outdoor, with 6.2 mm lens. 40M IR illumination. 6mm visible optics, 1 / 2.8 2MP CMOS. audio and alarm input / output, Intelligent detection (VCA), IP / ANALOG video output, microSD slot up to 128GB, WDR digital, 3D-DNR, PoE support, Litghtning-proof, IP66 protection. Hyundai Nextgen
FIND INSTALLER

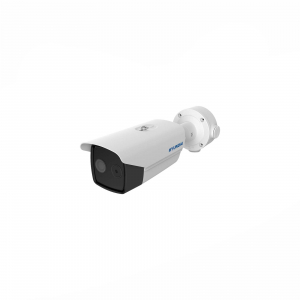

2 Megapixel THERMAL + VISIBLE BULLET CAMERA - AUDIO - ALARM - HYUNDAI
IR 40M - Resolution 160x12? 0 - Visible optics 6mm - CMOS 1 / 2.8 from 2MP - Audio - Alarm - VCA - microSD slot up to 128GB - Litghtning-proof
Hyundai 3 Year Extended Warranty! - IP66 protection (Rain / Dust)
Product details
|
HYUNDAI CATALOG: Are you looking for a HYUNDAI product but couldn't find it on our site? Don't worry, we can supply you with ALL Hyundai products: consult the CATALOG or contact us by email. |
| THERMAL DETECTION |
|---|
|
|
 |
This camera is equipped with a fixed 6.2mm lens People detection : 182 meters, recognition: 46 meters, identification: 23 meters Vehicle detection : 559 meters, recognition: 140 meters, identification: 70 meters |
 |
This camera is a THERMAL CAMERA .
|
 |
This camera features a resolution of 1920x1080 FULL-HD 1 / 2.8 "2 megapixels CMOS sensor |
|
|
IR illuminator with maximum range up to 40 meters. |
 |
The advantage of a PoE camera is obvious, it allows it to be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power supply system, a PoE camera guarantees constant voltages and simple installation. |
  |
This camera has advanced smart features:
|
 |
This camera has 1 input + 1 audio output |
 |
IP66: Guarantees protection from dust and water jets (rain) |
 |
This product is covered by a 3 Year Warranty! |
Data sheet
| Model | HYU-746 |
| THERMAL CHAMBER | |
|
Uncooled FPA (focal plane arrays) sensor with vanadium oxide. |
|
|
Thermal resolution 160x120 (the output image is 320x240) |
|
|
Pixel range: 17μm |
|
|
Thermal sensitivity (NETD): <40 mk="" 25="" c="" f="" 1="" p=""> |
|
|
Spectrum range: 8 μm ~ 14 μm |
|
|
Focal distance (thermal): 6.2mm |
|
|
Viewing angle (thermal): 25 ° x 18.7 ° |
|
|
Minimum focusing distance of 0.6 meters |
|
|
Effective distance in people: Detection (182m), Recognition (46m), Identification (23m) |
|
|
Effective Distance in Vehicles: Detection (559m), Recognition (140m), Identification (70m) |
|
|
15 adjustable color palettes, 3D-DNR |
|
|
Dynamic mejora of details |
|
|
Supports 4 types of VCA rules (intrusion, line crossing, region entry and region exit), maximum 8 rules |
|
|
Temperature range of -20 ° C ~ + 150 ° C |
|
|
Temperature accuracy of ± 8 ° C |
|
|
Support 10 fire detection points |
|
| VISIBLE ROOM | |
|
Image sensor (visible camera) CMOS 1 / 2.8 Progressive Scan of 2 megapixels |
|
|
Effective Pixels: 1920 x 1080 |
|
|
Infrared illumination of up to 40 meters |
|
|
Minimum Illumination: 0.002 lux F1.5 (color) / 0.0002 lux F1.5 (B / W) / 0 lux IR On |
|
|
Focal distance (visible optics): 6 mm |
|
|
Viewing angle (visible optics): 53 ° x 30 ° |
|
|
Removable mechanical filter |
|
|
WDR digital |
|
|
It supports bi-spectrum image viewing, image-in-image preview and image switching |
|
| IP COMMUNICATION AND INTEGRATION | |
|
Compression formats: H.265 + / H.265 / H.264 / H.264 + / MJPEG (baseline / main / high profile) |
|
|
Stream 1 thermal chamber: 160x120 at 25 ips (the image of salida es de 320x240) |
|
|
Stream 2 thermal chamber: 160x120 at 25 ips (the image of salida es de 320x240) |
|
|
1 visible camera stream: 1080P / 1.3MP / 720P at 25 ips |
|
|
Stream 2 visible camera: D1 / CIF / QCIF at 25 ips |
|
|
Audio Compression: G.711u / G.711a / G.722.1 / MP2L2 / G.726 / PCM |
|
|
1 self-adaptive 10 / 100M RJ45 port |
|
|
Protocols: IPv4 / IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE |
|
|
Up to 20 simultaneous views |
|
|
Up to 32 users, 3 levels: administrator, operator, user |
|
|
Compatibility API, ONVIF®, API, ISAPI, and third party management gateway |
|
|
Compatible with IE9 +, Chrome31-44, Firefox30-51, Safari5.02 + (Mac) navigators |
|
|
2 alarm inputs / 2 outputs |
|
|
1 audio input / 1 output |
|
|
Reset button |
|
|
MicroSD / SDHC / SDXC card slot (up to 128GB), with support for manual or alarm recording |
|
|
BNC output 1.0V [pp] / 75Ω (PAL / NTSC) |
|
|
RS485 port |
|
| ELECTRICAL AND ENVIRONMENTAL | |
|
Power supply: 12V DC, PoE (802.3af, class 4) |
|
|
Consumption: max. 12W |
|
|
Operating temperature -40 ° C ~ + 60 ° C |
|
|
Relative humidity: ≤90% (non-condensing) |
|
|
Degree of protection IP66 |
|
|
Lightning-proof of 6KV |
|
| PHYSICAL CHARACTERISTICS | |
|
Metal casing |
|
|
Dimensions: 113.5 (W) x 114.7 (H) x 352.4 mm |
|
|
Weight: 1,5 kg |
|
|
Includes wall mount and tube base |
|
|
Note: The actual distance values shown are nominal values and should be used as an estimate. Consult your sales representative for the recommended detection distances for our Vaelsys perimeter system. ? |
|
