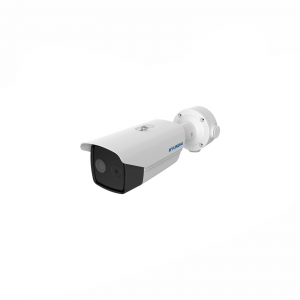

HYU-745 Hyundai thermal + visible bullet video surveillance camera with 40M IR illuminator. 4mm visible optics, 3.1mm thermal lens. WDR digital, 3D-DNR, Intelligent detection (VCA), Audio, Alarm, microSD slot, Lightning-proof, PoE support, IP / ANALOG video output. Compression up to H.265 +. IP66 protection.
FIND INSTALLER
THERMAL + VISIBLE BULLET CAMERA HYUNDAI - IR 40M - AUDIO - ALARM - HYUNDAI
IP - Thermal chamber resolution 160 x 120 - 4 mm visible optics - PoE - Audio - Alarm - microSD slot - Lightning-proof
Hyundai 3 Year Extended Warranty! - IP66 protection (Rain / Dust)
Product details
|
HYUNDAI CATALOG: Are you looking for a HYUNDAI product but couldn't find it on our site? Don't worry, we can supply you with ALL Hyundai products: consult the CATALOG or contact us by email. |
| THERMAL DETECTION |
|---|
|
|
 |
This camera is equipped with a fixed 4mm lens People detection : 91 meters, recognition: 23 meters, identification: 11 meters Vehicle detection : 280 meters, recognition: 70 meters, identification: 35 meters |
 |
This camera is a THERMAL CAMERA .
|
  |
This camera has advanced smart features:
|
 |
This camera has 1 input + 1 audio output |
 |
IP66: Guarantees protection from dust and water jets (rain) |
 |
This product is covered by a 3 Year Warranty! |
Data sheet
| Model | HYU-745 |
| THERMAL CHAMBER | |
|
FPA (Focal Plane Matrix) sensor not cooled with vanadium oxide |
|
|
Thermal resolution of 160x120 (the output image is 320x240) |
|
|
Pixel range: 17μm |
|
|
Thermal sensitivity (NETD): <40 mk="" 25="" c="" f="" 1="" p=""> |
|
|
Spectrum range: 8 μm ~ 14 μm |
|
|
Focal distance (thermal): 3.1mm |
|
|
Viewing angle (thermal): 50 ° x 37.2 ° |
|
|
Minimum focusing distance 0.2 meters |
|
|
Effective distance in people: Detection (91m), Recognition (23m), Identification (11m) |
|
|
Effective Distance in Vehicles: Detection (280m), Recognition (70m), Identification (35m) |
|
|
15 adjustable color palettes, 3D-DNR |
|
|
Dynamic enhancement of details |
|
|
Supports 4 types of VCA rules (intrusion, line crossing, region entry and region exit), maximum 8 rules |
|
|
Temperature range of -20 ° C ~ + 150 ° C |
|
|
Temperature accuracy of ± 8 ° C |
|
|
Supports 3 types of temperature measurement rules, 21 rules (10 points, 10 regions and 1 line) |
|
|
Support 10 fire detection points |
|
| VISIBLE ROOM | |
|
Image sensor (visible camera) CMOS 1 / 2.8 Progressive Scan of 2 megapixels |
|
|
Effective Pixels: 1920 x 1080 |
|
|
Infrared illumination of 40 meters |
|
|
Minimum Illumination: 0.002 lux F1.5 (color) / 0.0002 lux F1.5 (B / W) / 0 lux IR On |
|
|
Focal distance (visible optics): 4 mm |
|
|
Viewing angle (visible optics): 87 ° x 46.2 ° |
|
|
Removable mechanical filter |
|
|
WDR digital |
|
|
It supports bi-spectrum image function, image preview and image change |
|
| IP COMMUNICATION AND INTEGRATION | |
|
Compression formats: H.265 + / H.265 / H.264 / H.264 + / MJPEG (baseline / main / high profile) |
|
|
Stream 1 thermal camera: 160x120 @ 25 ips (output image is 320x240) |
|
|
Stream 2 thermal camera: 160x120 @ 25 ips (output image is 320x240) |
|
|
1 visible camera stream: 1080P / 1.3MP / 720P at 25 ips |
|
|
Visible camera stream 2: D1 / CIF / QCIF at 25 ips |
|
|
Audio Compression: G.711u / G.711a / G.722.1 / MP2L2 / G.726 / PCM |
|
|
1 RJ45 10 / 100M self-adaptive port |
|
|
Protocols: IPv4 / IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, |
|
|
RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE |
|
|
Up to 20 simultaneous views |
|
|
Up to 32 users, 3 levels: administrator, operator, user |
|
|
Compatibility API, ONVIF®, API, ISAPI, and third party management gateway |
|
|
Compatible with IE9 +, Chrome31-44, Firefox30-51, Safari5.02 + (Mac) browsers |
|
|
2 alarm inputs / 2 outputs |
|
|
1 audio input / 1 output |
|
|
Reset button |
|
|
MicroSD / SDHC / SDXC card slot (up to 128GB), with support for manual or alarm recording |
|
|
BNC output 1.0V [pp] / 75Ω (PAL / NTSC) |
|
|
RS485 port |
|
| ELECTRICAL ENVIRONMENTAL | |
|
Power supply: 12V DC, PoE (802.3af, class 4) |
|
|
Consumption: max. 12W |
|
|
Operating temperature of -40 ° C ~ + 60 ° C |
|
|
Relative humidity: ≤90% (non-condensing) |
|
|
Degree of protection IP66 |
|
|
6KV lightning-proof |
|
| PHYSICAL CHARACTERISTICS | |
|
Metal case |
|
|
Dimensions: 113.5 (W) x 114.7 (H) x 352.4mm |
|
|
Weight: 1,5 kg |
|
|
Includes wall mount and tube base |
|
| Note: Actual distance values shown are nominal values and should be used as an estimate. Check with your dealer for the recommended sensing distances with our Vaelsys perimeter system. | |
