HYU-261 Hyundai Outdoor PTZ IP Bullet Camera. 1 / 2.8 "CMOS sensor, 4 MP resolution and 10X optical zoom. ICR filter, IR illuminator up to 80M, OSD, AWB, AGC, BLC, WDR real 120 dB, 2D / 3D-NR, ONVIF, POE. IP66 protection
FIND INSTALLER
discover the available quantity

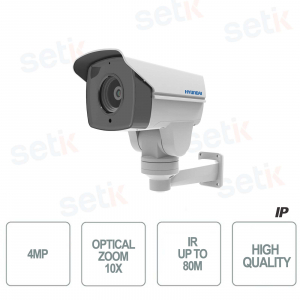

HYUNDAI 4 MEGAPIXEL 4.7 ~ 47MM OUTDOOR PTZ IP BULLET CAMERA
HYU-261 Hyundai IP Bullet PTZ Outdoor Camera4Megapixel Resolution - 4.7 ~ 47mm Optical - 10X Optical Zoom - CMOS Sensor
80M IR Illuminator - OSD, AWB, AGC, BLC, WDR real 120 dB, 2D / 3D-NR
Hyundai 3 Year Extended Warranty!
Product details
|
HYUNDAI CATALOG: Are you looking for a HYUNDAI product but couldn't find it on our site? Don't worry, we can supply you with ALL Hyundai products: consult the CATALOG or contact us by email. |
 |
This camera features a resolution of 4 MP! 1 / 2.8 " 4Megapixel CMOS sensor |
 |
10x Optical Zoom (4.7 ~ 47mm) |
|
|
IR illuminator maximum range 80 meters! |
|
|
The camera has an OSD menu , through which it is possible to manage and adjust some functions such as: AWB, AGC, ATW, 2D-DNR, etc. |
 |
Day / Night: allows you to adapt the lens to night / day vision, and the relative automatic management of the IR illuminator, when present.  |
 |
The IR CUT FILTER is a mechanical filter that allows a correct display of images in daylight viewing conditions, filtering the typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies. |
 |
BLC (Back Light Compensation): it is one of the 3 possible steps in the management of images with contrast, typical situations are: entrances or exits from parking lots, license plates, special lights, entrances with shots from inside to outside, etc. Light compensation is one of the most complex operations possible, the BLC function allows a discreet adaptation to these situations  |
 |
AGC is an integrated signal amplifier that allows vision even in critical conditions. It is automatic and does not require specific settings. |
 |
ATW (Auto Tracing White Balance) refers to a modern technology that automatically and continuously adjusts the color balance of the camera according to the color temperature . ATW is a more advanced feature than AWB (Auto White Balance), and is very important as without it, images could be completely unusable. Possibility to adjust the color balance also manually (MWB) |
 |
IP66: Guarantees protection from dust and water jets (rain) |
 |
A 12VDC power supply is required for the operation of this camera (not included)  |
 |
This product is covered by a 3 Year Warranty! |
Data sheet
| Model | HYU-261 |
| Room | |
| Image sensor | 1 / 2.8 "4 megapixel CMOS |
| Compression formats | H.264 / H.265 |
| Digital resolution | 4MP (2560x1440), QXGA (2048x1536), 1080P (1920x1080) |
| Pictures per second | 25 ips (50Hz) @ 4MP, QXGA, 1080P |
| Filter | removable mechanical |
| IR illumination | 4 leds arrays, up to 80 meters |
| Minimum illumination | 0.05 lux F1.6 (color, AGC On) / 0.01 lux F1.6 (B / W, AGC On) |
| Optical Zoom | 10X (4.7 ~ 47mm) |
| Menu | OSD |
| White balance sheet | automatic |
| Gain control | automatic / manual |
| BLC | Yes |
| WDR real | 120dB |
| Noise reduction | 2D / 3D |
| Positioner | 250 ° (H), -10 ° ~ 55 ° (V) |
| Manual speed | 0.5 ° ~ 15 ° / sec. horizontal / 0.5 ° ~ 10 ° / sec. vertical |
| Network protocols | TCP / IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, UPnP, FTP |
| Users | up to 4 |
| Compatibility | ONVIF® |
| Supply | 12v DC |
| PoE | Yes |
| Operating temperature | -35 ° C ~ + 60 ° C |
| Degree of protection | IP66 |
| Dimensions | 225 x 165 x 94 mm |
| Weight | 920g |
