HYU-486N Next Gen, Equivalent SF-D836-5P - Vandalproof camera with IK10 protection Hyundai, PRO series, Smart IR 20 meters for outdoor,
5MP CMOS sensor. 4 in 1 output (HDCVI / HDTVI / AHD / 960H). 2.8mm Fixed Optics. ICR filter, OSD, ATW, AGC, BLC, HLC, digital WDR, 2D-DNR, image adjustments, Mirror mode, IP67 level protection.
12V DC adapter (not included).
FIND INSTALLER
PRODUCT NOT AVAILABLE, DISCOUNT NOW 3%
4 IN 1 DOME CAMERA HYUNDAI 5 MEGAPIXEL 2.8MM FIXED LENS - 4 in 1: HDCVI, HDTVI, AHD, ANALOG resolution 960H - IR 20 MT - IP67 - IK 10

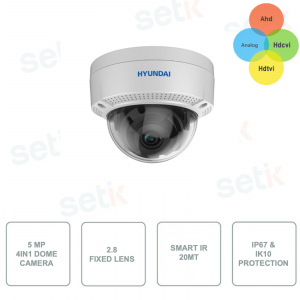

HYU-486N IK10 4 in 1 vandalproof dome outdoor camera by Hyundai
Product details
HYUNDAI CATALOG: Are you looking for a HYUNDAI product but couldn't find it on our website? Don't worry, we can supply you with ALL Hyundai products: consult the CATALOG or contact us by email. |
 | This camera is a FOUR HYBRID (4 Integrated Technologies) Switch Technologies: The camera can switch from HDCVI to HDTVI, AHD or Analog via dip switch on coaxial cable |
 | This camera features a resolution of 5Megapixel 5 MP! |
 | This camera is equipped with a 2.8mm fixed lens |
| Smart IR illuminator, with a maximum range of 20 meters. This camera is also equipped with SMART IR technology. |
| The camera has an OSD menu , through which it is possible to manage and adjust some functions such as: AWB, AGC, ATW, 2D-DNR, etc. |
 | Day/Night: allows you to adapt the lens to night/day vision, and the relative automatic management of the IR Illuminator, when present.  |
 | The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions, filtering the typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies. |
 | The AGC is an integrated signal amplifier that allows vision even in critical conditions. It is automatic and does not require specific settings. |
 | D-WDR (Digital Wide Dynamic Range) is the Software solution of the more powerful WDR integrated in the DSP, exactly as it happens for the digital zoom compared to the Optical Zoom, it is a software simulation of the WDR technology emulation, however extremely useful in circumstances of strong contrast.  |
 | Protection level IP67 ( Dust / Immersion ) |
 | IK 10 is the highest level of protection from direct damage. This allows the use of the camera even if there is a risk of vandalism
|
 | A 12VDC power supply is required for the operation of this camera (not included)  |
 | This product is covered by a 3 Year Warranty! |
Data sheet
| model | HYU-486N |
| Room | |
| Image Sensor | 5MP CMOS sensor |
| digital resolution | 5MP, 4MP, 1080P |
| Frames per second | 20 ips @ 5MP (CVI / TVI / AHD), 25 ips @ 4MP (CVI / TVI / AHD), 25 ips @ 1080P (TVI) |
| Video Output | 4-in-1 (switchable) |
| Min Illumination | 0.01 lux F1.2 color / 0 lux IR On |
| IR Illumination | Smart IR up to 20 meters |
| lens | 2.8mm fixed |
| Viewing Angle | 85° (H), 63° (V), 110° (D) |
| Day/Night | ICR, with removable mechanical filter |
| OSD Menus | Via coax |
| imaging modes | BLC, HLC, Global, Digital WDR, 2D-DNR, Mirror |
| Power Supply | 12VDC |
| AGC extension | Automatic/Manual |
| Brightness Adjustment | supported |
| Sharpness Adjustment | supported |
| White Balance | Automatic/Manual |
| Power Supply | 12V DC (± 25%) |
| power consumption | 4.3W (max.) |
| Working Temperature | -40°C ~ +60°C |
| Relative humidity | <90% (non condensing) |
| Protection Level | IP67 / IK10 (Vandal Protection) |
| Homes | Metal Housing |
| Dimensions | Ø110.8 x 84.7 (Al) mm |
| Weight | 362g |
