HYU-454N Hyundai PRO Series 4 in 1 Bullet Video Surveillance Camera Bullet with Smart IR Illuminator 6 SMD Array Leds, 20-25M - For Outdoor Use - Sony® Exmor 1 / 2.9 "CMOS Sensor, 2.1 MP 1080P Resolution Progressive Scan, 4x Optical Zoom 2.8mm-12mm. 4 Technologies in 1 HDTVI / HDCVI / AHD / 960H , Day / Night (ICR), BLC, HLC, Digital WDR, 2D / 3D-NR, Defog, Sens-Up, Mirror, Flip, Privacy Mask, Anti-fog, IP66 protection, 6kv lightning-proof, PTZ control via UTC, 250 ° positioner.
Power supply: 12V DC (not included).
FIND INSTALLER
discover the available quantity
CHRISTMAS WEEK 2024 ×
FREE SHIPPING
ON THE ENTIRE CATALOGUE!
1. Reach at least €249
2. Select FEDEX
3. Confirm code NATALE-FREE-E
4. Complete your order.
Shipping will be free of charge!
Until 10 a.m. on 27/12/2024
Code NOT combinable with other actives
BULLET CAMERA 4 IN1 HYUNDAI 2 MEGAPIXEL OPTICAL ZOOM 4x 2.8-12MM - 4IN1 HDTVI / HDCVI / AHD / 960H - SMART IR 20-25MT

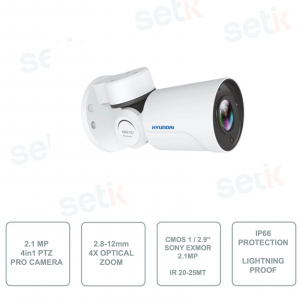

HYU-454N Hyundai 4-in-1 Bullet Outdoor Camera
Quad hybrid "HDTVI / HDCVI / AHD / ANALOG 960H" - Resolution 2.1 MP - 4x Optical Zoom 2.8mm-12mm
1 / 2.9 " Sony® Exmor CMOS Sensor - Smart IR Illuminator 6 SMD Array LEDS 20-25M - ICR Filter - OSD, AWB, AGC, digital WDR, 2D / 3D-DNR, demisting, mirror, video sensor and privacy mask
Hyundai 3 Year Extended Warranty! - IP66 protection (Rain / Dust) and 6kv lightning protection
Product details
HYUNDAI CATALOG: Are you looking for a HYUNDAI product but couldn't find it on our site? Don't worry, we can supply you with ALL Hyundai products: consult the CATALOG or contact us by email. |
 | 4 TECHNOLOGIES IN 1: This camera features 4 technologies in 1 : interchangeable HDTVI / HDCVI / AHD / 960H (ANALOG).
Switch Technologies: Technologies switchable via DIP Switch | ||
 | This camera has a resolution of 2.1 Megapixel 2.1 MP 1080P FULL-HD 1 / 2.9 " Sony® Exmor CMOS sensor | ||
| |||
|
| SMART IR 6 SMD ARRAY LEDs illuminator, maximum range of about 20-25 meters | ||
| The camera has an OSD menu , through which it is possible to manage and adjust some functions such as: AWB, AGC, ATW, 2D-DNR, etc. | ||
 | Day / Night: allows you to adapt the lens to night / day vision, and the relative automatic management of the IR illuminator, when present.  | ||
 | The IR CUT FILTER is a mechanical filter that allows a correct display of images in daylight viewing conditions, filtering the typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies. | ||
 | BLC (Back Light Compensation): it is one of the 3 possible steps in the management of images with contrast, typical situations are: entrances or exits from parking lots, license plates, special lights, entrances with shots from the inside out, etc. Light compensation is one of the most complex operations possible, the BLC function allows a discreet adaptation to these situations  | ||
 | AGC is an integrated signal amplifier that allows viewing even in critical conditions. It is automatic and does not require specific settings. | ||
| |||
 | IP66: Guarantees protection from dust and water jets (rain) | ||
 | Arm with movement on 3 axes
| ||
 | A 12VDC power supply is required for the operation of this camera (not included)  | ||
 | This product is covered by a 3 Year Warranty! | ||
Data sheet
| Model | HYU-454N |
| Room | |
| Image Sensor | CMOS 1 / 2.9 "Sony® Exmor of 2.1 megapixels |
| Digital Resolution | 1080P (1920x1080) |
| FPS | 25 fps @ 1080P (CVI / TVI / AHD) |
| Output | 4-in-1 output switchable via DIP switch |
| Day / Night | Supported, with removable mechanical filter (ICR) |
| Smart IR | Smart IR: 6 SMD array leds, 20 ~ 25 meters |
| Minimum Illumination | 0.01 lux F1.2 (color) / 0 lux IR On |
| Lens | 4X optical zoom: 2.8 ~ 12mm with autofocus |
| OSD | Multi-language OSD via coaxial (UTC) |
| Imaging Modes | BLC, HLC, Digital WDR, 2D / 3D-NR, Defog, Sens-Up, Mirror, Flip |
| White balance | Supported, with 5 modes |
| Gain Control | Automatic AGC |
| Video Sensor | Yes |
| Privacy Mask | Yes |
| Horizontal Positioner | 0 ° ~ 250 ° |
| Vertical Positioner | -10 ° ~ 55 ° |
| Manual Speed | 0.5 ° ~ 15 ° / sec. (H), 0.5 ° ~ 15 ° / sec. (V) |
| Preset Point | 1 |
| PTZ | COntrolled via UTC |
| Power Supply | 12V DC (± 10%) |
| Power Consumption | <10W |
| Working Temperature | -20 ° C ~ + 60 ° C |
| Humidity | 10% ~ 90% (non-condensing) |
| Protection Level | IP66, Lightning Proof 6kv |
| Weight | 380g |
| Dimensions | 168 x 70 x 87 mm |
