Hikvison 2 MP 4-Inch Speed Dome Cameras

Hikvison 2 MP 4-Inch Speed Dome Cameras
-35%

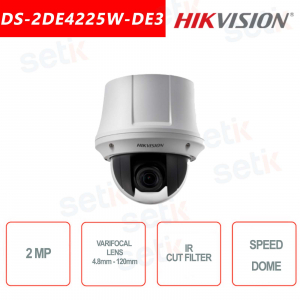

Hikvision DS-2DE4225W-DE3 IP PoE ONVIF Dome Camera 2MP , 4.8-120mm Varifocal Lens, 1 / 2.8 "CMOS sensor, H.265 + . Day & Night (ICR), DARKFIGHTER TECHNOLOGY , Micro SD Slot ( UP TO 256GB - NOT INCLUDED) , Triple Stream, Motion Detection , ROI, WDR 120dB, BLC, 3D DNR, AGC, Connection to Hik-connect.



Reference: DS-2DE4225W-DE3

Brand: Hikvision

FIND INSTALLER

€858.03

€1,320.04 -35%
taxes included
Tax included
 Available in 5 days



DS-2DE4225W-DE3 | HIKVISION IP CAMERA ONVIF® POE 2MP 4.8MM-120MM H.265 IR Cut Filter

Made by Hikvision Hikvision IP PoE outdoor camera SPEED DOME
Resolution: 2.0 MP 2MP - DarkFighter Technology - Varifocal Optics 4.8 mm - 120 mm - 1 / 2.8 "CMOS sensor - H.265 +
Day / Night (ICR) - WDR 120dB - AGC -BLC - 3D DNR - Motion Detection - Triple Stream - AUDIO - ALARM
Power supply NOT included - 256GB MicroSD slot (not included) - 24 month warranty
DS-2DE4225W-DE3

Hikvision IP cameras are characterized by highly professional products with different types of housing, resolution up to 4k, video compression H.265 + and IR up to 80m with EXIR technology. Over the years, Hikvision has launched various series of IP cameras, including the EASY IP SERIES , born from version 1.0, up to version 4.0. Below are the main features of the most significant EASY IP SERIES.


DarkFighter Technology:
Darkfighter technology allows color shooting even with very low brightness, thus avoiding switching to black and white vision. A benefit of no small importance for the Local Police, often called upon to “decipher” images that are not very clear and in black and white.

ONVIF®:
Onvif, the absolute standard for IP cameras. Being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera as an end in itself that can never be used together with recording systems.
POE (Power Over Ethernet):
The advantage of a PoE camera is obvious, it allows it to be powered with the same cable with which it communicates without bringing additional power cables and without having to install a separate power supply system, a PoE camera guarantees constant voltages and simple installation.
Resolution:
This camera features 2.0MP 4MP 2Megapixel resolution in real time! ( 1920 × 1080 )
1 / 2.8 ”progressive scan CMOS image sensor
Optics:
This camera features a 4.8 - 120 mm Varifocal lens
Compression H.265 +


What is H.265 +?

A self-developed intelligent algorithm by Hikvision that can greatly reduce the video bitrate based on a standard H.265 codec. Hikvision's H.265 + reduces transmission bandwidth and required storage capacity without impacting video quality, thanks to three key technologies: prediction encoding, noise suppression and flexible bit rate control. Optimized for multiple surveillance scenarios, it allows for greater use of ultra HD surveillance cameras, such as 8MP and 12MP cameras.

HIK-CONNECT

Hik Connect allows you to control the device remotely

ROI (Region Of Interest):
The images deriving from IP cameras are “compressed”, consequently the quality is set during the recording phase. Especially on cameras with a very high resolution, it is often necessary to reduce the quality in order to guarantee a reduced bandwidth occupation and record a greater number of days or cameras.
The ROI allows you to define areas where you can set a higher quality (for example a door, the area where the plate usually passes, an exit, etc.). In that area I can set a higher quality thus guaranteeing a greater definition of the image.
Ultra Smart Funzione ROI
Day / Night:
Allows you to adapt the lens to night / day vision, and the relative automatic management of the IR illuminator, when present.

IR CUT FILTER (ICR):
Mechanical filter that allows a correct display of images in daytime viewing conditions. It filters the typical infrared frequencies thus improving the image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.
Immagine esempio IR CUT FILTER

MICRO SD SLOT:

256GB Micro SD slot ( NOT INCLUDED )

BLC (Back Light Compensation):
is one of the 3 possible steps in the management of images with contrast, typical situations are (entrances or exits from car parks, plates, special lights, entrances with shots from inside to outside, etc.) light compensation is one of the most complex possible, the BLC function allows a fair adaptation to these situations


Click to enlarge

AGC (Automatic Gain Control):
integrated signal amplifier that allows viewing even in critical conditions. It is automatic and does not require specific settings.

WDR 120DB:
Software solution of the more powerful WDR integrated in the DSP, exactly as it happens for the digital zoom compared to the Optical Zoom, it is a software simulation of emulation of the WDR technology, however extremely useful in circumstances of strong contrast.

3D- DNR:
More advanced version of the NOISE REDUCTION management. It allows still images in both low light and movement. Currently the most powerful solution for obtaining maximum results in low light conditions.

Diet:
A 12V DC power supply is required for the operation of this camera (not included)

Data sheet

DS-2DE4225W-DE3
Camera Module
Image Sensor 1 / 2.8 "progressive scan CMOS
Min Illumination

Color: 0.005 Lux @ (F1.6, AGC ON)

B / W: 0.001Lux @ (F1.6, AGC ON)

White Balance Auto / Manual / ATW (Auto-tracking White Balance) / Indoor / Outdoor / Fluorescent Lamp / Sodium Lamp
Gain

Auto / Manual

Shutter Time

50Hz: 1/1 s to 1 / 30,000 s

60Hz: 1/1 s to 1 / 30,000 s

Day & Night IR Cut Filter
Digital Zoom 16 ×
Privacy Mask 24 programmable privacy masks
Focus Mode Auto / Semi-automatic / Manual
WDR 120 dB WDR
Lens
Focal Length 4.8 mm to 120 mm, 25 × optical zoom
Zoom Speed Approx. 3.6 s (optical lens, wide-tele)
Field of View

Horizontal field of view: 57.6 ° to 2.5 ° (Wide-Tele)

Vertical field of view: 34.4 ° to 1.4 ° (Wide-Tele)

Diagonal field of view: 64.5 ° to 2.9 ° (Wide-Tele)

Working Distance 10 mm to 1500 mm (wide-tele)
Aperture Range F1.6 to F3.5
PTZ
Movement Range (Pan)

360 ° endless

Pan Speed

Configurable, from 0.1 ° / s to 160 ° / s

Preset speed: 160 ° / s

Movement Range (Tilt) From 0 ° to 90 ° (auto-flip)
Tilt Speed Configurable, from 0.1 ° / s to 120 ° / s Preset Speed: 120 ° / s
Proportional Zoom Yes
Presets 300
Patrol Scan 8 patrols, up to 32 presets for each patrol
Pattern Scan 4 pattern scans, record time over 10 minutes for each scan
Power-off Memory Yes
Park Action Preset / Pattern Scan / Patrol Scan / Auto Scan / Tilt Scan / Random Scan / Frame Scan / Panorama Scan
3D Positioning Yes
PTZ Position Display Yes
Preset Freezing Yes
Scheduled Task Preset / Pattern Scan / Patrol Scan / Auto Scan / Tilt Scan / Random Scan / Frame Scan / Panorama Scan / Dome Reboot / Dome Adjust / Aux Output
Compression Standard
Video Compression

Main Stream: H.265 + / H.265 / H.264 + / H.264

Sub-stream: H.265 / H.264 / MJPEG

Third Stream: H.265 / H.264 / MJPEG

H.264 Type Baseline profile / main profile / high profile
H.264 + Yes
H.265 Type Main Profile
H.265 + Yes
Video Bit Rate 32 Kbps to 16384 Kbps
Audio Compression G.711alaw / G.711ulaw / G.722.1 / G.726 / MP2L2 / PCM
Audio Bit Rate

G.711alaw / G.711ulaw: 64 Kbps

G.722.1 / G.726: 16 Kbps

MP212 / PCM: 32 Kbps / 64 Kbps / 128 Kbps

SVC Yes
Smart Features
Basic Event G.711alaw / G.711ulaw: 64 Kbps G.722.1 / G.726: 16 Kbps MP212 / PCM: 32 Kbps / 64 Kbps / 128 Kbps
Smart Event Intrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection, Object Removal Detection, Unattended Baggage Detection, Audio Exception Detection
Smart Record ANR (Automatic Network Replenishment), Dual-VCA
ROI Main stream, sub-stream, and third stream respectively support four fixed areas.
Max. Resolution 1920 x 1080
Main Stream

50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) 50fps (1280 × 960, 1280 × 720)

60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720) 60fps (1280 × 960, 1280 × 720)

Sub-stream

50Hz: 25fps (704 × 576, 640 × 480, 352 × 288)

60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)

Third Stream

50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)

60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)

Image Enhancement HLC / BLC / 3D DNR / Defog / EIS / Regional Exposure / Regional Focus
Network
Network Storage Built-in memory card slot, support Micro SD / SDHC / SDXC, up to 256GB; NAS (NFS, SMB / CIFS), ANR
Alarm Linkage Alarm actions, such as Notify Surveillance Center, Upload to FTP, Send Email, Trigger Recording, Recording Linkage, and Alarm Input, etc.
Protocols IPv4 / IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP / IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
API ONVIF® (Profile S, Profile G, Profile T), ISAPI, SDK
Simultaneous Live View Up to 20 channels
User / Host Up to 32 users. 3 user levels, administrator, operator and user
Security Measures User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering
Client iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect
Web Browser IE 8 to 11, Chrome 31.0+, Firefox 30.0+, Edge 16.16299+
Interface
Alarm Interface 1-ch alarm input and 1-ch alarm output
Audio Interface 1-ch audio input and 1-ch audio output
Network Interface 1 RJ45 10M / 100M Ethernet, PoE (802.3 at, class4)
General
Language (Web Browser Access) 32 languages. English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
Power 12 VDC, 2.0 A and PoE (802.3at), 42.5 to 57 VDC, 0.6 A, Class4 Max. 18 W
Working Temperature -10 ° C to 50 ° C (-14 ° F to 122 ° F)
Working Humidity ≤ 90%
Protection Level 4000V Lightning Protection, Surge Protection and Voltage Transient Protection
Material ADC 12, PC + ABS, PC / PMMA
Dimension Ceiling mounting model: Φ 165 mm × 179.5 mm (Φ 6.50 "× 7.07") In-ceiling mounting model: Φ 165 mm × 168 mm (Φ 6.50 "× 6.61")
Weight Approx. 2 kg (4.41 lb)

Further details

DS-2DE4225W-DE3

Download

Download the English brochure
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
