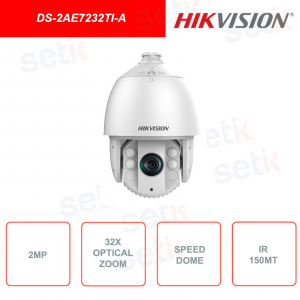

Hikvision DS-2AE7232TI-A Speed Dome Camera Speed Dome Camera 2MP , 7-inch IR Turbo, for capturing high quality images in low light environments. Full HD 1920x1080p resolution made possible thanks to the integrated CMOS chip, which enables WDR Wide Dynamic Range. 1 / 2.8 "CMOS sensor. 32x Optical Zoom and 16x Digital Zoom, IR Cut Filter for Day & Night use. 3D Intelligent Positioning, 3DNR, WDR 120dB, 16x Digital Zoom, BLC, HLC, EIS, 32x Optical Zoom. IP66. TV / AHD / CVI / CVBS Video Switch.
Ideal for indoor and outdoor use. IR distance up to 150m. True 120db WDR Wide Dynamic Range.
€1,251.35
€1,925.16 -35%DS-2AE7232TI-A | HIKVISION 2MP 4.8MM-153MM CAMERA - 4IN1 - SPEED DOME - 3D INTELLIGENT POSITIONING
![Made by Setik width = Made by Hikvision](https://cdn.setik.biz/storage/images/Articoli/5580_228_55_013.jpg)
SPEED DOME outdoor Hikvision camera
Resolution: 2.0 MP 2MP 2Megapixel - Varifocal lens 4.8 mm - 153 mm - 1 / 2.8 "CMOS sensor -
Day / Night (ICR) - WDR 120dB - AGC - BLC - 3D DNR - 32x Optical Zoom & 16x Digital Zoom - 3D Intelligent Positioning
![DS-2AE5232T-A](https://cdn.setik.biz/storage/images/Articoli/5580_228_55_003.jpg)
|
This camera is a QUADRIBRID (4 Integrated Technologies) These cameras are at the same time, Analog , Ahd , HDCVI and HDVI . ![]() ![]() ![]() |
Resolution: This camera features 2.0MP 2MP 2Megapixel resolution in real time! 1 / 2.8 ”HD image sensor |
Optics: This camera features a 4 .8 - 153mm Varifocal lens |
Day / Night: Allows you to adapt the lens to night / day vision, and the relative automatic management of the IR illuminator, when present. |
IR CUT FILTER (ICR): Mechanical filter that allows correct viewing of images in daytime viewing conditions. It filters the typical infrared frequencies thus improving the image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies. ![]() |
BLC (Back Light Compensation): is one of the 3 possible steps in the management of images with contrast, typical situations are (entrances or exits from car parks, plates, special lights, entrances with shots from inside to outside, etc.) light compensation is one of the most complex possible, the BLC function allows a fair adaptation to these situations |
AGC (Automatic Gain Control): integrated signal amplifier that allows viewing even in critical conditions. It is automatic and does not require specific settings. |
ULTRA WDR up to 120dB WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light / shadow contrast. Fundamental in the case of shots from the inside out, license plates, shaded spots or all situations where there is no homogeneity of light. ![]() |
3D- DNR: |
Diet: A 12V DC power supply is required for the operation of this camera (not included) ![]() |
Data sheet
DS-2AE7232TI-A (D) | |
Camera Module | |
Image Sensor | 1 / 2.8 "progressive scan CMOS |
Max. Image Resolution | 1920 × 1080 |
Frame Rate | 50Hz: 25fps @ (1920 × 1080) 60Hz: 30fps @ (1920 × 1080) |
Min. Illumination | Color: 0.005 Lux @ (F1.2, AGC ON) |
White Balance | AUTO / MANUAL / HAUTO / ATW / INDOOR / OUTDOOR |
AGC | AUTO / MANUAL |
DNR | 3D DNR |
WDR | ≥120 dB |
Shutter Time | PAL: 1/1 s to 1 / 10,000 s NTSC: 1/1 s to 1 / 10,000 s |
Day & Night | IR cut filter |
Digital Zoom | 16 × |
Privacy Mask | 8 programmable privacy masks |
BLC (Backlight Compensation) | Yes |
HLC (highlight Compensation) | Yes |
EIS (Electric Image Stabilization) | Yes |
Regional Focus | Yes |
Lens | |
Focus Mode | Auto / Semiauto / Manual |
Focal Length | 4.8 mm to 153 mm, 32 × Optical |
Aperture Range | F 1.2 to F4.4 |
Horizontal Field of View | 54.2 ° to 1.97 ° (wide-tele) |
Min. Working Distance | 100 mm to 1500 mm (wide to tele) |
Zoom Speed | Approx. 5.6 s (optical, wide to tele) |
Pan and Tilt | |
Pan Range | 360 ° endless |
Pan Speed | Pan manual speed: 0.1 ° to 160 ° / s Pan preset speed: 160 ° / s |
Tilt Range | -15 ° to 90 ° (auto flip) |
Tilt Speed | Tilt manual speed: 0.1 ° to 120 ° / s Tilt preset speed: 120 ° / s |
Proportional Zoom | Rotation speed can be adjusted automatically according to zoom multiples |
Presets | 256 |
Patrol | 10 patrols, up to 32 presets per patrol |
Pattern | 5 patterns, with the total recording time no less than 10 minutes |
Power-off Memory | Yes |
Park Action | Preset / Patrol / Pattern / Pan Scan / Tilt Scan / Panorama Scan / Day Mode / Night Mode / None |
PTZ Position Display | ON / OFF |
Preset Freezing | Yes |
Scheduled Task | Preset / Patrol / Pattern / Pan Scan / Tilt Scan / Panorama Scan / Day Mode / Night Mode / Zero Calibration / Patrol-d / Frame Scan / Random ScanNone |
Infrared | |
IR Distance | Up to 150m |
IR Intensity | Automatically adjusted depending on the zoom ratio |
Input / Output | |
Video Output | Switchable TVI / AHD / CVI / CVBS video output, (NTSC or PAL composite, BNC) |
RS-485 Interface | Half-duplex mode Self-adaptive HIKVISION, Pelco-P, Pelco-D protocol |
UTC function | UTC protocol (or HIKVISION-C protocol in previous DVR) |
General | |
Menu Language | English |
Power | 24 VAC Max. 40 W (IR: 14W) |
Working Temperature | -30 ° C to 65 ° C (-22 ° F to 149 ° F) |
Working Humidity | 90% or less |
Protection Level | IP66 standard (outdoor dome) TVS 4,000 V lightning protection, surge protection and voltage transient protection IK10 (exludicg glass window) |
Mounting | Various mounting modes optional |
Dimension | Φ220 mm × 326 mm (? 8.66 "× 12.83") |
Weight (approx.) | 4.5 kg |
Further details
![DS-2AE5232T-A](https://cdn.setik.biz/storage/images/Articoli/5580_228_55_018.jpg)
