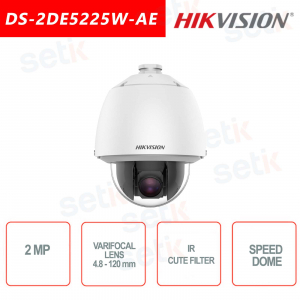

Hikvision DS-2DE5225W-AE IP PoE ONVIF outdoor camera Speed Dome 2.0MP PTZ Camera (Pan / Tilt / Zoom) , 25X Optical Zoom (4.8 - 120 mm), 1 / 2.8 "" CMOS sensor, H.265 + . Day & Night (ICR), Micro SD Slot ( UP TO 256GB - NOT INCLUDED ) Triple Stream, ROI, Connection to Hik-connect, IP66, IK10 .



Reference: DS-2DE5225W-AE

Brand: Hikvision

EAN: 6954273651589

FIND INSTALLER

€953.19

€1,466.44 -35%
taxes included
Tax included
 Available in 5 days

PRODUCT NOT AVAILABLE, DISCOUNT NOW 5%




DS-2DE5225W-AE | HIKVISION IP POE ONVIF® 2.0 MP CAMERA 25X OPTICAL ZOOM OUTDOOR ICR METERS DOME

Made by Hikvision Hikvision IP PoE ONVIF® Outdoor Dome Camera
Resolution: 2.0 MP 4Megapixel - 25X Optical Zoom ( 4.8 mm ~ 120 mm) - 1 / 2.8 "CMOS sensor - H.265 +
Illuminator - ICR - Day / Night (ICR) - AGC -BLC - 3D DNR - Motion Detection - Triplel Stream - Audio - Alarm
Power supply NOT included - MicroSD slot (not included) - 24 months warranty
DS-2DE5225W-AE BANNER

Hikvision IP cameras are characterized by highly professional products with different types of housing, resolution up to 4k, video compression H.265 + and IR up to 80m with EXIR technology. Over the years, Hikvision has launched various series of IP cameras, including the EASY IP SERIES , born from version 1.0, up to version 4.0. The following are the main features of the most significant EASY IP SERIES.

ONVIF®:
Onvif, the absolute standard for IP cameras. Being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera for its own sake that can never be used together with recording systems.
POE (Power Over Ethernet):
The advantage of a PoE camera is obvious, it allows it to be powered with the same cable with which it communicates without bringing additional power cables and without having to install a separate power supply system, a PoE camera guarantees constant voltages and simple installation
Resolution:
This camera features 2Megapixel resolution in real time! ( 1920 × 1080 ) @ 60 fps
1 / 2.8 "2Megapixel progressive scan CMOS image sensor
Optics:
This camera features 4.8mm ~ 120mm Varifocal lens (25X optical zoom)
Compression H.265 +


What is H.265 +?

A self-developed intelligent algorithm by Hikvision that can greatly reduce the video bitrate based on a standard H.265 codec. Hikvision's H.265 + reduces transmission bandwidth and required storage capacity without impacting video quality, thanks to three key technologies: prediction encoding, noise suppression and flexible bit rate control. Optimized for multiple surveillance scenarios, it allows for greater use of ultra HD surveillance cameras, such as 8MP and 12MP cameras.

HIK-CONNECT

Hik Connect allows you to control the device remotely

ROI (Region Of Interest):
The images deriving from IP cameras are “compressed”, consequently the quality is set during the recording phase. Especially on cameras with a very high resolution, it is often necessary to reduce the quality in order to guarantee a reduced bandwidth occupation and record a greater number of days or cameras.
The ROI allows you to define areas where you can set a higher quality (for example a door, the area where the plate usually passes, an exit, etc.). In that area I can set a higher quality thus guaranteeing me a greater definition of the image.
Ultra Smart Funzione ROI
Day / Night:
Allows you to adapt the lens to night / day vision, and the relative automatic management of the IR illuminator, when present.

IR CUT FILTER (ICR):
Mechanical filter that allows correct viewing of images in daytime viewing conditions. It filters the typical infrared frequencies thus improving the image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.
Immagine esempio IR CUT FILTER

MICRO SD SLOT:

256GB Micro SD slot ( NOT INCLUDED )

BLC (Back Light Compensation):
is one of the 3 possible steps in the management of images with contrast, typical situations are (entrances or exits from car parks, plates, special lights, entrances with shots from inside to outside, etc.) light compensation is one of the most complex possible, the BLC function allows a fair adaptation to these situations


Click to enlarge

AGC (Automatic Gain Control):
integrated signal amplifier that allows viewing even in critical conditions. It is automatic and does not require specific settings.

3D- DNR:
More advanced version of the NOISE REDUCTION management. It allows still images in both low light and movement. Currently the most powerful solution for obtaining maximum results in low light conditions.

Supply:
A 12V DC power supply is required for the operation of this camera (not included)
IP66 protection:
Protection from dust and temporary immersions. Suitable for outdoor environments.
IK10:
IK 10 is the highest level of protection from direct damage. This allows the use of the camera even if there is a risk of vandalism

4000V TVS Protection:

TVS4000V protection protects against lightning, protects against voltage overloads

Data sheet

DS-2DE5225W-AE
Room
Image Sensor 1 / 2.8 "progressive scan CMOS
Min Illumination

Color: 0.005 Lux @ (F1.6, AGC ON)

B / W: 0.001 Lux @ (F1.6, AGC ON)

White Balance Auto / Manual / ATW (Auto-tracking White Balance) / Indoor / Outdoor / Fluorescent Lamp / Sodium Lamp
Gain Auto / Manual
Shutter Time

50Hz: 1 to 1 / 30,000 s

60Hz: 1 to 1 / 30,000 s

Day & Night IR Cut Filter
Digital Zoom 16 ×
Privacy Mask 24 programmable privacy masks, mask color configurable
Focus Mode Auto / Semi-automatic / Manual
WDR 120 dB WDR
Lens
Focal Length 4.8 to 120 mm, 25 × optical zoom
Zoom Speed Approx. 3.6 s (optical lens, wide-tele)
Field of View

Horizontal field of view: 57.6 ° to 2.5 ° (Wide-Tele)

Vertical field of view: 34.4 ° to 1.4 ° (Wide-Tele)

Diagonal field of view: 64.5 ° to 2.9 ° (Wide-Tele)

Working Distance 10 to 1500 mm (wide-tele)
Aperture Range F1.6 to F3.5
PTZ
Movement Range (Pan)

360 ° endless

Pan Speed

Configurable, from 0.1 ° / s to 250 ° / s

Preset speed: 300 ° / s

Movement Range (Tilt)

From -5 ° to 90 ° (auto-flip)

Tilt Speed

Configurable, from 0.1 ° / s to 150 ° / s

Preset speed: 200 ° / s

Proportional Zoom

Yes

Presets

300

Patrol Scan

8 patrols, up to 32 presets for each patrol

Pattern Scan

4 pattern scans, record time over 10 minutes for each scan

Power-off Memory:

Yes

Park Action

Preset / Pattern Scan / Patrol Scan / Auto Scan / Tilt Scan / Random Scan / Frame Scan / Panorama Scan

3D Positioning

Yes

PTZ Position Display

Yes

Preset Freezing Yes
Scheduled Task Preset / Pattern Scan / Patrol Scan / Auto Scan / Tilt Scan / Random Scan / Frame Scan / Panorama Scan / Dome Reboot / Dome Adjust / Aux Output
Compression Standard
Video Compression

Main Stream: H.265 + / H.265 / H.264 + / H.264

Sub-Stream: H.265 / H.264 / MJPEG

Third Stream: H.265 / H.264 / MJPEG

H.264 Type Baseline profile / main profile / high profile
H.264 + Yes
H.265 Type Baseline profile / main profile / high profile
H.265 + Yes
Video Bitrate 32 Kbps to 16384 Kbps
Audio Compression G.711alaw / G.711ulaw / G.722.1 / G.726 / MP2L2 / PCM
Audio Bitrate

G.711alaw / G.711ulaw: 64 Kbps

G.722.1 / G.726: 16 Kbps MP212 / PCM: 32 Kbps / 64 Kbps / 128 Kbps

SVC Yes
Smart Features
Basic Event Detection

Motion Detection, Alarm Input, Alarm Output, Video Tampering Detection, Exception

Smart Event Face Detection, Intrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection, Object Removal Detection, Unattended Baggage Detection
Smart Record ANR (Automatic Network Replenishment), Dual-VCA
ROI Main stream, sub-stream, and third stream respectively support four fixed areas
Auto-Tracking Yes
Max. Resolution 1920 × 1080
Main Stream

50Hz: 50fps (1920 × 1080, 1280 × 960, 1280 × 720)

60Hz: 60fps (1920 × 1080, 1280 × 960, 1280 × 720)

Sub-Stream

50Hz: 25fps (704 × 576, 640 × 480, 352 × 288)

60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)

Third Stream

50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)

60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)

Image Enhancement HLC, BLC, defog, 3D DNR, EIS, regional exposure, regional focus
Network
Network Storage Built-in memory card slot, support Micro SD / SDHC / SDXC, up to 256GB; NAS (NFS, SMB / CIFS), ANR
Alarm Linkage Alarm actions, such as Notify Surveillance Center, Upload to FTP, Send Email, Trigger Recording, Recording Linkage, and Alarm Input.
Protocols IPv4 / IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP / IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
API ONVIF® (Profile S, Profile G, Profile T), ISAPI, SDK
Simultaneous Live View Up to 20 channels
User / Host Up to 32 users 3 user levels: administrator, operator and user
Security Measures User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering
Client iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect
Web Browser IE 8 to 11, Chrome 31.0+, Firefox 30.0+, Edge 16.16299+
Interface
Alarm Interface

2-ch alarm input and 1-ch alarm output

Audio Interface 1-ch audio input and 1-ch audio output
Network Interface 1 RJ45 10M / 100M Ethernet, PoE (802.3 at, class4)
General
Language (Web Browser Access) 32 languages. English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
Power 24 VAC, 1.5 A, 50 / 60Hz and PoE (802.3at), 42.5 to 57 VDC, 0.6 A, Class4 Max. 22 W
Working Environment Temperature: -30 ° C to 65 ° C (-22 ° F to 149 ° F), humidity: ≤ 90%
Protection Level IP66 Standard, IK10, 4000V Lightning Protection, Surge Protection and Voltage Transient Protection
Material ADC 12, PC + ABS, PC / PMMA
Dimensions Φ 220 mm × 280 mm (Φ 8.66 "× 11.02")
Weight Approx. 3 kg (6.61 lb.)

Further details

DS-2DE5225W-AE

Download

Download the English brochure
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
