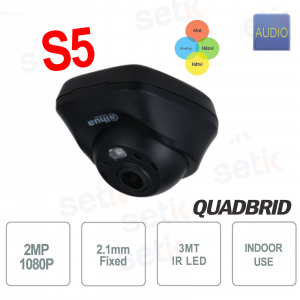

Dahua HAC-HDW3200L-S5 dome 4in1 camera (CVI / CVBS / AHD / TVI Switchable) , 1080P 2MP resolution, 2.1mm fixed lens and 1 / 2.7 "CMOS sensor. 1 / 2.7" CMOS sensor. Smart IR illuminator 1 3M LED, BNC Video Output, Day / Night , OSD menu, Built-in microphone Suitable for indoor environments Black color
https://www.setik.biz/en/cameras/5554-dahua-hac-hdw3200l-s5-dahua-4in1-2mp-indoor-camera-21mm-microphone.html
€44.55
€101.26 -56%
taxes included
PRODUCT NOT AVAILABLE, DISCOUNT NOW 3%
LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!
CHRISTMAS WEEK 2024 ×
FREE SHIPPING
ON THE ENTIRE CATALOGUE!
1. Reach at least €249
2. Select FEDEX
3. Confirm code NATALE-FREE-E
4. Complete your order.
Shipping will be free of charge!
Until 10 a.m. on 27/12/2024
Code NOT combinable with other actives
DAHUA 4IN1 FULL HD 1080P CAMERA - INDOOR
Eyeball camera - Dahua4in1 (CVI / CVBS / AHD / TVI) - 2Megapixel FULL HD - 2.1mm fixed lens
1 3M LED IR illuminator, Day / Night, Multi-language OSD menu, Built-in microphone
Suitable for indoor environments - Power supply NOT included - 24 month warranty
Product details
- Eyeball camera - Dahua
- 4in1 ( CVI / CVBS / AHD / TVI ) switchable
- Switchable technologies via OSD Menu or UTC Controller (not included)
- FULL HD 1080P 2MP resolution
- 2.1mm fixed lens
- 1 / 2.7 "CMOS image sensor
- FULL HD 1080P 2MP resolution
- 2.1mm fixed lens
- 1 / 2.7 "CMOS image sensor
- Multi Language OSD Menu
- Smart IR 1 LED 3MT illuminator
- Smart IR 1 LED 3MT illuminator
- Day / Night, BLC / HLC / DWDR / AGC
- Built-in microphone
- Video Output: 1 Channel BNC High Definition / CVBS video output (interchangeable)
- Material: Plastic
- Dimensions 71.6 mm × 60.9 mm × 45.9 mm (2.82 "× 2.4" × 1.81 ")
- Suitable for indoor environments (without IP66 protection)
- 12V DC power supply not included
- 24 months warranty
- 12V DC power supply not included
- 24 months warranty
Data sheet
| Model | HAC-HDW3200L-S5 |
| Room | |
| Image Sensor | 1 / 2.7 inch CMOS |
| Effective Pixels | 1920 (H) × 1080 (V), 2MP |
| Scanning System | Progressive |
| Electronic Shutter Speed |
PAL: 1/25 ~ 1 / 100000s NTSC: 1/30 ~ 1 / 100000s |
| Min. Illumination | 0.02Lux / F2.0, 30IRE, 0Lux IR on |
| S / N Ratio |
More than 65dB |
| IR Distance | Up to 3m (9feet) |
| IR On / Off Control | Auto / Manual |
| IR Leds | 1 |
| Pan / Tilt / Rotation Range | Pan: 40 ° Tilt: 55 ° Rotation: 360 ° |
| Lens | |
| Lens Type | Fixed-focal |
| Mount Type | M12 |
| Focal Length | 2.1mm |
| Max openings | F2.0 |
| Angle of view | H: 132 °; V: 69 °; D: 164 ° |
| Close Focus Distance |
0.5 m (1.64 ft) |
| Video | |
| Frame Rate | CVI: 1080p @ 25 / 30fps; 720p @ 25 / 30fps; 720p @ 50 / 60fps; AHD: 1080p @ 25 / 30fps; 720p @ 25 / 30fps; TVI: 1080p @ 25 / 30fps; 720p @ 25 / 30fps; 720p @ 50 / 60fps; CVBS: 960H |
| Resolution | 1080p (1920 × 1080); 720p (1280 × 720); 960H (960 × 576/960 × 480) |
| Day / Night | Electronic |
| BLC | BLC / HLC / DWDR |
| WDR | DWDR |
| White Balance | Car; manual |
| Gain Control | Car; manual |
| Noise Reduction | 2D NR |
| Smart IR | Yes |
| Mirror | Off / On |
| Privacy Masking | Off / On (8 area, rectangle) |
| Certifications | |
| Certifications |
CE / FCC, UL, EN50155 |
| Port | |
| Audio Interface |
Built-in Mic |
| Video Output |
Video output choices of CVI / TVI / AHD / CVBS by one BNC port |
| Power | |
| Power Supply |
12V ± 30% DC |
| Power Consumption |
Max 1.9W (12V DC, IR on) |
| Environment | |
| Operating Conditions |
–40 ° C to + 60 ° C (–40 ° F to 140 ° F); <95% (noncondensation) |
| Storage Conditions |
–40 ° C to + 60 ° C (–40 ° F to 140 ° F); <95% (noncondensation) |
| Structure | |
| Casing |
Plastic |
| Dimensions |
71.6 mm × 60.9 mm × 45.9 mm (2.82 "× 2.4" × 1.81 ") |
| Net Weight |
0.09 kg (0.20 lb) |
| Gross Weight |
0.17 kg (0.37 lb) |
Further details
 |
This camera is a QUADRIBRID (4 Integrated Technologies) These cameras are at the same time Analogue , Ahd , HDCVI and HDVI .    |
 |
This camera is suitable for indoor environments. |
 |
This camera features a resolution of 2Megapixel 1080P 1 / 2.7 "CMOS sensor |
 |
This camera features a fixed 2.1mm lens |
 |
Infrared illuminator with 1 LED and approximate maximum range of 3MT |
|
|
OSD (ON SCREEN DISPLAY) allows you to define masked areas, image correction, ATR, Day / Night sensitivity, Shutter speed, White balance, light compensation and much more ... The OSD menu is multi-language and can be managed both via DVR and UTC Controller (not included) |
 |
Integrated microphone |
 |
Allows you to adapt the lens to Night / Day vision
|
 |
BLC (Back Light Compensation) is one of the 3 possible steps in the management of images with contrast, typical situations are (entrances or exits from car parks, plates, special lights, entrances with shots from inside to outside, etc.) light is one of the most complex operations possible, the BLC function allows a discreet adaptation to these situations |
 |
AGC is an integrated signal amplifier that allows viewing even in critical conditions. It is automatic and does not require specific settings. |
 |
2D-NR manages NOIS REDUCTION. Allows still images in low light and in motion. It is currently the most powerful solution for obtaining maximum results in low light conditions. |
 |
D-WDR (Digital Wide Dynamic Range) is the Software solution of the most powerful WDR integrated in the DSP, exactly as it happens for the digital zoom compared to the Optical Zoom, it is a software simulation of emulation of the WDR technology, however extremely useful in circumstances of strong contrast.  |
 |
DC12V power supply NOT included in the package.  |
 |
This product is covered by a 24 month warranty. |
