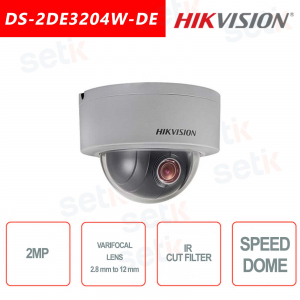

Hikvision Camera for Speed Dome 3-inch 2 MP 4X Network

-35%

Hikvision DS-2DE3204W-DE IP PoE ONVIF Outdoor Camera 2MP Dome Camera, 2.8-12mm Varifocal Lens, 1 / 2.8 "progressive scan CMOS sensor, H.265 + .

IR Cut Filter, Micro SD Slot ( UP 128GB - NOT INCLUDED) , Motion Detection , ROI, DWDR, BLC, 3D DNR, HLC.

Reference: DS-2DE3204W-DE

Brand: Hikvision

EAN: 6941264013136

FIND INSTALLER

https://www.setik.biz/en/cameras/5553-hikvision-ds-2de3204w-de-hikvision-camera-for-speed-dome-3-inch-2-mp-4x-network.html

€475.80

€732.00 -35%

taxes included

ARE YOU A PROFESSIONAL OF THE SECTOR?
REGISTER TO ACCESS YOUR LIST

PRODUCT NOT AVAILABLE, DISCOUNT NOW 3%

CHRISTMAS WEEK 2024 ×

FREE SHIPPING
ON THE ENTIRE CATALOGUE!

1. Reach at least €249
2. Select FEDEX
3. Confirm code NATALE-FREE-E
4. Complete your order.
Shipping will be free of charge!

Until 10 a.m. on 27/12/2024
Code NOT combinable with other actives

Description Product Details Data Sheet Further Details Download

DS-2DE3204W-DE | HIKVISION IP POE ONVIF® 2.8MM-12MM OUTDOOR CAMERA 2MP ICR DOME CAMERA

Hikvision IP ONVIF® outdoor SPEED DOME camera
Resolution: 2.0 MP 2MP 2Megapixel - Varifocal lens 2.8 mm to 12 mm - 1 / 2.8 "progressive scan CMOS sensor - H.265 +
ICR- DWDR - AGC -BLC - 3D DNR - Motion Detection - AUDIO EXCEPTION
Power supply NOT included - 128GB MicroSD slot (not included) - 24 month warranty

Hikvision IP cameras are characterized by highly professional products with different types of housing, resolution up to 4k, video compression H.265 + and IR up to 80m with EXIR technology. Over the years, Hikvision has launched various series of IP cameras, including the EASY IP SERIES , born from version 1.0, up to version 4.0. The following are the main features of the most significant EASY IP SERIES.

DarkFighter Technology:
Darkfighter technology allows color shooting even with very low brightness, thus avoiding switching to black and white vision. A benefit of no small importance for the Local Police, often called upon to "decipher" images that are not very clear and in black and white.

ONVIF®:
Onvif, the absolute standard for IP cameras. Being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera for its own sake that can never be used together with recording systems.

POE (Power Over Ethernet):
The advantage of a PoE camera is obvious, it allows it to be powered with the same cable with which it communicates without bringing additional power cables and without having to install a separate power supply system, a PoE camera guarantees constant voltages and simple installation.

Resolution:
This camera features 2.0MP 2MP 2Megapixel resolution in real time! (1920 x 1080)
1/3 ”4Megapixel progressive scan CMOS image sensor

Optics:
This camera features 2.8 mm to 12 mm Varifocal lens

Compression H.265 +

What is H.265 +?

A self-developed intelligent algorithm by Hikvision that can greatly reduce the video bitrate based on a standard H.265 codec. Hikvision's H.265 + reduces transmission bandwidth and required storage capacity without impacting video quality, thanks to three key technologies: prediction encoding, noise suppression and flexible bit rate control. Optimized for multiple surveillance scenarios, it allows for greater use of ultra HD surveillance cameras, such as 8MP and 12MP cameras.

HIK-CONNECT

Hik Connect allows you to control the device remotely

ROI (Region Of Interest):
The images deriving from IP cameras are “compressed”, consequently the quality is set during the recording phase. Especially on cameras with a very high resolution, it is often necessary to reduce the quality in order to guarantee a reduced bandwidth occupation and record a greater number of days or cameras.
The ROI allows you to define areas where you can set a higher quality (for example a door, the area where the plate usually passes, an exit, etc.). In that area I can set a higher quality thus guaranteeing me a greater definition of the image.
Ultra Smart Funzione ROI

Day / Night:
Allows you to adapt the lens to night / day vision, and the relative automatic management of the IR illuminator, when present.

IR CUT FILTER (ICR):
Mechanical filter that allows correct viewing of images in daytime viewing conditions. It filters the typical infrared frequencies thus improving the image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.
Immagine esempio IR CUT FILTER

MICRO SD SLOT:

128GB Micro SD slot ( NOT INCLUDED )

BLC (Back Light Compensation):
is one of the 3 possible steps in the management of images with contrast, typical situations are (entrances or exits from car parks, plates, special lights, entrances with shots from inside to outside, etc.) light compensation is one of the most complex possible, the BLC function allows a fair adaptation to these situations

Click to enlarge

AGC (Automatic Gain Control):
integrated signal amplifier that allows viewing even in critical conditions. It is automatic and does not require specific settings.

D-WDR (Digital Wide Dynamic Range):
Software solution of the more powerful WDR integrated in the DSP, exactly as it happens for the digital zoom compared to the Optical Zoom, it is a software simulation of emulation of the WDR technology, however extremely useful in circumstances of strong contrast.

3D- DNR:
More advanced version of the NOISE REDUCTION management. It allows still images in both low light and movement. Currently the most powerful solution for obtaining maximum results in low light conditions.

Supply:
A 12V DC power supply is required for the operation of this camera (not included)

IP66 protection:
Protection from dust and temporary immersions. Suitable for outdoor environments.

Data sheet

DS-2DE3204W-DE
Camera Module
Image Sensor	1 / 2.8 "progressive scan CMOS
Min Illumination	Color: 0.05 Lux @ (F1.5, AGC ON) B / W: 0.01 Lux @ (F1.5, AGC ON)
White Balance	Auto / Manual / ATW (Auto-tracking White Balance) / Indoor / Outdoor / Fluorescent Lamp / Sodium Lamp
Gain	Auto / Manual
Shutter Time	1 to 1 / 30,000 s
Day & Night	IR Cut Filter
Digital Zoom	16 ×
Privacy Mask	8 programmable privacy masks
Focus Mode	Auto / Semi-automatic / Manual
DWDR	Yes
Lens
Focal Length	2.8 mm to 12 mm, 4 × optical zoom
Zoom Speed	Approx. 2 s (optical lens, wide-tele)
Field of View	Horizontal field of view: 100.5 ° to 32.6 ° (wide-tele) Vertical field of view: 52.8 ° to 18.3 ° (wide-tele) Diagonal field of view: 120.2 ° to 37.5 ° (wide-tele)
Aperture Range	F1.5 to F2.7
PTZ
Movement Range (Pan)	0 ° to 350 °
Pan Speed	Configurable, from 0.1 ° / s to 60 ° / s. Preset Speed: 60 ° / s
Movement Range (Tilt)	0 ° to 90 °
Tilt Speed	Configurable, from 0.1 ° / s to 50 ° / s. Preset Speed: 50 ° / s
Presets	300
Patrol Scan	8 patrols, up to 32 presets for each patrol
Park Action	Preset / Patrol Scan
Scheduled Task	Preset / Reboot / Patrol Scan / Dome Adjust / Aux output
Compression Standard
Image Compression	H.265 + / H.265 / H.264 + / H.264 / MJPEG
Audio Compression	G.711alaw / G.711ulaw / G.726 / MP2L2 / PCM
Smart Feature
Smart Event	Intrusion Detection, Line Crossing Detection, Audio Exception Detection
Basic Event	Motion Detection, Video Tampering Detection, Exception
ROI	Support 4 areas with adjustable levels
Max. Resolution	1920 × 1080
Main Stream	50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720), 50fps (1280 × 960, 1280 × 720) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720), 30fps (1280 × 960, 1280 × 720)
Sub-stream	50Hz: 25fps (704 × 576, 640 × 480, 320 × 288) 60Hz: 30fps (704 × 480, 640 × 480, 320 × 240)
Third Stream	50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480, 320 × 288) 60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480, 320 × 240)
Image Enhancement	3D DNR / HLC / BLC
Network
Network Storage	Support up to 128GB Micro SD / SDHC / SDXC card. Support Edge recording
Alarm Linkage	Alarm actions, such as Preset, Trigger Recording, Alarm Output, Notify Surveillance Center, Upload to FTP, Send Email
Protocols	IPv4 / IPv6, HTTP, HTTPS, 802.1X, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
API	ONVIF® (Profile S, Profile G, Profile T), ISAPI, SDK
Simultaneous Live View	Up to 20 users
User / Host	Up to 32 users. 3 user levels, administrator, operator and user
Security Measures	User authentication (ID and PW); Host authentication (MAC address); IP address filtering
Web Browser	IE 8 to 11, Chrome 31.0+, Firefox 30.0+, Edge 16.16299+
Interface
Audio Interface	1-ch audio input (Mic / Line in), 2.0 to 2.4V [pp]; output impedance: 1KΩ, ± 10% 1-ch audio output, Line level, impedance: 600Ω
Alarm Interface	1-ch alarm input and 1-ch alarm output
Network Interface	10Base-T / 100Base-TX, RJ45 connector
RS-485	Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive
General
Language (Web Browser Access)	32 languages. English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
Power	12 VDC, 1.0 A, Max.8W and PoE (802.3af), 36 to 57 VDC, 0.35 A, Class 3
Working Environment	Temperature: -30 ° C to 65 ° C (-22 ° F to 149 ° F), humidity: ≤ 90%
Protection Level	IP66, IK10, 4000V Lightning Protection, Surge Protection, Voltage Transient Protection
Certification	FCC, CE, UL, RoHS, IEC / EN 61000, IEC / EN 55022, IEC / EN 55024, IEC / EN60950-1
Dimension	Φ 140.7 mm × 107.2 mm (Φ 5.5 "× 4.2")
Weight	Approx. 0.95 kg (2.1 lb.)
