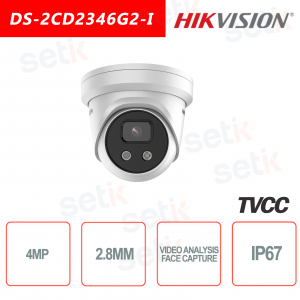

Hikvision IP PoE IR H.265 camera + 4MP Turret Camera

-35%

Hikvision DS-2CD2346G2-I IP PoE ONVIF Outdoor Camera 4MP Fixed Turret, 2.8mm Fixed Lens, 1 / 2.7 "CMOS Sensor, H.265 +. Day & Night (ICR), 30M IR Illuminator, Triple Stream, Video Analysis , Face Detection , WDR 120dB , ROI, BLC, HLC, 3D DNR, AGC, MicroSD slot 256GB max. (NOT INCLUDED) , ANR, Motion Detection, Hik-Connect access, reset button, IP67 protection, metal.

Reference: DS-2CD2346G2-I

Brand: Hikvision

EAN: 6941264083788

FIND INSTALLER

https://www.setik.biz/en/cameras/4769-hikvision-ds-2cd2346g2-i-hikvision-ip-poe-ir-h265-camera-4mp-turret-camera.html

€237.90

€366.00 -35%

taxes included

ARE YOU A PROFESSIONAL OF THE SECTOR?
REGISTER TO ACCESS YOUR LIST

Quantity

Hurry up! Only a few pieces left in our warehouse!

discover the available quantity

Description Product Details Data Sheet Further Details Download

DS-2CD2346G2-I | HIKVISION IP POE 4.0 MP 2.8MM OUTDOOR CAMERA ONVIF® H.265 + IR 30 METERS TURRET

Hikvision IP PoE Bullet Camera
Resolution: 4MP 4Megapixel - 2.8mm fixed lens - 1 / 2.7 "CMOS sensor - H.265 +
30M IR Illuminator - Day / Night (ICR) - WDR 120dB - Video Analysis - Face Detection -
Power supply NOT included - MicroSD slot - 24 months warranty

Hikvision IP cameras are characterized by highly professional products with different types of housing, resolution up to 4k, video compression H.265 + and IR up to 80m with EXIR technology. Over the years, Hikvision has launched various series of IP cameras, including the EASY IP SERIES , born from version 1.0, up to version 4.0. The following are the main features of the most significant EASY IP SERIES.

ONVIF®:

Onvif, the absolute standard for IP cameras. Being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera for its own sake that can never be used together with recording systems.

POE (Power Over Ethernet):
The advantage of a PoE camera is obvious, it allows it to be powered with the same cable with which it communicates without bringing additional power cables and without having to install a separate power supply system, a PoE camera guarantees constant voltages and simple installation

Resolution:
This camera features a resolution of 4MP (2592 x 1944 pixels)
1 / 2.7 ”4Megapixel progressive scan CMOS image sensor

Optics:
This camera features 2.8mm fixed lens

Compression H.265 +

What is H.265 +?

A self-developed intelligent algorithm by Hikvision that can greatly reduce the video bitrate based on a standard H.265 codec. Hikvision's H.265 + reduces transmission bandwidth and required storage capacity without impacting video quality, thanks to three key technologies: prediction encoding, noise suppression and flexible bit rate control. Optimized for multiple surveillance scenarios, it allows for greater use of ultra HD surveillance cameras, such as 8MP and 12MP cameras.

IR Infrared Illuminator:
IR Infrared illuminator for better night vision. Range up to 30M

Smart Feature-set - Video Analysis:
This camera has intelligent smart functions on board

Behavior Analysis:
- Line crossing detection
- Intrusion
- Unattended baggage
- Objects removed

Face Detection
Video Analisi - Rilevamento Volto

WDR 120dB (Wide Dynamic Range):
WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light / shadow contrast. Fundamental in the case of shots from the inside out, license plates, shaded spots or all situations where there is no homogeneity of light. The higher the db value, the greater the camera's ability to manage the strong difference in the backlight present. Common WDRs usually reach 80db, the human eye is able to recognize a difference of up to 100db. This model reaches up to 120db managing very strong contrast levels.

Immagine esempio funzione WDR 120db

ROI (Region Of Interest):
The images deriving from IP cameras are “compressed”, consequently the quality is set during the recording phase. Especially on cameras with a very high resolution, it is often necessary to reduce the quality in order to guarantee a reduced bandwidth occupation and record a greater number of days or cameras.
The ROI allows you to define areas where you can set a higher quality (for example a door, the area where the plate usually passes, an exit, etc.). In that area I can set a higher quality thus guaranteeing me a greater definition of the image.
Ultra Smart Funzione ROI

Day / Night:
Allows you to adapt the lens to night / day vision, and the relative automatic management of the IR illuminator, when present.

IR CUT FILTER (ICR):
Mechanical filter that allows correct viewing of images in daytime viewing conditions. It filters the typical infrared frequencies thus improving the image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.
Immagine esempio IR CUT FILTER

BLC (Back Light Compensation):
is one of the 3 possible steps in the management of images with contrast, typical situations are (entrances or exits from car parks, plates, special lights, entrances with shots from inside to outside, etc.) light compensation is one of the most complex possible, the BLC function allows a fair adaptation to these situations

Click to enlarge

AGC (Automatic Gain Control):
integrated signal amplifier that allows viewing even in critical conditions. It is automatic and does not require specific settings.

ULTRA WDR up to 120dB
WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light / shadow contrast. Fundamental in the case of shots from the inside out, license plates, shaded spots or all situations where there is no homogeneity of light.

3D- DNR:
More advanced version of the NOISE REDUCTION management. It allows still images in both low light and movement. Currently the most powerful solution for obtaining maximum results in low light conditions.

MicroSD slot:
Present slot microsd / sdhc / sdxc up to 256GB - [ NOT INCLUDED]

Supply:
A 12V DC power supply is required for the operation of this camera (not included)

Data sheet

DS-2CD2346G2-I
Room
Image Sensor	1 / 2.7 "Progressive Scan CMOS
Min Illumination	Color: 0.002 Lux @ (F1.4, AGC ON)
Shutter Speed	1/3 s to 1 / 100,000 s
Day & Night	ICR Cut
Slow Shutter	Yes
Angle Adjustment	Pan: 0 ° to 360 °, tilt: 0 ° to 75 °, rotate: 0 ° to 360 °
P / N	P / N
Wide Dynamic Range	120 dB
Lens
Lens Type & FOV	horizontal FOV 103 °, vertical FOV 55 °, diagonal FOV 123 °
Openings	F1.4
Lens Mount	M12
Aperture Type	Fixed
Illuminator
IR Range	up to 30 m
Wavelength	850 nm
Smart Supplement Light	Yes
Supplement Light	IR
Video
Max. Resolution	2592 x 1944
Main Stream	50Hz: 20fps (2592 × 1944) 25fps (2688 × 1520, 2304 × 1296, 1920 × 1080, 1280 × 720) 60Hz: 20fps (2944 × 1656) 30fps (2688 × 1520, 2304 × 1296, 1920 × 1080, 1280 × 720)
Sub Stream	50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Third Stream	50Hz: 25fps (1280 × 720, 640 × 480, 640 × 360, 360 × 240) 60Hz: 30fps (1280 × 720, 640 × 480, 640 × 360, 360 × 240)
Video Compression	Main stream: H.265 / H.264 Sub-stream: H.265 / H.264 / MJPEG Third stream: H.265 / H.264
Video Bit Rate	32 Kbps to 8 Mbps
H.264 Type	Baseline Profile / Main Profile / High Profile
H.265 Type	Main Profile
H.264 +	Main Stream supports
H.265 +	Main Stream supports
Bit Rate Control	CBR / VBR
Scalable Video Coding (SVC)	Yes
Region of Interest (ROI)	1 fixed regions for each stream
Network
Simultaneous Live View	Up to 6 channels
API	ONVIF® (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
Protocols	TCP / IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL / TLS
Smooth Streaming	Yes
User / Host	Up to 32 users. 3 user levels: administrator, operator and user
Security	Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP / HTTPS, TLS 1.2, WSSE and digest authentication for ONVIF®
Network Storage	microSD / SDHC / SDXC card (256 GB) local storage, and NAS (NFS, SMB / CIFS), auto network replenishment (ANR) Together with high-end Hikvision memory card, memory card encryption and health detection are supported
Client	iVMS-4200, Hik-Connect, Hik-Central
Web Browser	Plug-in required live view: IE8 +, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11 Free live view plug-in: Chrome 57.0+, Firefox 52.0+
Day / Night Switch	Day, Night, Auto, Schedule
Image Enhancement	BLC, HLC, 3D DNR
Image Parameters Switch	Yes
Image Settings	Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
Interface
On-board Storage	Built-in micro SD slot, up to 256GB
Hardware Reset	Yes
Communication Interface	1 RJ45 10M / 100M self-adaptive Ethernet port
Intelligent (Traditional Algorithm)
Basic Event	Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error), scene change detection
Intelligent (Deep Learning Algorithm)
Face Capture	Yes
Premier Protection	Line crossing detection, intrusion detection, region entrance detection, region exiting detection
General
Storage Conditions	-30 ° C to 60 ° C (-22 ° F to 140 ° F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions	-30 ° C to 60 ° C (-22 ° F to 140 ° F). Humidity 95% or less (non-condensing)
Power Supply	12 VDC ± 25%, reverse polarity protection PoE: 802.3af, class 3
Power Consumption and Current	12 VDC, 0.48 A, max. 5.8 W PoE: (802.3af, 36 V to 57 V), 0.19 A to 0.12 A, max. 6.8 W
Power Interface	Ø 5.5 mm coaxial power plug
Material	Metal except for trim ring
Dimension room	Ø 138.3 × 126.3 mm (5.4 "× 5.0")
Package Dimension	170 × 170 × 150 mm (6.7 "× 6.7" × 5.9 ")
Camera Weight	770 g (1.7 lb.)
With Package Weight	1073 g (2.4 lb.)
Linkage Method	Upload to NAS / memory card, notify surveillance center, trigger record, trigger capture, strobe light, audible warning * Note: External device is required.
Web Client Language	32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
General Function	Anti-flicker, heartbeat, mirror, privacy masks, flash log, password reset via e-mail, pixel counter
Software Reset	Yes
Approval
EMC	FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 + A1: 2014); RCM (AS / NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
Safety	UL (UL 60950-1); CB (IEC 60950-1: 2005 + Am 1: 2009 + Am 2: 2013); CE-LVD (EN 60950-1: 2005 + Am 1: 2009 + Am 2: 2013); BIS (IS 13252 (Part1): 2010 + A1: 2013 + A2: 2015); LOA (IEC / EN 60950-1)
Environment	CE-RoHS (2011/65 / EU); WEEE (2012/19 / EU); Reach (Regulation (EC) No 1907/2006)
Protection	Ingression protection: IP67 (IEC 60529-2013)
