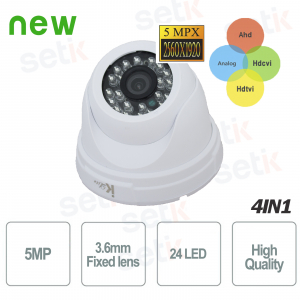

DMHYB5M36IRW Outdoor dome camera for "AHD - HDTVI - HDCVI - ANALOG " quad-hybrid video surveillance, with 5MP resolution, 1/3 "sensor and 3.6mm fixed lens. IR illuminator 24 LED 20 MT, Day / Night (ICR), OSD menu .
discover the available quantity
4IN1 DOME CAMERA "AHD / TVI / CVI / ANALOG" - 5MEGAPIXEL 3.6MM - SETIK
Outdoor Hybrid Dome Camera - Setik 4 Technologies in 1 "AHD / TVI / CVI / ANALOG" - Resolution up to 5Megapixel
3.6mm fixed lens - Day / Night (ICR), AGC - IR illuminator with 24 LEDs and 20M range
OSD menu - 12V DC power supply not included - 24 Months Warranty
Product details
- Outdoor Hybrid Dome Camera - Setik
- 4 Technologies in 1: Ahd / Tvi / Cvi / Analog
- Resolution up to 5 Megapixel! (CVI 4MP)
- 1/3 "image sensor
- 3.6mm fixed lens
- Switchable technologies via OSD Menu
- High Speed, remote real-time transmissions
- Day / Night (ICR), AGC
- Quality IR illuminator with 18 SMD Leds for better night vision (30mt)
- IP66 protection (rain / dust)
- Suitable for indoor / outdoor environments
- 12V DC power supply (not included)
- 24 months warranty
Data sheet
| Model | DMHYB5M36IRW |
| Room | |
| Image Sensor | 1/3 "sensor |
| Signal System | PAL / NTSC |
| Image resolution | 1280 * 720/1280 * 960/1920 * 1080 |
|
Effective Pixels |
5MP |
| Video Out |
1.0Vp-p Composite Signal (75ohm) |
| Minimum illuminator |
0Lux (Infrared Light Open) |
| Gama adjust | 0.45 |
| Electric Shutter | PAL: 1 / 50s-1 / 100000s |
| S / N Ratio | 58dB (min) (AGC closed) |
| lens | 3.6mm |
| DNR | Yes |
| AWB |
CAR |
| AGC | CAR |
| BLC | ON / OFF |
| Mirror | Yes |
| Motion detection | 4 areas optional |
| Privacy Zone |
8 optional area |
| D-zoom |
5 level |
| Day / Night |
Auto, ext |
| OSD |
yes |
| Power input |
DC12V + 1V |
| Power Dissipation |
85mA |
| Operation Temperature |
temperatures -10 + 75, Humidity less than 85% RH |
| Waterproof level |
ip65 / Ip66 |
| Video output |
1.0Vp + p.75 |
Further details
 |
This camera is a QUADRIBRID (4 Integrated Technologies) These cameras are at the same time, Ahd / Hdtvi / Hdcvi / Analog .    |
 |
This camera has a resolution of 5 Megapixels! (CVI 4MP)  |
 |
This camera features a fixed 3.6mm lens
|
 |
This camera is equipped with 24 IR LEDs and a maximum illumination range of 20 meters! |
 |
This camera is equipped with OSD Menu from which to switch technologies (AHD / TVI / CVI / ANALOG).
|
 |
It allows to adapt the lens to the night / day vision and the consequent management of the IR illuminator automatically. |
 |
The IR CUT FILTER is a mechanical filter that allows a correct visualization of the images in daylight viewing conditions, filtering the typical infrared frequencies. This improves the image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies. |
 |
AGC is an integrated signal amplifier that allows viewing even in critical conditions. It is automatic and does not require specific settings. |
 |
IP66: Guarantees the impossibility for dust to enter the camera and protection from jets of water of any kind (rain) |
 |
12V DC power supply not included
|
 |
This product is covered by a 24 month warranty. |
Download
Download the English Brochure (Available soon)
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification
